Pfaff 1571 - Cutting Stroke Adjustment (Models 1574;1591)

13 - 36
Adjustment
61-052
13.05.06 Cutting stroke on models 1574 and 1591
Requirement

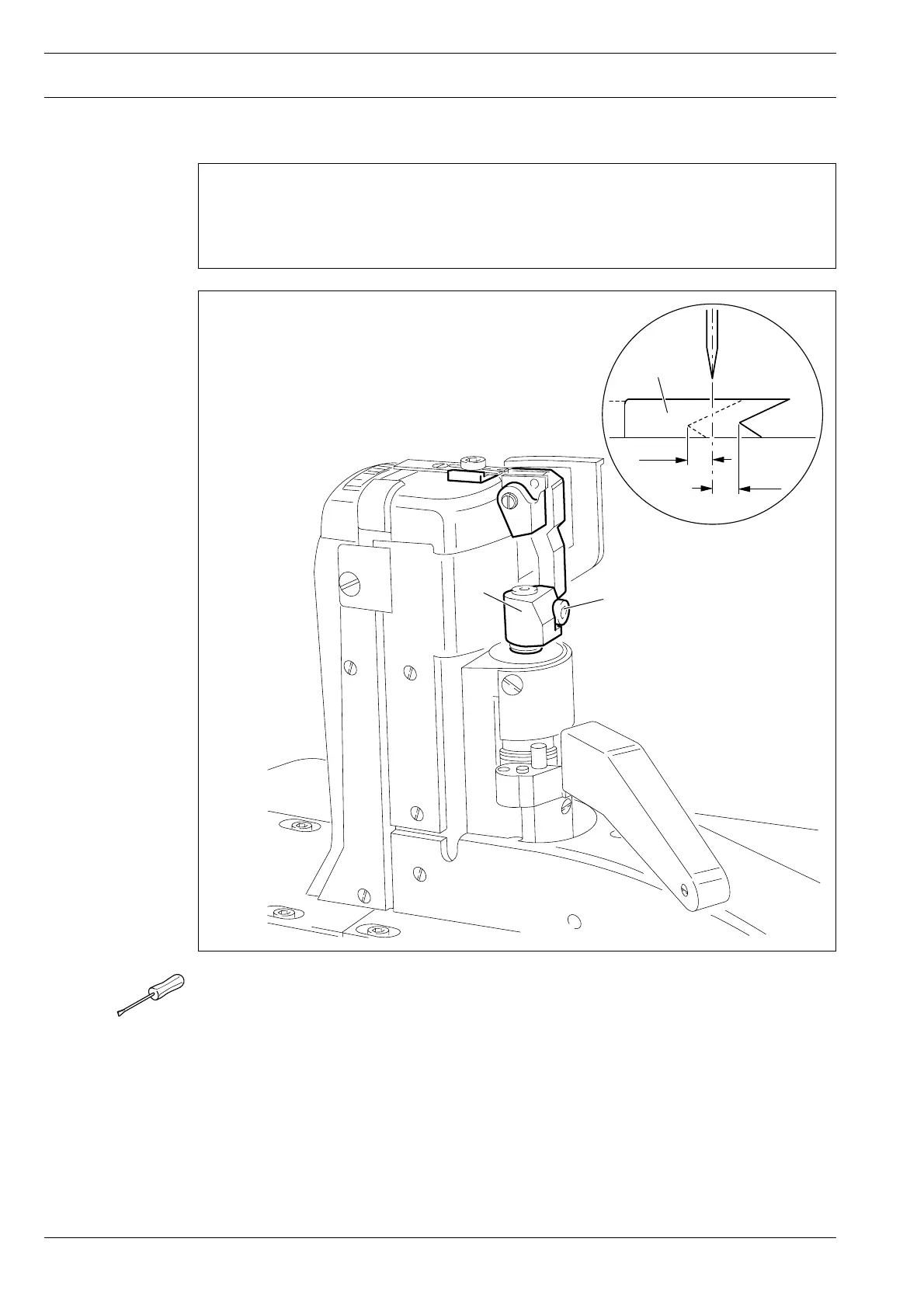

When the edge trimmer is engaged and the needle is in the needle hole, the stroke of
knife 3 should be half in front of and half behind the needle, when the motor shaft is
turned by hand.
1
2
3
½
½
Fig. 13 - 32
● Switch off the machine and engage the edge trimmer.
● Adjust knife holder 1 (screw 2) according to the requirement.
