Pfaff 1571 - Cutting Stroke Adjustment (Model 1571)

13 - 35
Adjustment
13.05.05 Cutting stroke on model 1571
Requirement
When the edge trimmer is engaged and the needle is in the needle hole, the stroke of
knife 1 should be half in front of and half behind the needle, when the motor shaft is
turned by hand.
● Switch off the machine and engage the edge trimmer.
● Adjust knife 1 (screw 2) according to the requirement.

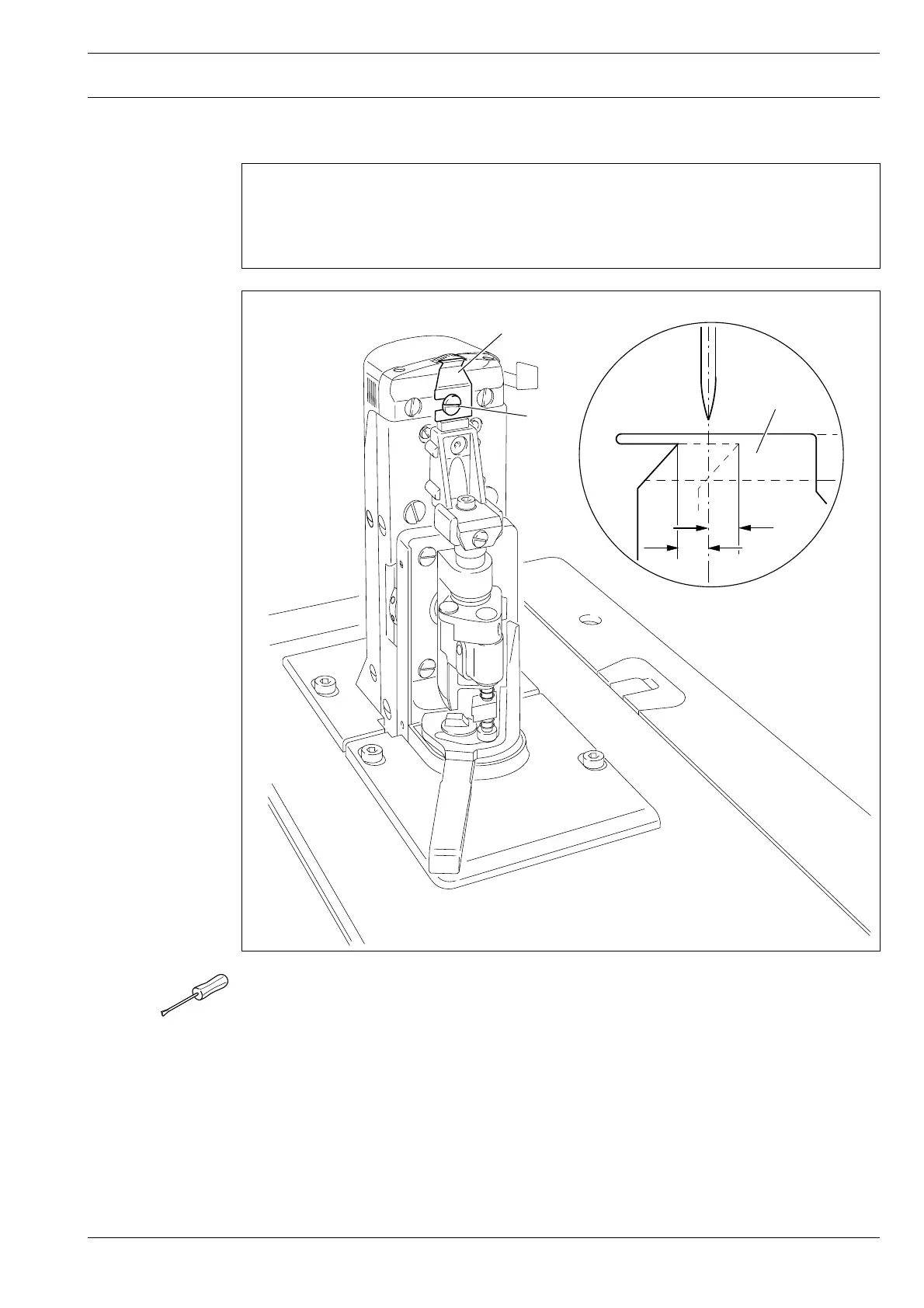

Fig. 13 - 31
1
2
1
½
½
