Pfaff 1571 - Linkage Rod Adjustment (PFAFF 1574)

13 - 50
Adjustment
13.07.08 Linkage rod (only for the PFAFF 1574)
Requirement
When the thread trimmer is in its resting position, the drive levers 1 must be parallel.
● Adjust drive levers 1 (screws 2) in accordance with the requirement.

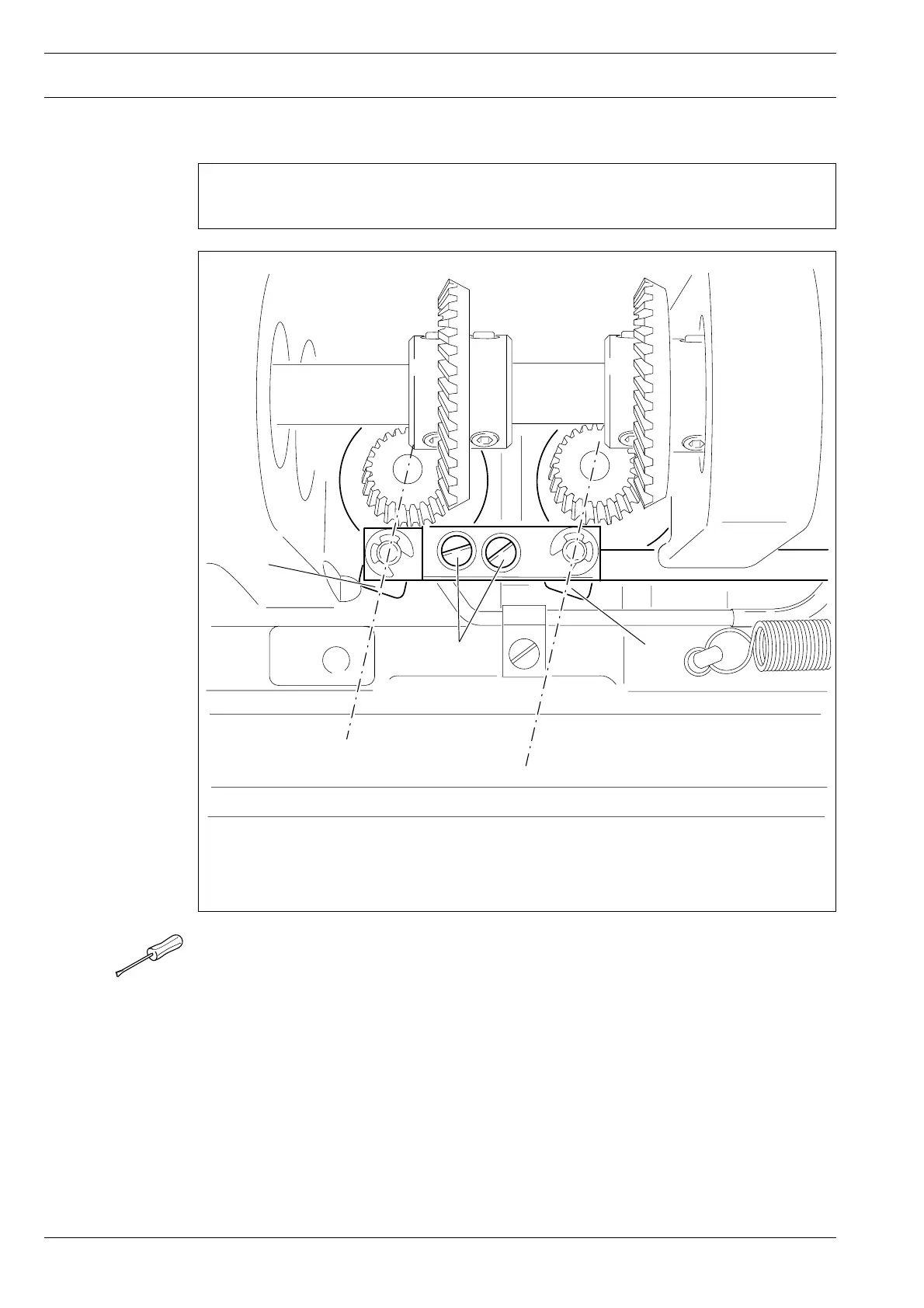

Fig. 13 - 46
1
1
2
