12 - 1
Care and maintenance
86-005

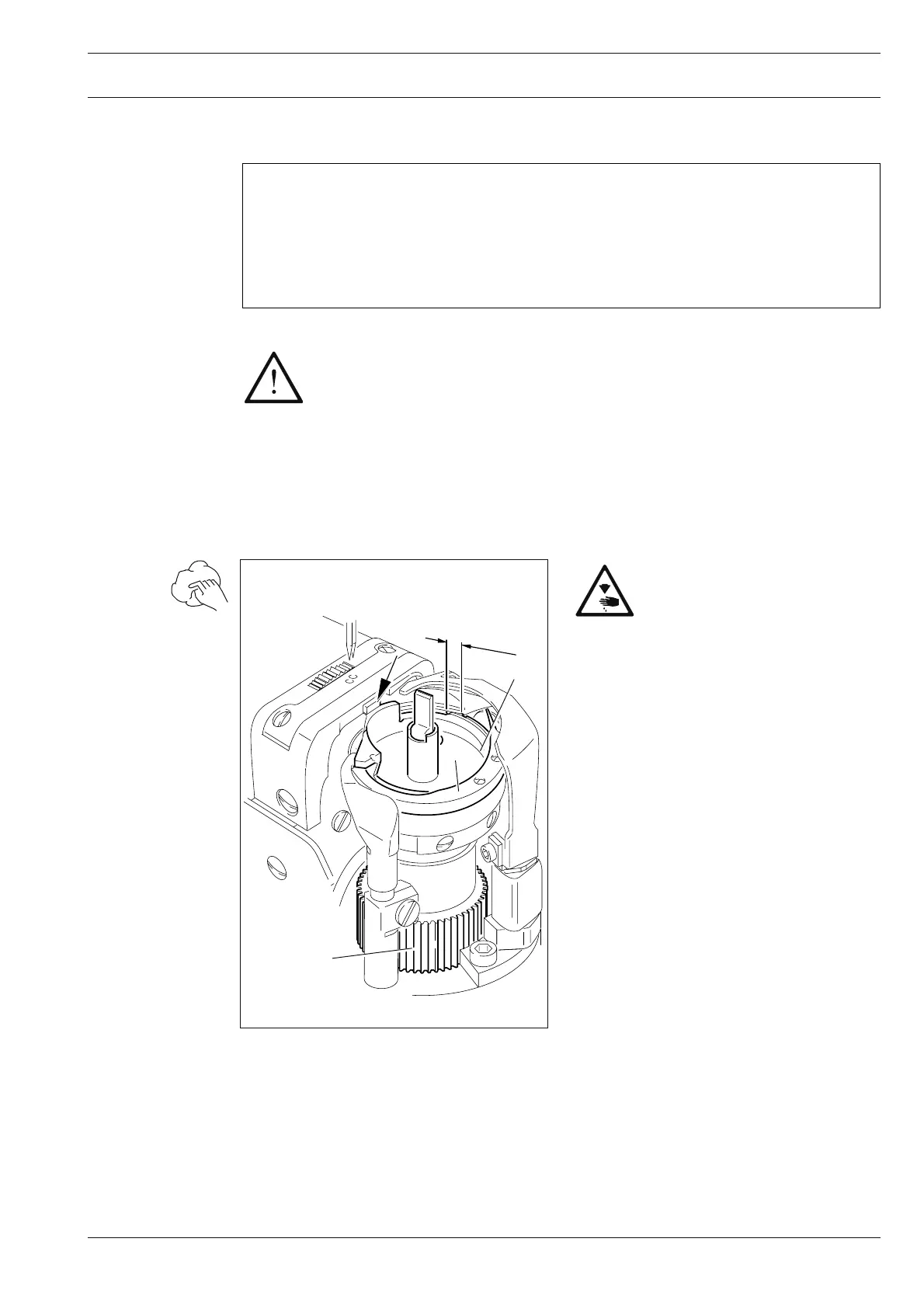

Fig. 12 - 01
2
1
5 mm
3
These maintenance intervals are calculated for the average running time of a
single shift operation. If the machine is operated more than this, shorter
intervals are recommended.
12.01 Cleaning
Clean the hook, hook compartment and toothed wheel 3 daily, several times if in continuous
use.
Switch the machine off!
Danger of injury if the machine
is started accidentally!
Bring the needle bar to its highest
position.
Open the post cap and remove the bob-
bin case cap and the bobbin.
Unscrew hook gib 1.
Turn the handwheel until the point of
bobbin case 2 penetrates into the groove
of the hook race approx. 5 mm.
Remove bobbin case 2.
Clean the hook race with paraffin.
When inserting the bobbin case 2,
ensure that the horn of the bobbin
case 2 engages in the groove of the
needle plate.
Screw hook gib 1 back.
Insert bobbin case with the bobbin and
close the post cap
12 Care and maintenance
Cleaning ..................................................... daily, several times if in continuous operation
Oil level ( hook and needle head parts).................................................... daily, before use
Lubricating the hook................................................................................ daily, before use
Greasing the bevel gears ................................................................................ once a year
