13 - 42
Adjustment
61
-
057
13
.06.05
Knife stroke
Requirement
The knife stroke can be adjusted over a range from
1.0
to
3.5 mm
, allowing the best
possible adaption to all materials used.

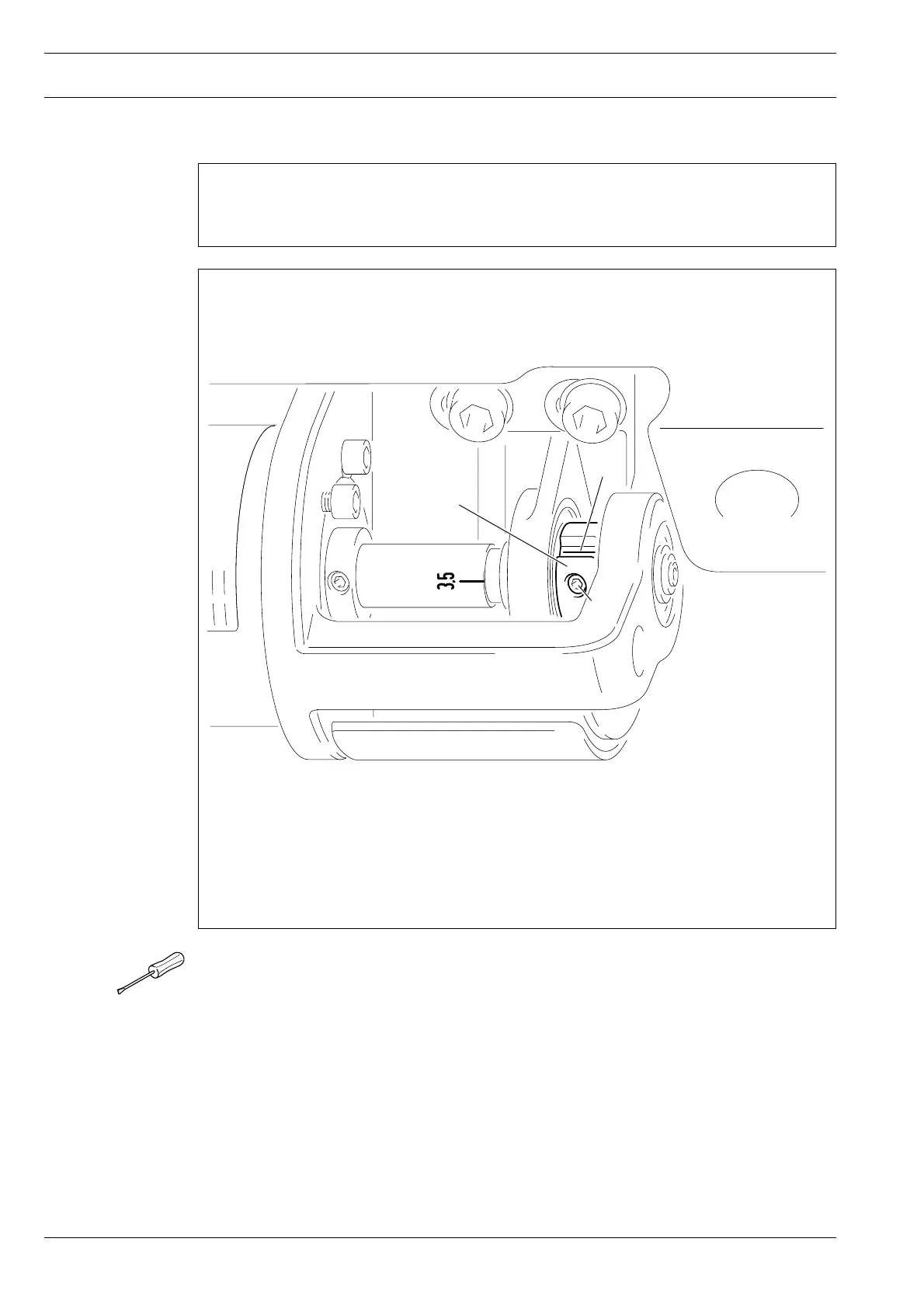

Fig. 13 - 38
●
Turn eccentric
1
(screws
2
) on the back of the sewing head so that the marking of the
desired cutting stroke is opposite marking
3
.
2
1
3
117
119
Table of Contents
Table of Contents
3
Safety
7
Directives
7
General Notes on Safety
7
Safety Symbols
8
Important Points for the User
8
Operating and Specialist Personnel
9
Operating Personnel
9
Specialist Personnel
9
Danger
10
Proper Use
11
Specifications
12
Pfaff 1571, 1574, 1591
12
Needles and Threads
13
Possible Models and Subclasses
13
Disposal of Machine
14
Transportation, Packing and Storage
15
Transportation to Customer's Premises
15
Transportation Inside the Customer's Premises
15
Disposal of Packing Materials
15
Storage
15
Explanation of Symbols
16
Controls
17
Main Switch
17
Keys on the Machine Head
17
Bobbin Thread Monitoring with Stitch Counting
18
Pedal
18
Knee Switch
19
Knee Lever
19
Lever for Raising the Roller Presser
20
Swing out Roller Presser
20
Edge Trimmer -725/04 for 1571
21
Edge Trimmer -725/04 for PFAFF 1574 and 1591
22
Edge Trimmer -726/05 for PFAFF 1591
23
Control Panel
24
Displays on the Screen
24
Function Keys
24
Adjusting the Table Height
27
Installation and Commissioning
27
Installation
27
Fitting the Tilt Lock
28
Fitting the Machine Cover
28
Mounting the Flange Motor
29
Mounting the Flange Motor to the Bearing Plate
29
Mounting the Flange Motor to the Machine
29
Connecting the Plug-In Connections and Earth Cables
30
Mounting the Toothed Belt / Basic Position of the Machine Drive Unit on the 1571 and 1591
31
Mounting the Toothed Belt / Basic Position of the Machine Drive Unit on the 1574
33
Mounting the Belt Guard of the Flange Motor
35
Connecting the Safety Switch
36
Checking the Function of the Start Inhibitor
36
Tilted Work Base
37
Table Top Cutout
38
Fitting the Reel Stand
39
Commissioning
39
Switching the Machine On/Off
39
Setting up
40
Inserting the Needle on Model PFAFF 1571 and 1591
40
Inserting the Needle on Model 1574
40
Winding the Bobbin Thread; Adjusting the Primary Thread Tension
41
Removing/Inserting the Bobbin Case
42
Threading the Bobbin Case/Adjusting the Bobbin Thread Tension
42
Threading the Needle Thread and Regulating Its Tension on
43
Model 1571 and 1591
43
Threading the Needle Thread and Regulating Its Tension on Model 1574
44
Entering the Stitch Length
45
Entering the Standard Stitch Length
45
Entering a Second Stitch Length or Amount of Fullness
45
Entering the Start and End Backtacks
46
Entering/Changing the Code Number
47
Setting the Stitch Count Function for Bobbin Thread Control
49
Sewing
50
Manual Sewing
50
Programmed Sewing
51
Program Interruption
52
Error Messages
53
Input
54
Summary of the Functions in the Input Mode
54
Summary of the Parameter Functions
54
Summary of the Seam Program Inputs
55
Seam Program Input Variants
57
Altering Existing Seam Programs
58
Deleting Seam Programs
61
Seam Programming Examples
62
An Example for Seam Program Input
62
Seam Input Example Using the Teach in Method
69
Care and Maintenance
73
Cleaning
73
Oiling the Hook
74
Checking the Oil Levels
74
Filling the Oil Reservoir of the Thread Lubrication Unit
75
Oiling the Edge Trimmer -726/05
75
Lubricating the Bevel Gears
76
Adjustment
77
Notes on Adjustment
77
Tools, Gauges and Other Accessories
77
Abbreviations
77
Adjusting the Basic Machine
78
Needle Position in the Direction of Sewing on the PFAFF 1571 and 1591
78
Positioning the Needle in the Direction of Sewing PFAFF 1574
79
Limiting the Needle Bar Frame on the PFAFF 1591 and 1571
80
Preadjusting the Needle Height
81
Needle Rise, Hook Clearance, Needle Height and Needle Guard on the PFAFF 1571
82
Needle Rise, Hook Clearance, Needle Height and Needle Guard on the PFAFF 1574
84
Needle Rise, Hook Clearance, Needle Height and Needle Guard on the PFAFF 1591
86
Needle Position Crosswise to Sewing Direction on the PFAFF 1571
88
Needle Position Crosswise to Sewing Direction on the PFAFF 1574
89
Needle Position Crosswise to Sewing Direction on the PFAFF 1591
90
Height and Stroke of the Bobbin Case Opener
91
Height of the Feed Wheel on the PFAFF 1571
92
Height of the Feed Wheel on the PFAFF 1574
93
Height of the Feed Wheel on the PFAFF 1591
94
Clearance between Roller Presser and Feed Wheel
95
Roller-Presser
96
Retainer (Only on the PFAFF 1574)
97
Automatic Presser-Foot Lifter
98
Knee Lever
99
Tension Release
100
Thread Check Spring (PFAFF 1571 and 1591)
101
Thread Check Springs (PFAFF 1574)
102
Bobbin Winder
103
Roller-Presser Pressure
104
Lubrication
105
Re-Engage Safety Coupling
106
Adjusting the Edge Trimmer -725/04
107
Position of the Knife Holder on Model 1571
107
Position of the Knife Holder on Models 1574 and 1591
108
Knife Stroke on Model 1571
109
Knife Stroke on Models 1574 and 1591
110
Cutting Stroke on Model 1571
111
Cutting Stroke on Models 1574 and 1591
112
Knife Position
113
Adjusting the Thread Trimmer -726/05 on Model 1591
114
Position of the Knife to the Needle Plate
114
Knife Position Crosswise to Sewing Direction
115
Knife Height
116
Cutting Stroke
117
Knife Stroke
118
Adjusting the Thread Trimmer -900/81
119
Resting Position of the Roller Lever / Radial Position of the Control Cam
119
Position of the Thread Catcher Holder
120
Distance between Thread Catcher and Needle Plate
121
Position of the Thread Catcher
122
Knife Position and Knife Pressure
123
Bobbin Thread Retaining Spring
124
Manual Cutting Test
125
Linkage Rod (Only for the PFAFF 1574)
126
Parameter Settings
127
Parameter Input Example
127
List of Parameters
128
Explanation of the Error Messages
131
Warning Messages
131
Carrying out a Cold Start
132
Internet Update of the Machine Software
133
Wearing Parts
134
Circuit Diagrams
136
