Pfaff 1571 - Mounting the Belt Guard of the Flange Motor

8 - 9
Installation and commissioning
77 014
8.02.06 Mounting the belt guard of the flange motor
● Attach belt guard 1 with screws 2 and 3.

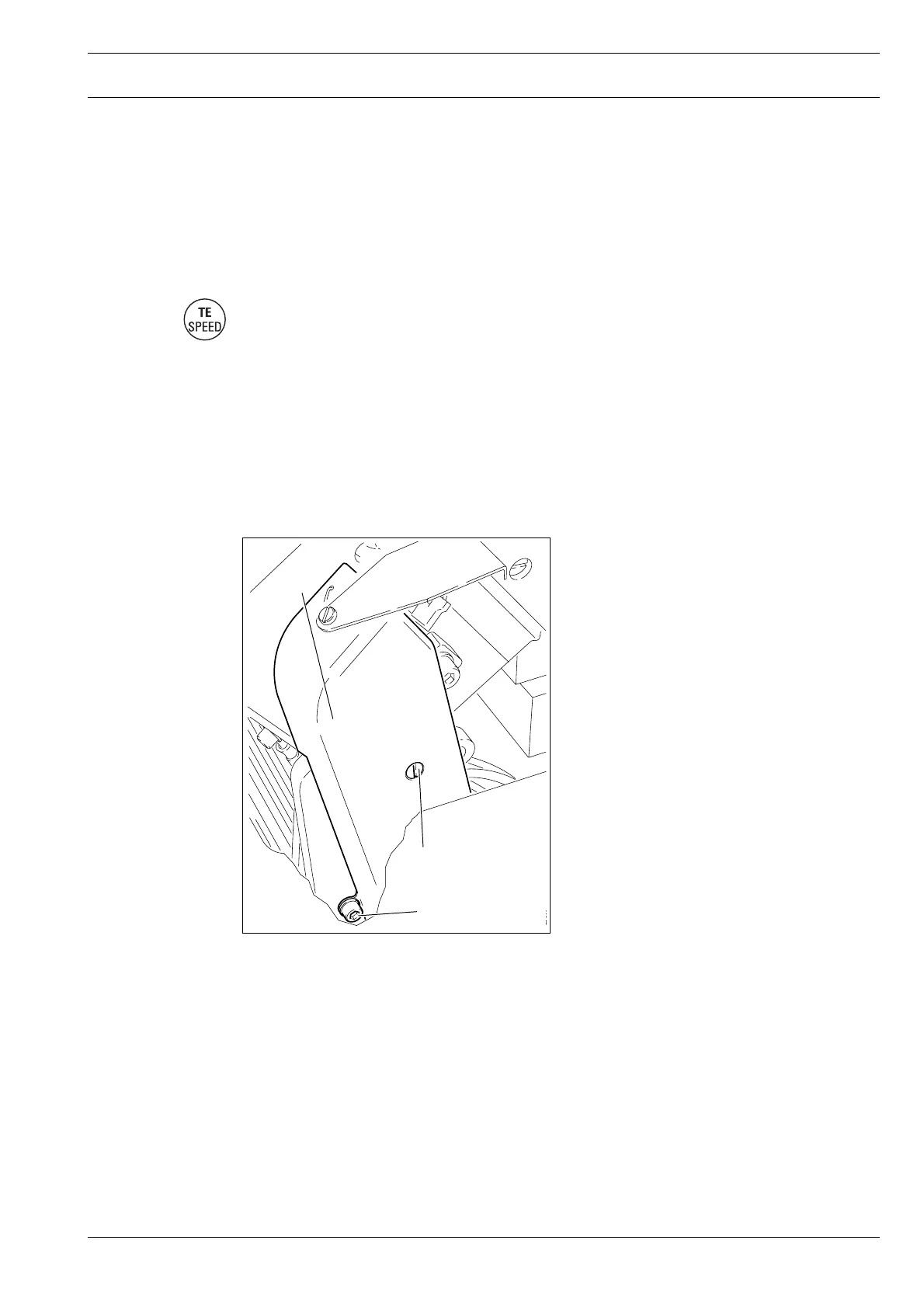

Fig. 8 - 10
1
2
3
● Loosen screws 10 of the synchronizer. Hold the synchronizer shaft and turn the balance
wheel in sewing direction until the needle point, descending from above, is level with the
top edge of the needle plate.
● Tighten the screws of the synchronizer.
● By pressing the corresponding +/- key let the machine carry out another revolution and
check the setting – if necessary repeat the adjustment operation.
● Conclude the adjustment of the sewing motor by pressing the TE/Speed key.
