Pfaff 1571 - Fitting the Tilt Lock; Fitting the Machine Cover

8 - 2
Installation and commissioning

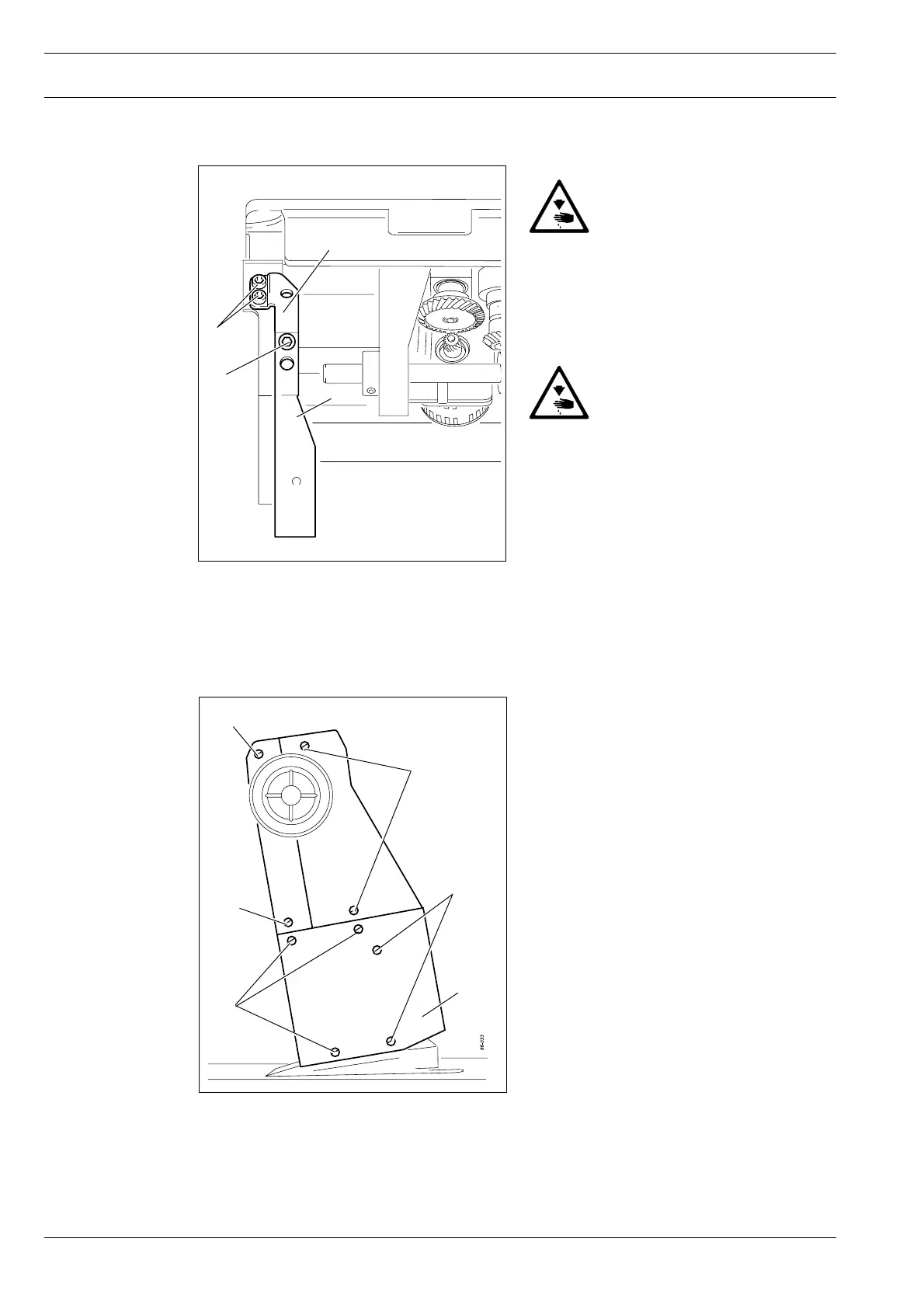

Fig. 8 - 02
8.01.02 Fitting the tilt lock
Switch off the machine!
Danger of injury if the machine
is the machine is started
accidentally!
● Screw on tilt lock parts 1 and 2, provided
in the accessories, using screws 3 and 4.
Do not operate the machine
without tilt lock 1. Danger of
crushing between sewing head
and table top!
1
2
3
4
Fig. 8 - 03
8.01.03 Fitting the machine cover
● Slide the slots of bottom cover 1 behind
the heads of fastening screws 2 and
attach with screws 3. Then tighten
screws 2 through the boreholes.
● Attach the right and left cover with
screws 4.
4
1
2
3
4
4
