13 - 10
Adjustment
5
5
4
7
10
4

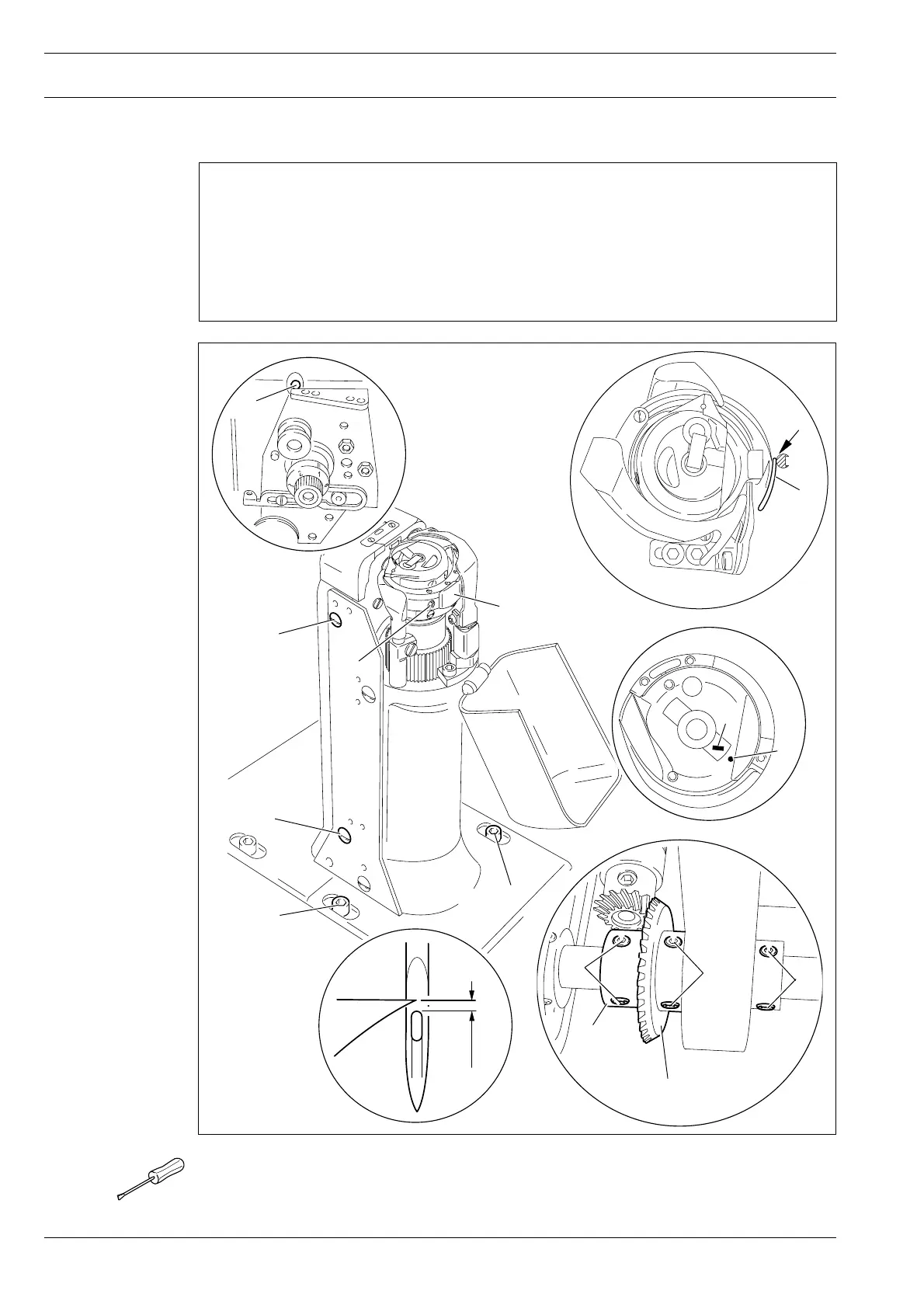

Fig. 13 - 07
61-028
3
1
2
8
9
0,8 - 1 mm
11
12
13
.04.07 Needle rise, hook clearance, needle height and needle guard on the PFAFF 1591
Requirement
With the needle bar positioned 2.0 mm after BDC and the stitch length set at "0.8"
1. the hook point must be at needle centre with a hook-to-needle clearance of
0.05 to 0.1 mm;
2. the top of the needle eye must be 0.8 to 1.0 mm below the hook point;
3. the needle guard 6 must touch the needle lightly.
Set the stitch length at „0.8“.
Loosen screws 1, 2, 3 and 4, as well as screws 5 on both sides of the post.
86-009
7
6
