Pfaff 1571 - Connecting Electrical and Earth Cables

8 - 4
Installation and commissioning
86-047
8.02.03 Connecting the plug-in connections and earth cables

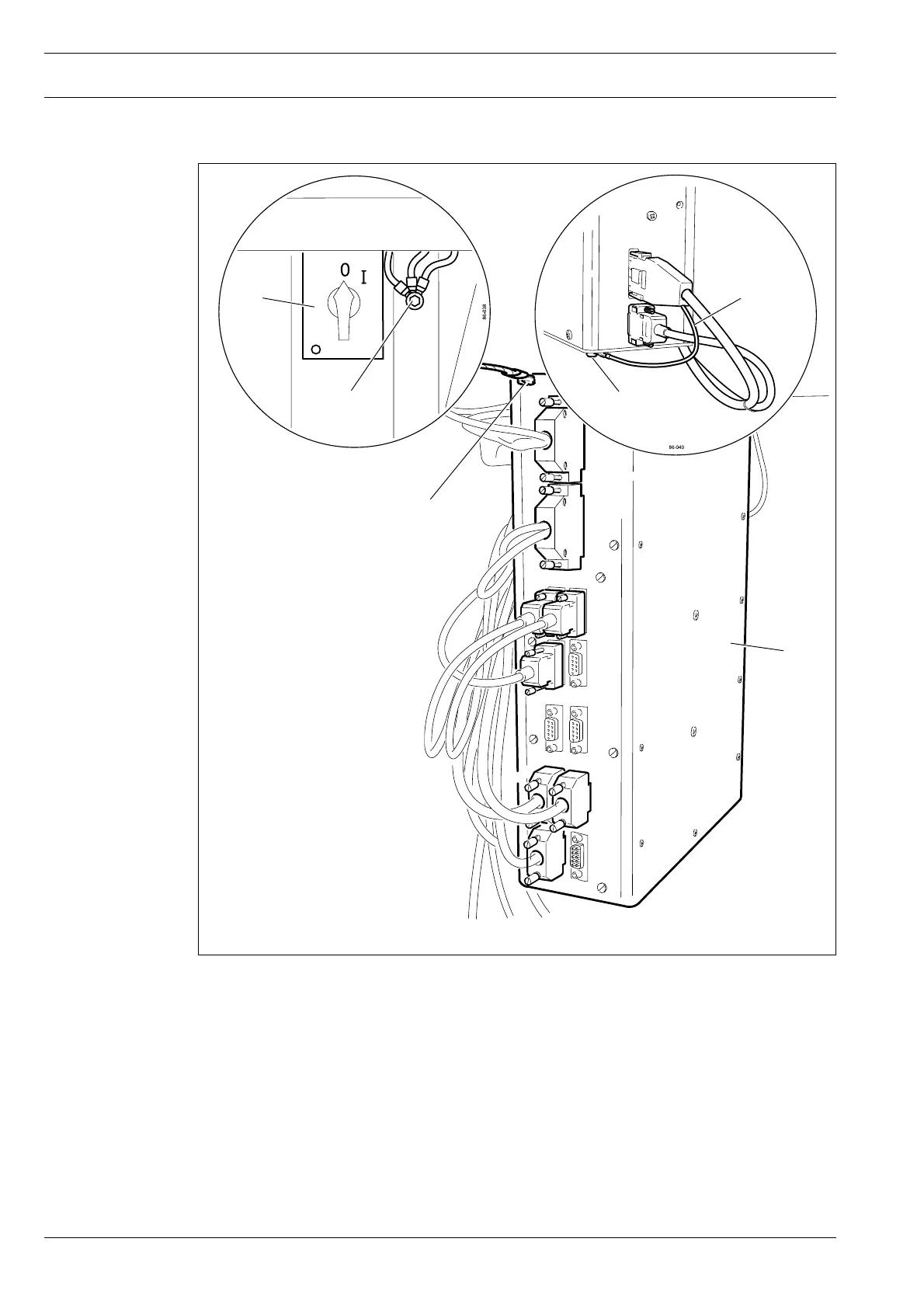

Fig. 8 - 06
● Connect all plugs as labelled to the control box 1.
● On the PFAFF 1574 an adapter cable must be plugged into socket X3
(also see Fig. 8 - 09).
● Screw the earth cable from the sewing head to earth point A.
● Screw the earth cable 2 from the motor to earth point B.
● Connect earth point C and earth point A with an earth cable.
● Fasten the earth cable of the main switch 3 to earth point A.
