Installation and commissioning

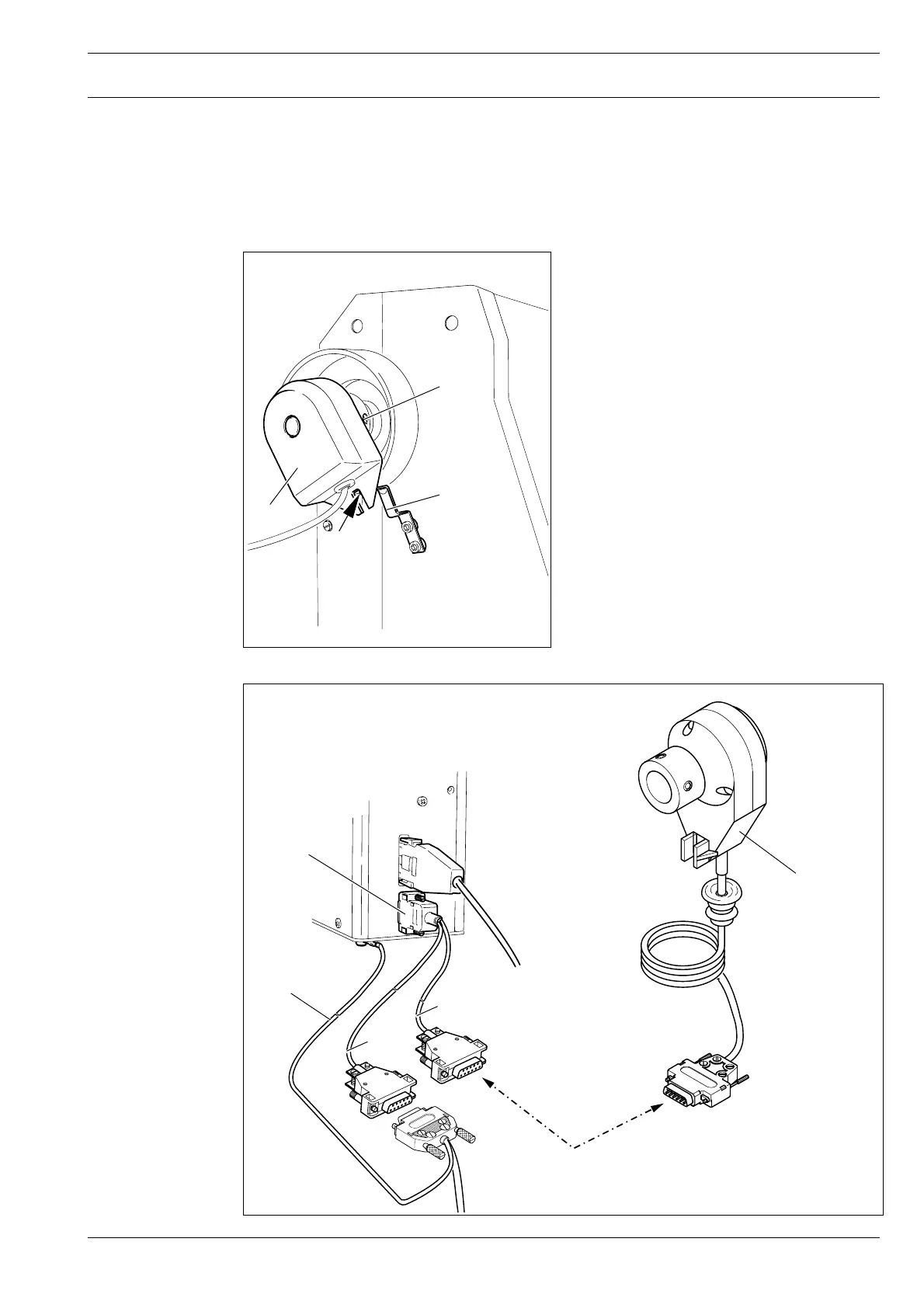

● Push synchronizer 8 onto the shaft so
that stop 9 is standing in the slot on the
synchronizer (see arrow)
● Tighten screws 10.
● Plug adapter cable 11 to socket X3 on
the control box.
● Connect synchronizer 12 to plug S.
● Connect motor to plug R.
● Connect earth cable 13 to the case.
8.02.05 Mounting the toothed belt / Basic position of the machine drive unit on the 1574
● In this position fit toothed belt 5 (Fig. 8 - 07).
● Swing the bearing plate 6 of the motor, so that the toothed belt 5 is tensioned.
● In this position tighten screws 7.
Fig. 8 - 08
10
8
9
X 8
R
X 3
Fig. 8 - 09
S
11
12
13
