13 - 18
Adjustment
13
.04.14

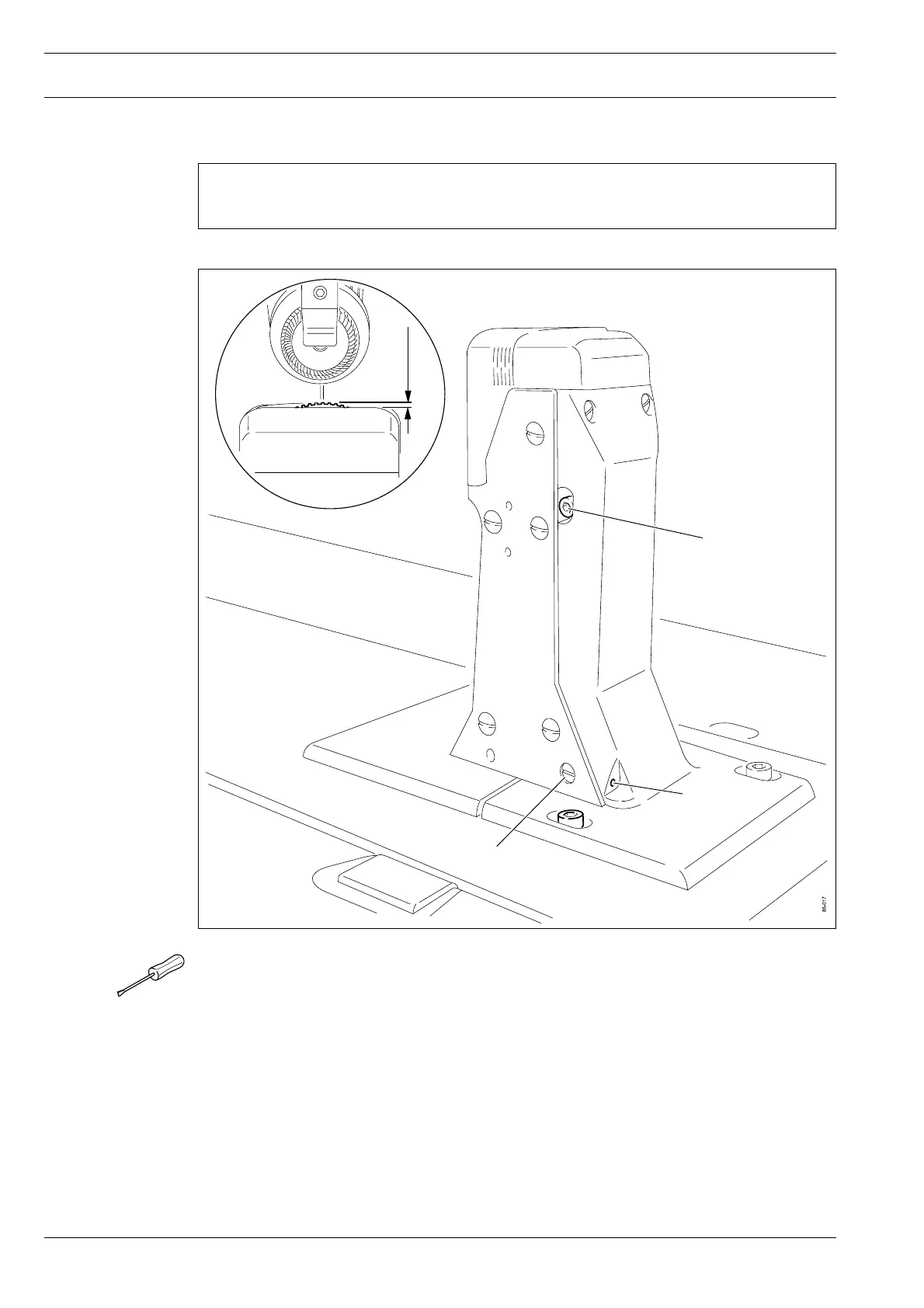

Height of the feed wheel on the PFAFF 1591
Requirement
The feed wheel should protrude from the needle plate by tooth height (approx.
0.8 mm
)
2
3
●
Swing out the roller presser.
●
Loosen screws
1
.
●
Adjust eccentric
3
(fastening screw accessible through hole
2
) according to the
requirement.
●
Tighten screws
1
.
Fig. 13 - 14
61-039
0,8 mm
1
93
95
