LIFEPAK 500 automated external defibrillator Replacement Procedures
11-72
Replacing Patient Connector Harness—Monophasic AED Page 4 of 4
8. Loosely tie-wrap three wires over the capacitor (+) terminals: P13(+), P5(+),
and P2 (Tie-Wrap #2).

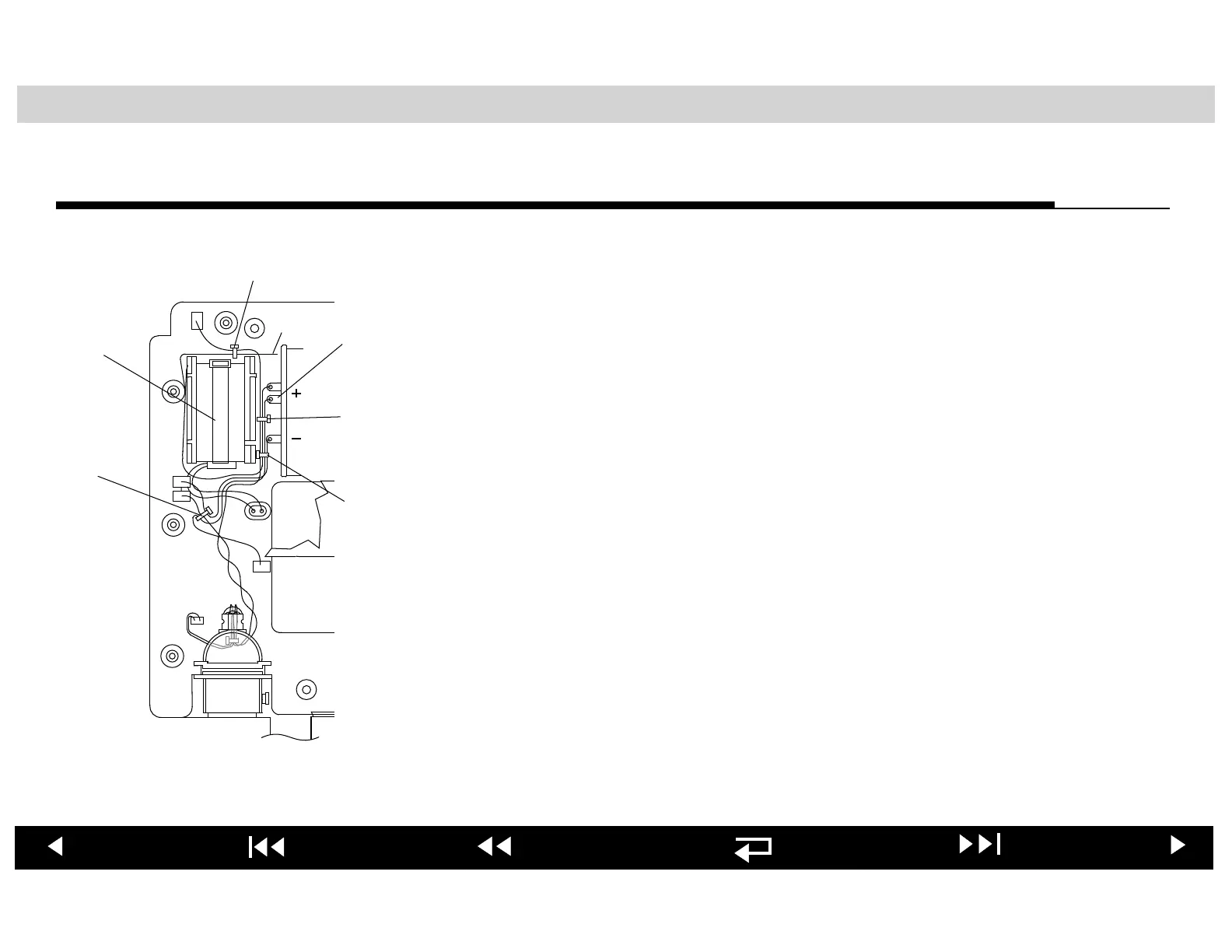

9. Dress the wires as shown in the Wire Routing and Tie-Wrap Placement—
Monophasic AED illustrations found in the Parts Lists and Assembly
Diagrams section. Tighten the tie-wraps. Clip and discard the ends.
10. Connect:
– P2 to J2
– P14 to J14
11. Tie-wrap the P14 and P2 wires behind the inductor (Tie-Wrap #1).
12. Connect:
– P12 to J12
– P3 to J3
– P9 to J9
Patient Connect Harness installation is complete. Jump to the Installing Main
PCB—Monophasic AED procedure and then to the Reassembling Case
procedure.
J5
J3
J4
J1
J2
J12
To J14
Tie-Wrap #1
Tie-
Wrap #4
Inductor
Tie-Wrap
Tie-
Wrap
#2
P13
Tie-
Wrap
#3
