LIFEPAK 500 automated external defibrillator Replacement Procedures
11-76
Replacing Lower Case Corner and Patient Connector Door Page 1 of 2
Preparation Before replacing the Lower Case Corner and Patient Connector Door, you must
first follow these procedures:
■ Removing Top Cover
WARNING!
Shock hazard. The Energy Storage Capacitor carries high voltage.
Remove the battery and discharge the capacitor before handling. See:
■ Discharging Energy Storage Capacitor
■ Removing Main PCB—Monophasic AED or Removing Main PCB—
Biphasic AED
To remove the Lower Case Corner and Patient Connector Door:
1. Remove the five screws securing the Battery Cavity Plate. Allow the Battery
Cavity Plate to hang loosely on the battery wires. (Do not disconnect the
battery wires.)
2. Lift the perimeter seal and patient connector to one side.
3. Disengage the Tab Slot from the Lower Case Locking Tab.
4. Slide the Lower Case Corner and Patient Connector Door down and out of
the lower case.

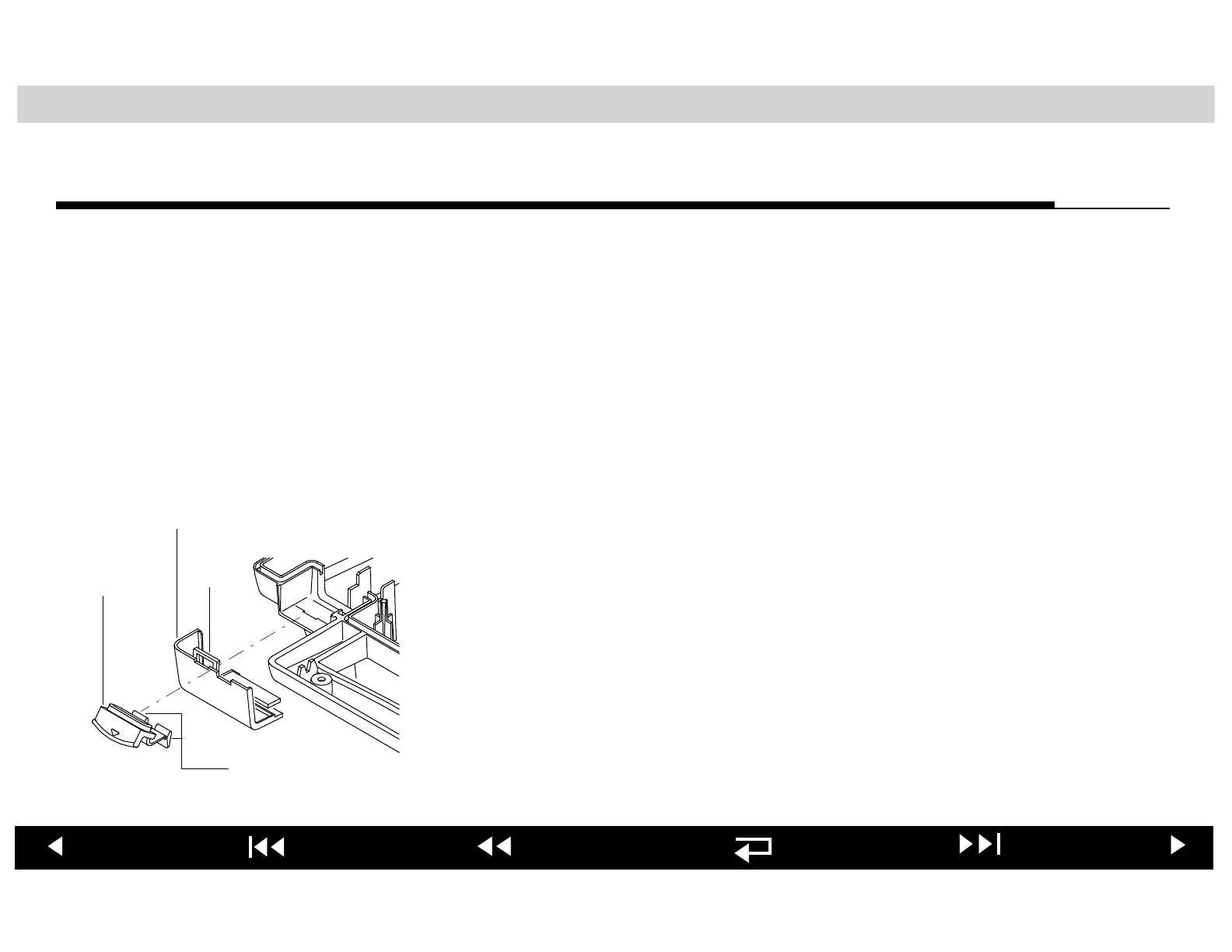

Door Tabs
(A and B)
Tab
Slot
Patient
Connector
Door
Lower Case
Corner
A
B
