LIFEPAK 500 automated external defibrillator Replacement Procedures
11-77
Replacing Lower Case Corner and Patient Connector Door Page 2 of 2
To install the Lower Case Corner and Patient Connector Door:

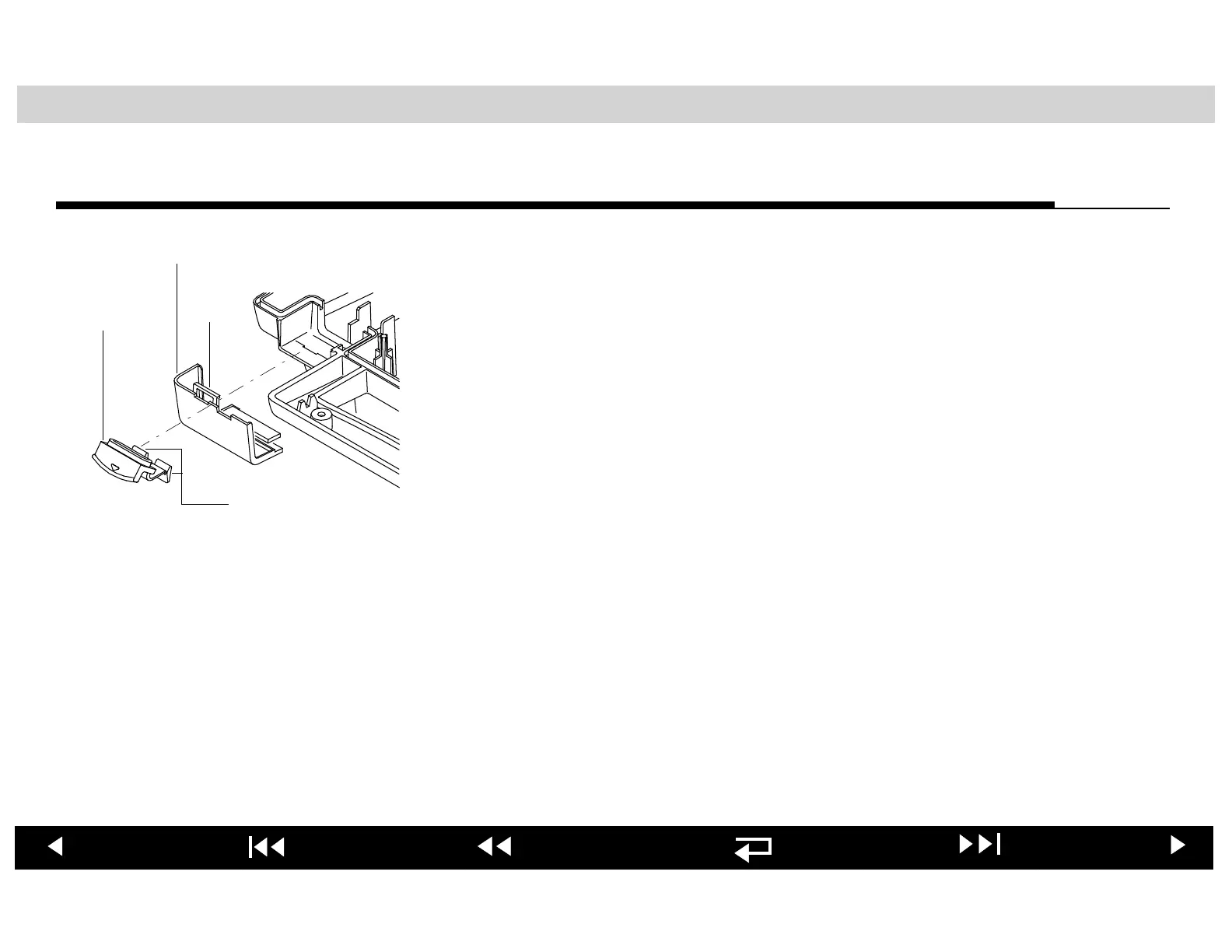

1. Align the Patient Connector Door and Lower Case Corner as shown at the
left.
2. Insert Door Tab A through the Tab Slot. Insert Door Tab B into the notch
adjoining the Tab Slot.
3. Slide the Lower Case Corner into the Lower Case Guide Slots.
4. Lock the Tab Slot over the Lower Case Locking Tab to secure the Lower
Case Corner in place.
5. Inspect the installation to verify proper alignment of door, case corner, and
lower case.
6. Reinstall the Battery Cavity Plate.
7. Reinstall the patient connector and perimeter seal.
After installing the new perimeter seal, jump to the Installing Main PCB—
Monophasic AED or Installing Main PCB—Biphasic AED procedure and then
to the Reassembling Case procedure.
Door Tabs
(A and B)
Tab
Slot
Patient
Connector
Door
Lower Case
Corner
A
B
