Function description
Operating Manual PSEN sc M 3.0/5.5 08-17
1005387-EN-05
| 20
For a violated safety zone, the OSSDs switch to the OFF state, for a violated warning zone
an indicator light unit can be switched on, for example.
Functions of the master unit in the series connection
} Supply voltage for the connected subscriber units
} Connection to the PSENscan Configurator
} Control of the subscriber units in accordance with the functionality configured in the
PSENscan Configurator

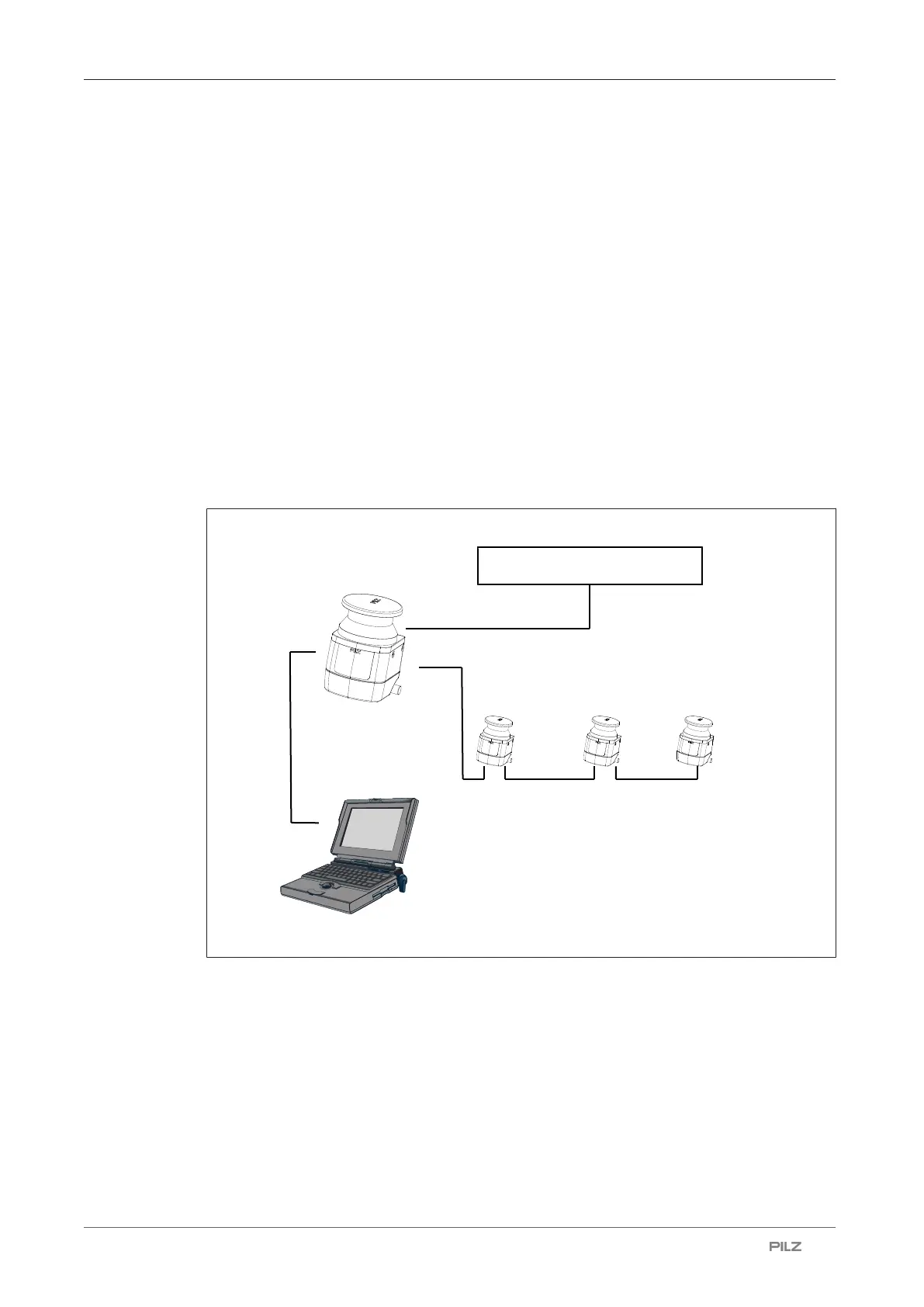

In a series connection, the safety outputs of a safety laser scanner PSEN sc M 3.0/5.5
08-17 series are connected to an evaluation device. On this safety laser scanner, max.
three safety laser scanners PSENscS3/5can be connected in series. The safety laser
scanner PSEN sc M 3.0/5.5 08-17 series is the master unit; the other safety laser scanners
PSENscS3/5connected to the master unit are subscriber units.
A safety laser scanner PSENscS3/5may only be connected to a safety laser scanner
PSEN sc M 3.0/5.5 08-17 series or to a PSENscS3/5, which is connected to a PSEN sc
M 3.0/5.5 08-17 series.
PSENscan Configurator
PSEN sc 3/5 M/ME
PSEN sc 3/5 S
Evaluation device
