5.2 Stationary and mobile danger zone
You can use the safety laser scanner to monitor a stationary or mobile danger zone, e.g.
the environment of a machine that is installed in a fixed position or an area in front of an
automated guided vehicle system or a mobile robot.
The monitored area can be divided into subsections, for which monitoring can be activated
and deactivated respectively.
[1]
[3]
[2]
[4]

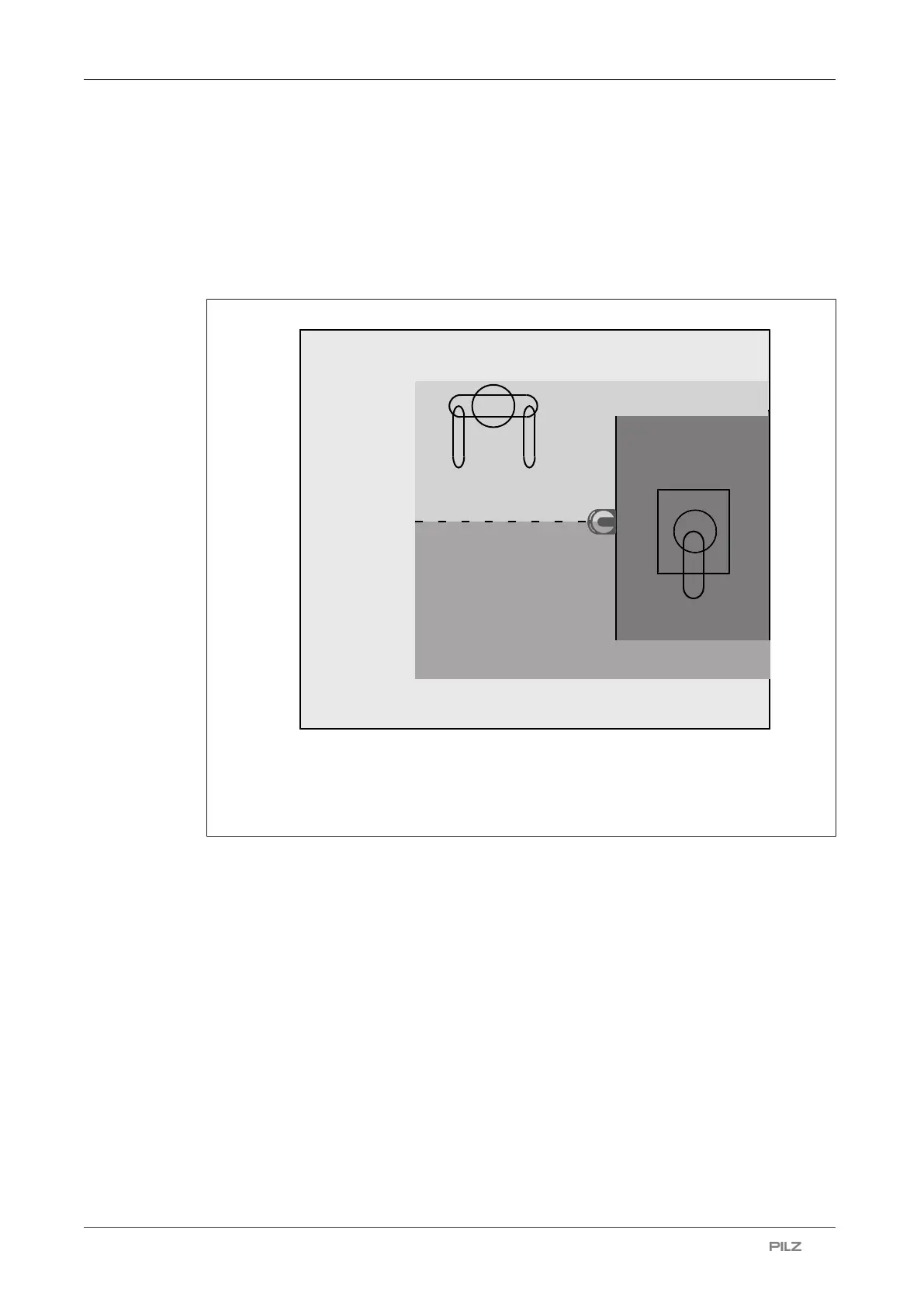

Legend
[1] Danger zone
[2] Configured zone 1, monitoring not activated
[3] Configured zone 2, monitoring not activated
[4] Warning zone
If a violation of the safety zone is detected, the OSSDs switch to the OFF state.
If a violation of the warning zone is detected, the actions configured in PSENscanConfigur-
ator are performed. A visual or audible signal can be activated as advance warning.
When using 2 warning zones, different reactions can be configured.
