6.13.3 Muting in one direction
NOTICE
Faulty application of L-muting
– Only use L-muting to remove material from the danger zone.
} The muting status occurs
– If the signal at the second muting input Muting 12 switches to High after muting input
Muting 11 has also switched to high (or muting input Muting 11 switches to High
after muting input Muting 12) and
– The delay between the two signal changes is within the configurable range Muting
activation delay [ms]. The max. delay can be configured for between 1 and 16
seconds.
} The muting state is ended
– When the configured time is reached or
– after a multiple of the delay between the activation of the two muting sensors.
The Factor activation delay can be selected between 2 and 16.
t
t
1
t
3
t
2
Input
Muting 11
Input
Muting 12
Muting
function
Off
Off
Off
On
On
On

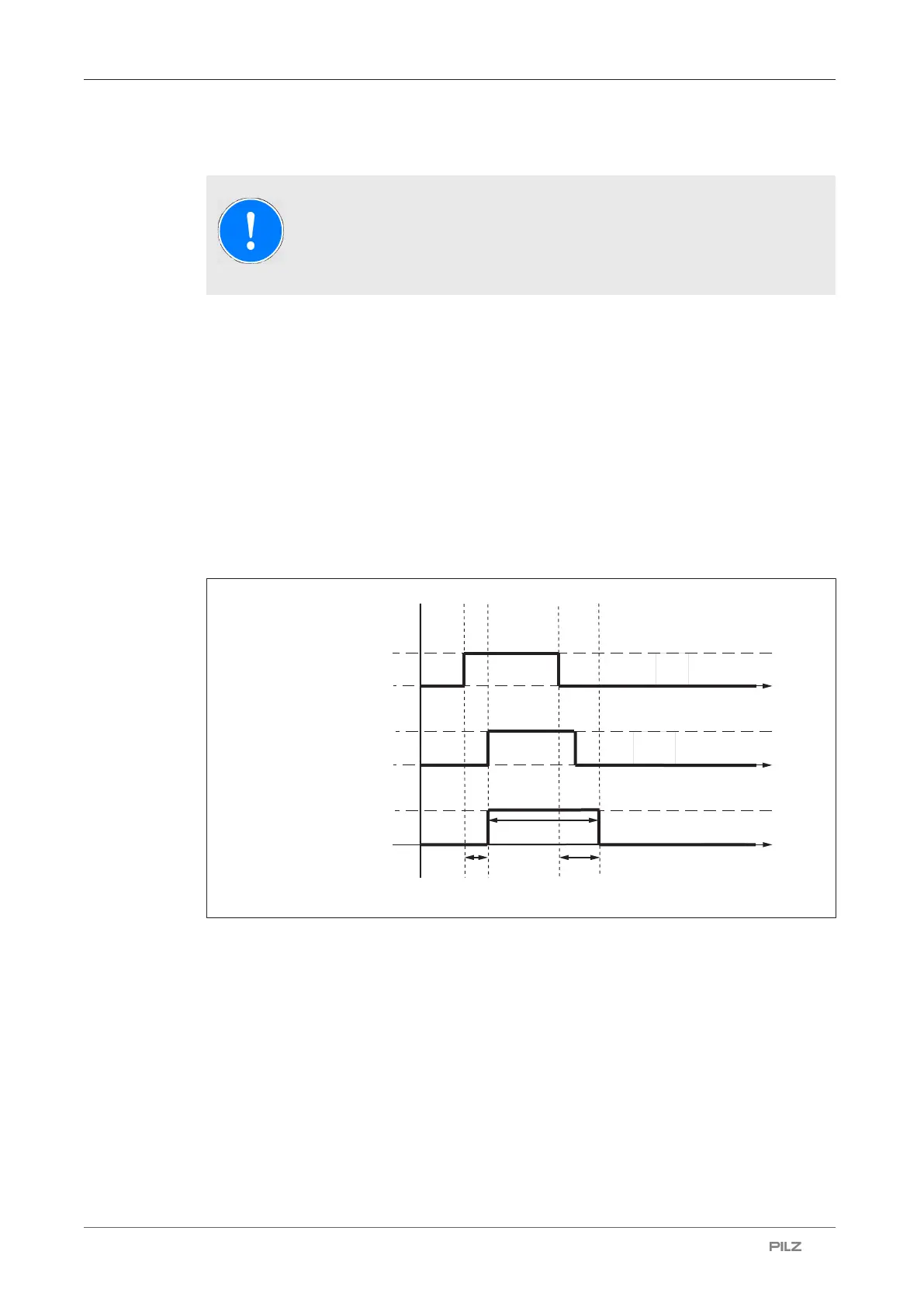

Fig.: Timing diagram L-muting
Legend
t
1
Delay between Muting 11 and Muting 12 (configurable from 1-16 s)
t
2
Duration of the muting state (max. up to the configured timeout)
t
3
Internal delay before the muting state is ended (max. 30 ms)
