Function description
Operating Manual PSEN sc M 3.0/5.5 08-17
1005387-EN-05
| 22
5.2.1 Horizontal application
[1]
[2]

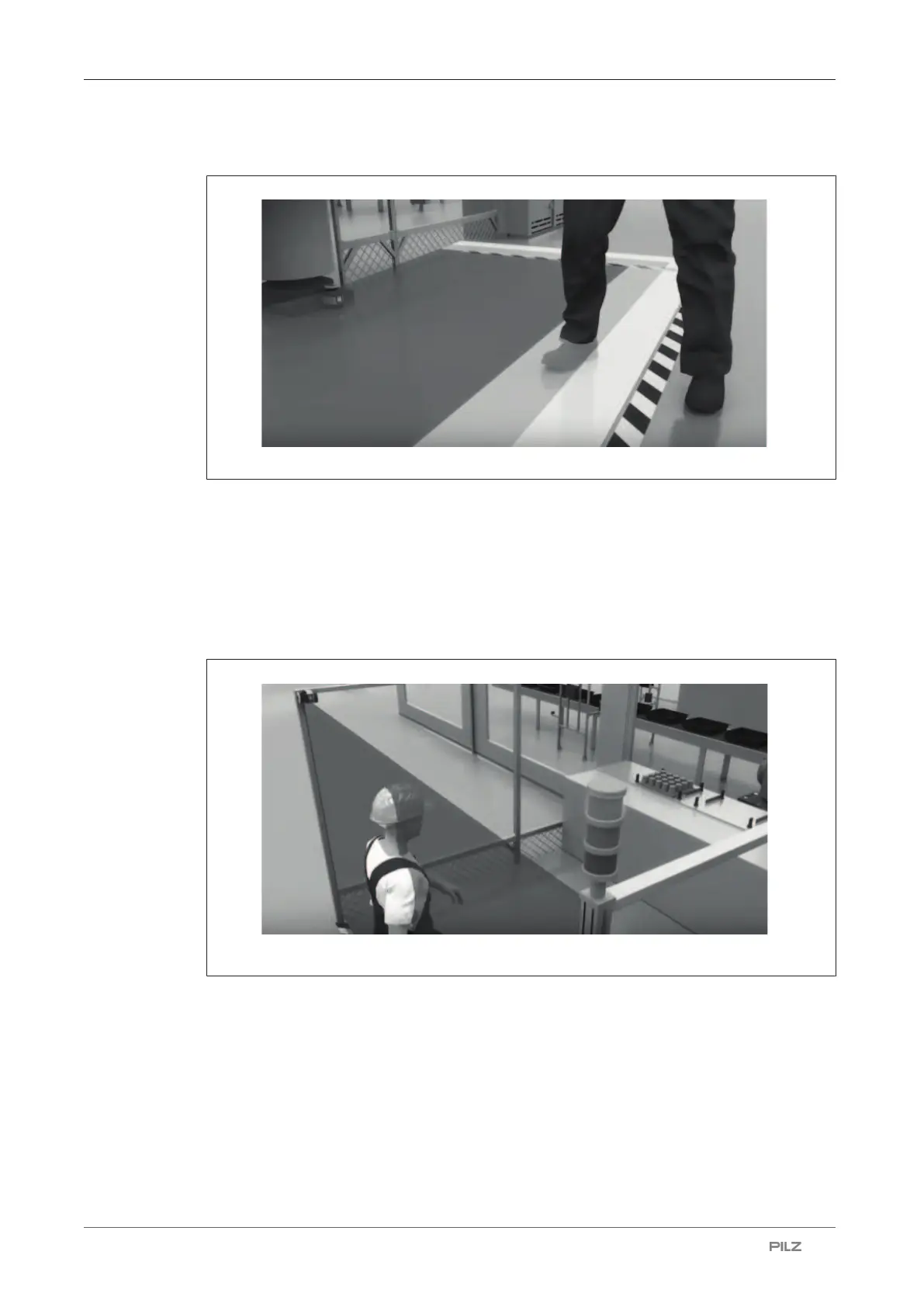

Fig.: Application example PSENscan safety laser scanner - horizontal configuration
Legend
[1] Warning zone
[2] Safety zone
5.2.2 Vertical application
[1]
Fig.: Application example PSENscan safety laser scanner - vertical configuration
Legend
[1] Safety zone
