7.9 Connections for muting sensors

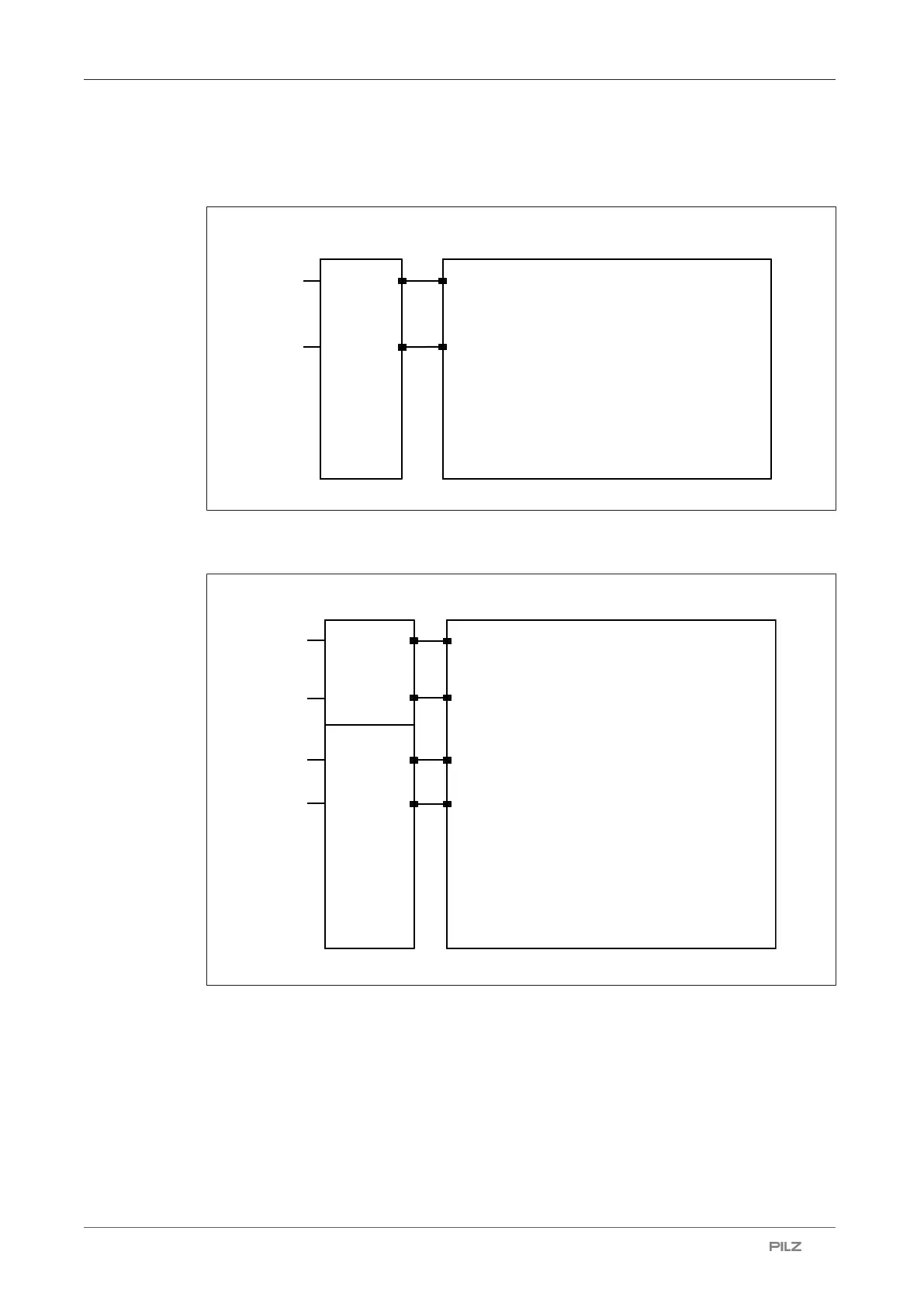

Wire the muting sensors as shown in the following diagrams.
Muting 1 1
Muting 1 2
24 V
24 V
Muting sensor Safety laser scanner
Configurable input or input/output
Configurable input or input/output
Connection: 17-pin
Connection: 8-pin 5, 6, 7, 9, 14, 17
8-1 to 8-8
5, 6, 7, 9, 14, 17
and 17-pin
Fig.: Wiring of 2 muting sensors on the master unit
Muting 1 1
Muting 1 2
Muting 2 2
Muting 2 1
24 V
24 V
24 V
24 V
Muting sensor Safety laser scanner
Configurable input or input/output
Connection: 17-pin
Connection: 8-pin
Configurable input or input/output
5, 6, 7, 9, 14, 17
8-1 to 8-8
5, 6, 7, 9, 14, 17
Configurable input or input/output
Configurable input or input/output
and 17-pin
Fig.: Wiring of 4 muting sensors on the master unit
