Installation and alignment

Operating Manual PSEN sc M 3.0/5.5 08-17

1005387-EN-05

| 81

8.9 Measures to safeguard unsecured areas

When installing the PSEN sc M 3.0/5.5 08-17 series areas may result that are not detected

by the safety laser scanner.

If required, install additional protective devices to safeguard the danger zone.

Prevent stepping behind

[2]

[3]

[4]

[1]

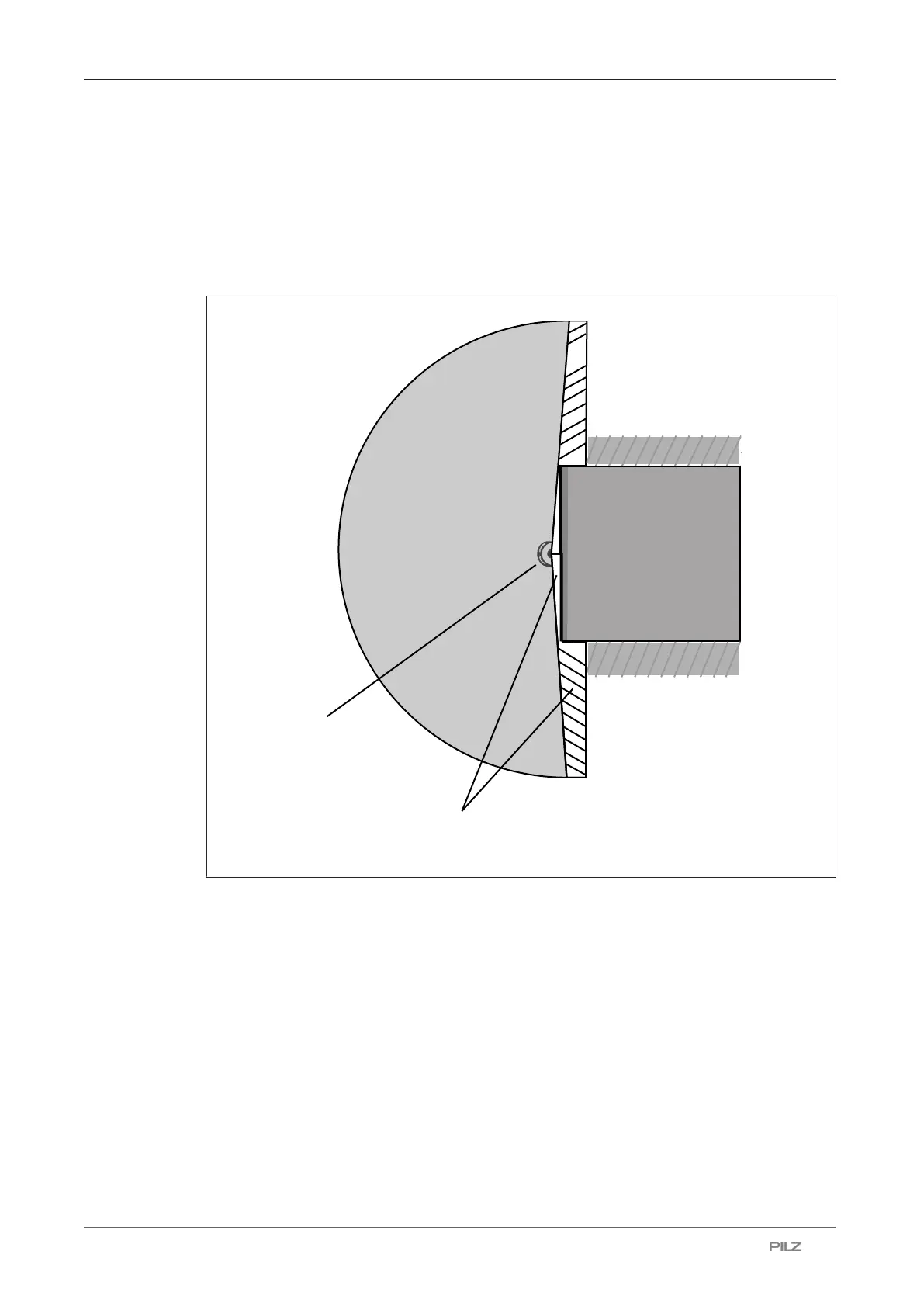

Legend

[1] Danger zone with fence

[2] Safeguarded area

[3] Not safeguarded area - safeguard against stepping behind

[4] Safety laser scanner
