First commissioning
Operating Manual PSEN sc M 3.0/5.5 08-17
1005387-EN-05
| 87
10 First commissioning
10.1 Requirements for commissioning
Note:
} Ensure that the window of the safety laser scanner is clean, intact and without finger-
prints.
CAUTION!
Deterioration in the detection of safety zone violations
If the safety laser scanner is commissioned under deviating conditions,
there may be a deterioration in the detection of safety zones violations.
10.2 System connection
Make sure that the selected evaluation device has the following property:
} OSSD signals are evaluated through 2 channels with plausibility monitoring
2
13
11
0 V24 V
0 V
OSSD 1
OSSD 2
A1
A2
1
24 V
F.E.
16
PSENscan
24 V
0 V
10
24 V
0 V
8
3
12
4, 5, 6, 7, 9, 14,
15, 17
0 V
24 V
24 V
0 V
I1 (FS)
I2 (FS)
Evaluation device
Input circuit
External
supply voltage
Configurable
via GUI

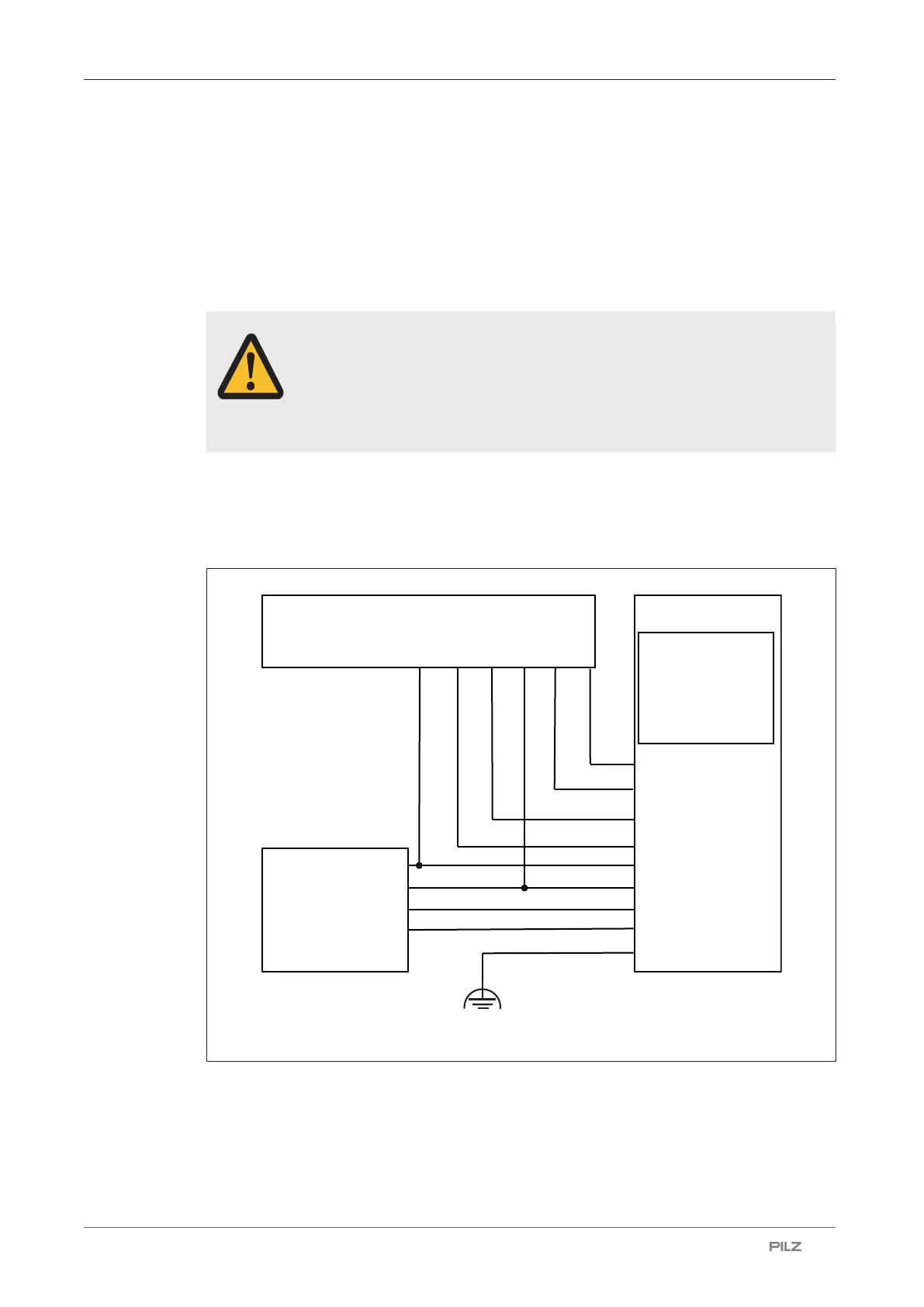

Fig.: Dual-channel connection of the safety laser scanner with 17-pin male connector on the input cir-
cuit of an evaluation device (1 zone set, warning message, automatic restart)
