Project configuration

Operating Manual PSEN sc M 3.0/5.5 08-17

1005387-EN-05

| 59

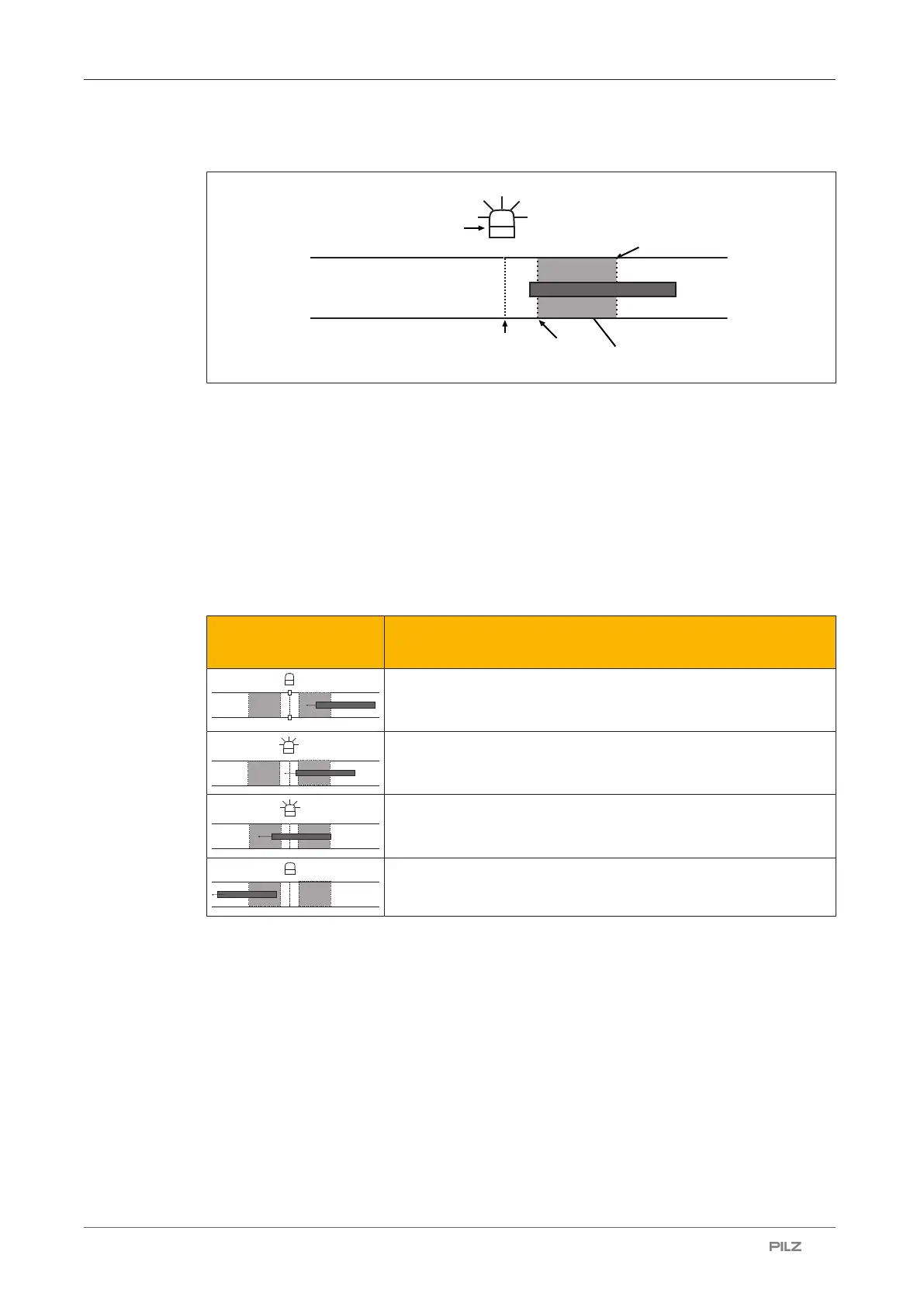

Sequence of an L-muting cycle in accordance with flow of material

[1]

[2]

[3][4]

[5]

Legend

[1] Material is taken away from the danger zone

[2] First muting sensor on the input side, connected to Muting 11

[3] Second muting sensor on the input side, connected to Muting 12

[4] PSEN sc M 3.0/5.5 08-17 series

[5] Muting lamp

Please note the following distances and times when installing the safety laser

scanner and using the muting function:

Phase in the muting

cycle

Explanation

Material has already passed the first muting sensor and is being

transported in the direction of the second muting sensor, muting

lamp off.

Material passes the second muting sensor (max.4s after the

first sensor was passed). Muting lamp flashes, signalling the

muting status.

Material passes the PSEN sc M 3.0/5.5 08-17 series and the

first muting sensor on the output side, muting lamp flashes, sig-

nalling the muting status.

Material has left the area of the first muting sensor on the output

side, muting lamp is off, muting status is ended.
