Function description
Operating Manual PSEN sc M 3.0/5.5 08-17
1005387-EN-05
| 29
If material is transported from the left-hand side, the cycle is re-
versed. The output side becomes the input side and the flow
starts with the second muting sensor on the output side.
Identification of the conveyed material (pallets, vehicles...) must be guaranteed with all
} Material dimensions and
} Conveyor speeds
that are intended to arise during operation.
} When the muting state of the safety laser scanner is detected, the safety laser scanner
triggers the configured actions for the muting state (e.g. switch on warning lamp or warn-
ing sound).
} Two muting areas can be created in a safety zone.
} Muting can be used in various versions.
– L muting: Only for removing material from the danger zone
– T muting: Transport of material in two directions
– Dynamic muting: Available for L muting and T muting
In addition to the conditions for L muting and T muting, activation and deactivation of
the muting state can be controlled by the connected safety controller.

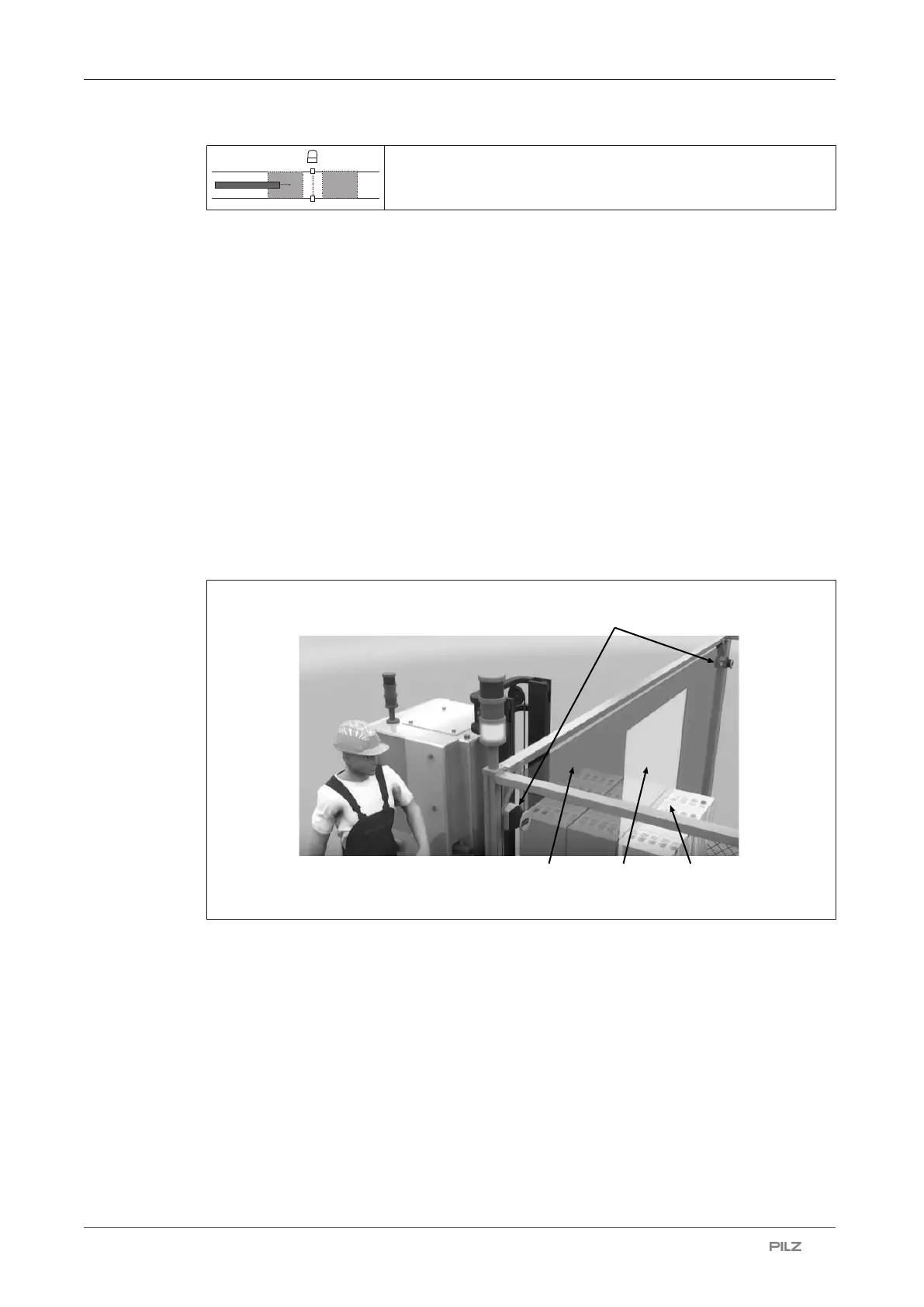

Legend
[1] Safety zone
[2] Muting zone
[3] Transported material
[4] Safety laser scanner
