Wiring
Operating Manual PSEN sc M 3.0/5.5 08-17
1005387-EN-05
| 65

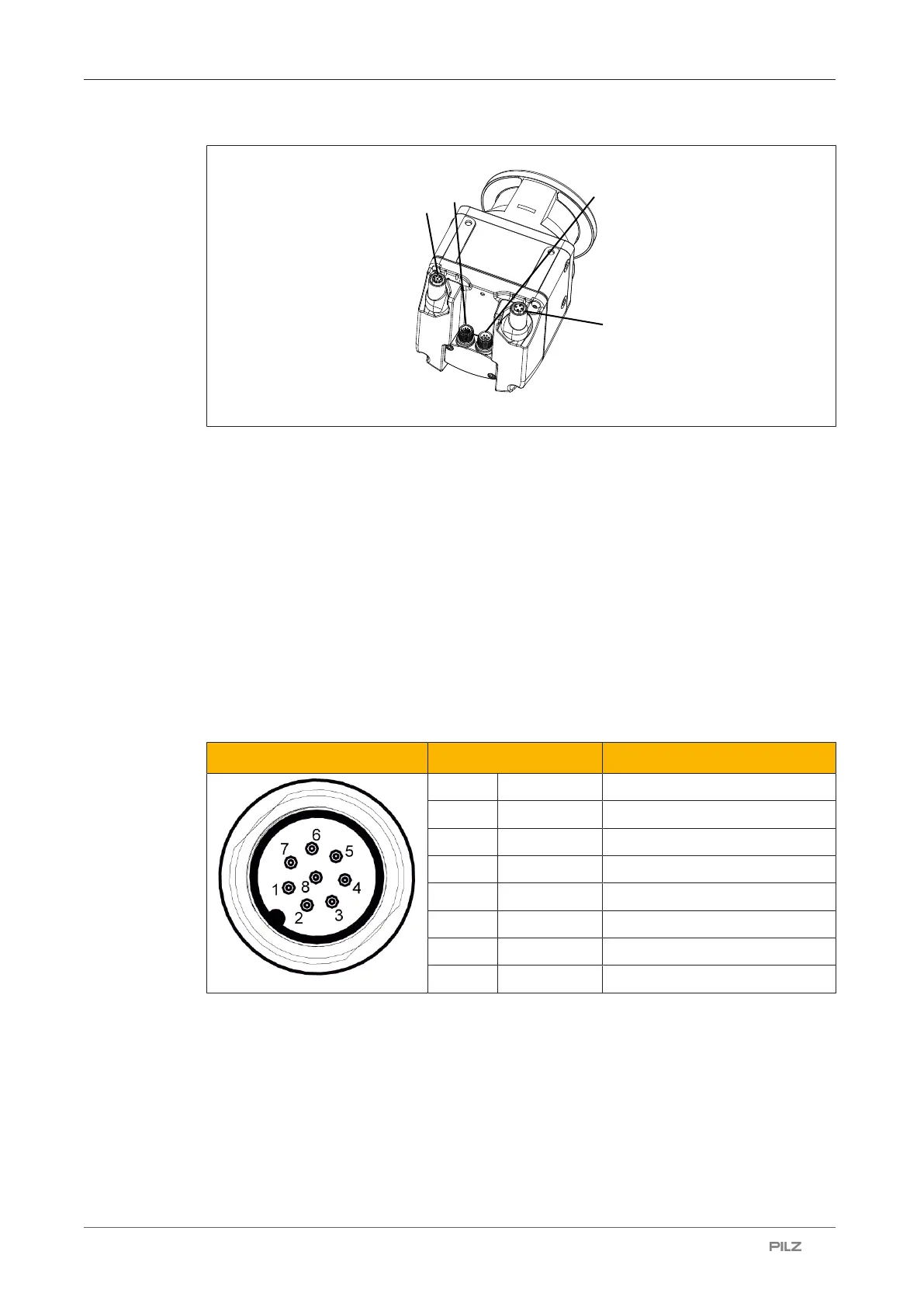

[1]
[2]
[4]
[3]
Legend
[1] M12 8-pin male connector for connection to an evaluation device and the supply
voltage
[2] M12 17-pin male connector for connection to an evaluation device and the supply
voltage
[3] M12 4-pin female connector, hinged, for connection to configuration PC
[4] M12 8-pin female connector, hinged, for connection to a subscriber unit
} M12 8-pin male connector in addition to the 17-pin male connector for connecting addi-
tional inputs
– Four configurable inputs
– Four configurable outputs
– Two configurable inputs/outputs can be used as a 3rd OSSD pair
Male 8-pin connector Pin/colour Description
2 Brown 24VDC
7 Blue 0VDC
3 Green Configurable input
4 Yellow Configurable input
1 White Configurable input/output
5 Grey OSSD 11
6 Pink OSSD 12
8 Red Functional earth
} M12 17-pin male connector for connection to an evaluation device and the supply voltage
– Two OSSD pairs (for the 2. OSSD pair, configurable outputs must be used)
– Four configurable inputs
– Two configurable outputs
– Two configurable inputs/outputs
– Three inputs for supply voltage
– Functional earth
