Installation and alignment

Operating Manual PSEN sc M 3.0/5.5 08-17

1005387-EN-05

| 78

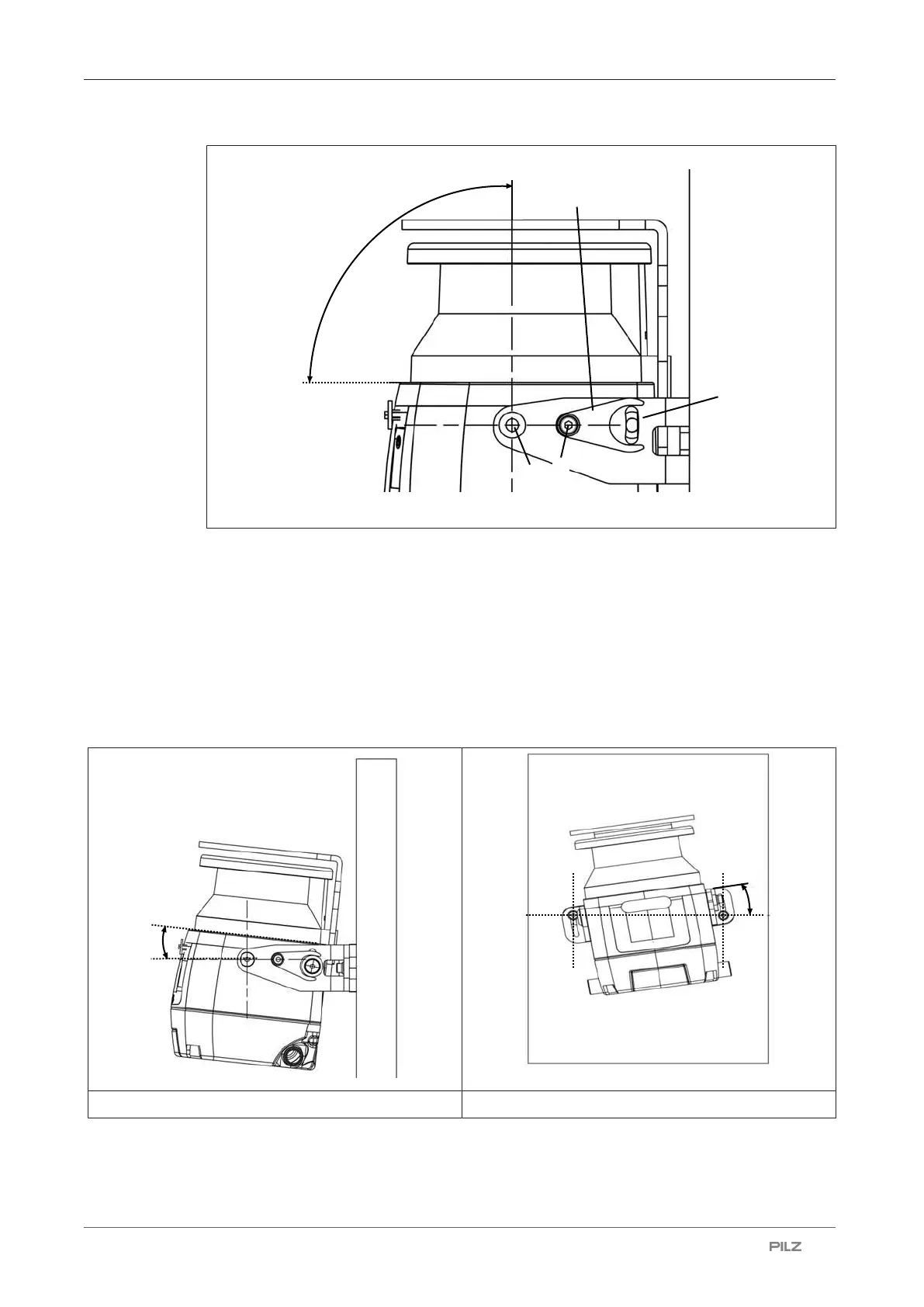

90°

[2]

[1]

[4]

[3]

Legend

[1] Adjusting disc for angle of inclination

[2] Set screw for the adjusting disc for angle of inclination

[3] Fixing screws for safety laser scanner

[4] Fine adjustment screws for the incline of the safety laser scanner

5. Insert the safety laser scanner in PSENscbracketPR with the bracket

PSENscbracketH to the top and fix the safety laser scanner with the screws [3] and

[4]. Tighten all four screws to 3 Nm.

max. ± 6°

max. ± 8,5°

Inclination to the top/bottom Inclination to the side (roll)
