Architecture
2

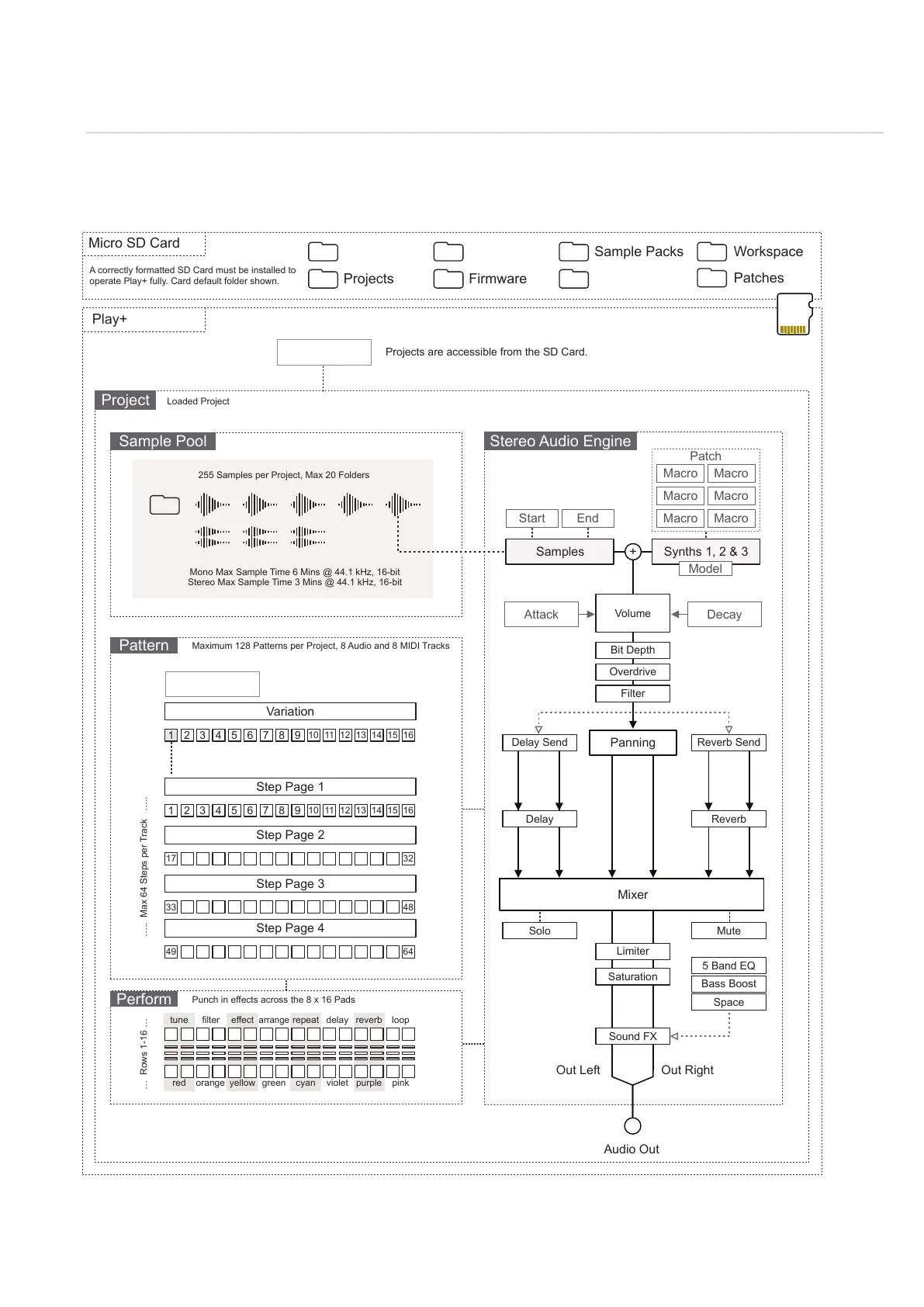

2.2 Play+ Audio Structure.
Filter
Saturation
5 Band EQ
Bass Boost
Space
Sound FX
Delay Send
Delay
Solo
Reverb Send
Reverb
Mute
Overdrive
Limiter
Bit Depth
Volume
Samples Synths 1, 2 & 3
Start Macro
Macro
Macro
End Macro
Macro
Macro
Attack Decay
Panning
Mixer
+
Out Right
Audio Out
Out Left
Step Page 1
Step Page 2
Step Page 3
Step Page 4
Variation
1 2
17
33
49
1 2
9
10
9
10
5 6
5 6
13 14
13 14
3 4
3 4
11 12
11 12
7 8
7 8
15 16
32
48
64
15 16
Projects Firmware
Sample Packs Workspace
Patches
Micro SD Card
Play+
BeatFills
Artist Samples
Samples
Project
Track
Project
Pattern
Perform
Sample Pool
Stereo Audio Engine
A correctly formatted SD Card must be installed to
operate Play+ fully. Card default folder shown.
Loaded Project
Maximum 128 Patterns per Project, 8 Audio and 8 MIDI Tracks
Punch in effects across the 8 x 16 Pads
tune
red
lter
orange
effect
yellow
arrange
green
repeat
cyan
delay
violet
reverb
purple
loop
pink
255 Samples per Project, Max 20 Folders
Mono Max Sample Time 6 Mins @ 44.1 kHz, 16-bit
Stereo Max Sample Time 3 Mins @ 44.1 kHz, 16-bit
….. Max 64 Steps per Track …..… Rows 1-16 …
Projects are accessible from the SD Card.
Model
Patch
