Wiring Types
Wiring specications must be followed to prevent damage or other consequences. Please refer to the wiring diagram below for
proper wiring requirements.

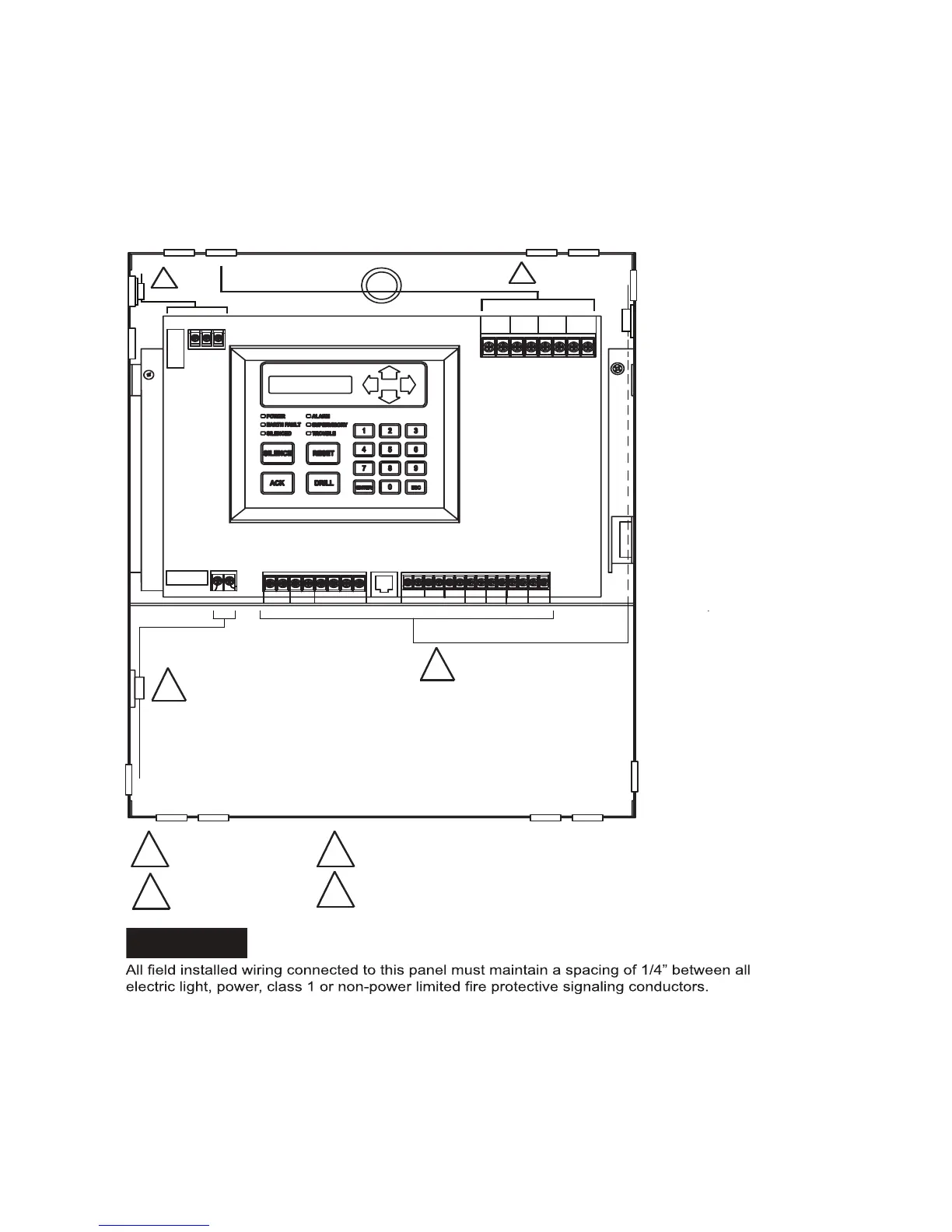

Figure 1. PFC-6006 Wire Routing Example
1
2
4
3
Battery leads
2
Power Inputs
1
Route all other wiring away from power input wiring.
3
Run DACT phone lines separately.
4
Wire Routing for PFC-6006
(*Shown with false front removed)
A- A+ B- B+
- +
INPUT2 INPUT3 INPUT4 INPUT5 INPUT6
- +
- + - + - +
INPUT1
A B - + - + - +
Line2 In Line2 Out Line1 In Line1 Out
Tip Ring Tip Ring Tip Ring Tip Ring
PLINKAUXNAC
NOTICE
BATTERY
FUS E
- +
F
U
S
E
DWG #559-12
