Potter PFC-6006 - Input Circuits #1-6 Class B, Style B Wiring Configuration

3-11
PFC-6006 • 5403559 • REV D • 11/17
Input Circuits #1-6 Class B, Style B Wiring Conguration

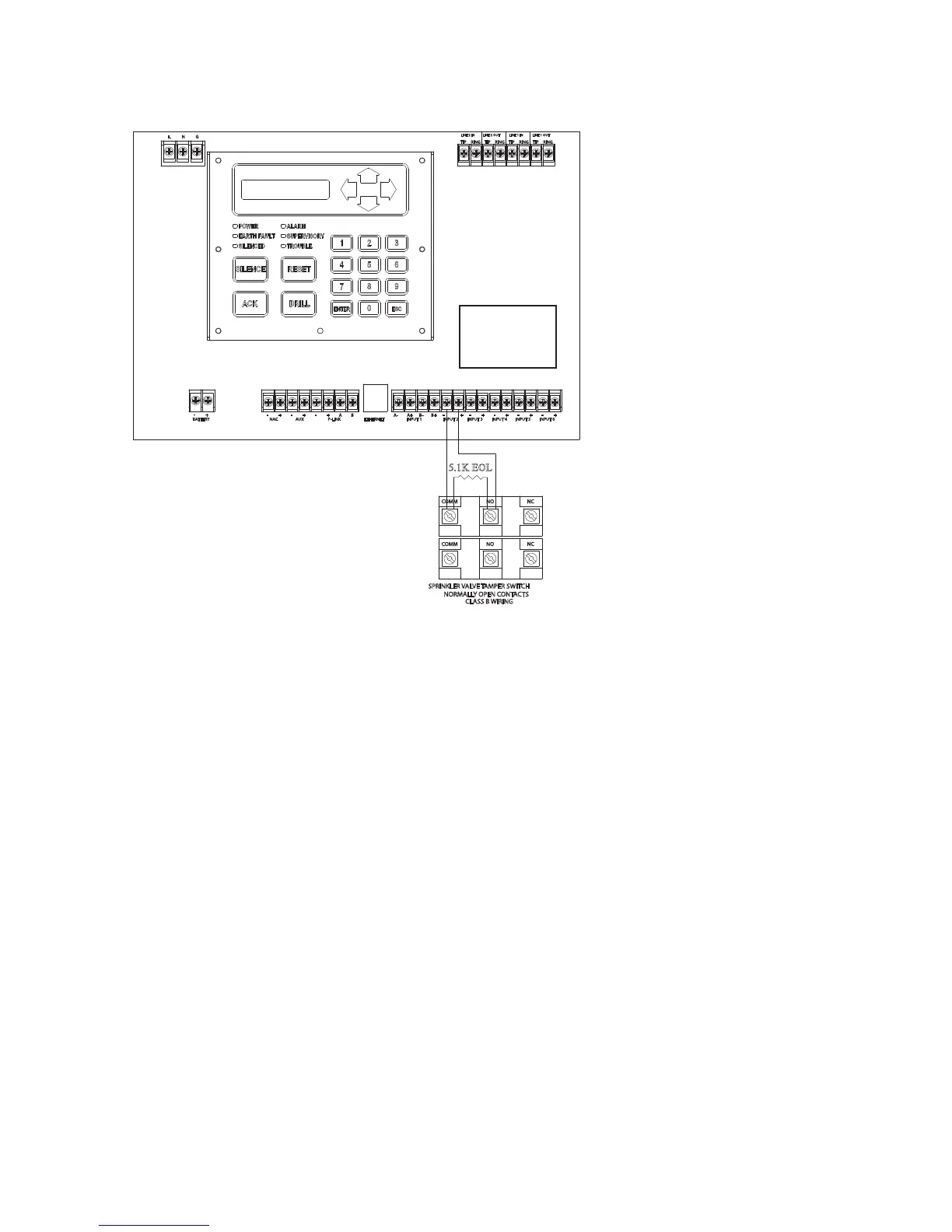

Figure 8. Example of Inputs Wired as Class B, Style B
Notes:
1. Maximum wiring resistance must not exceed 100 ohms.
2. The input has ground fault detection with 0 ohm impedance to ground.
3. The Potter part number for the listed end of line assembly is #3005013 EOL Resistor Asssembly.
L N G
BATTERY
- +
NAC
- +
AUX
+-
P-LINK
+-
BA
ETHERNET INPUT 1
A- A+ B-
-
B+
-+ -+ -+ -+ +
INPUT 2 INPUT 3 INPUT 4 INPUT 5 INPUT 6
TIP
RING
TIP
RING
TIP
RING
TIP
RING
LINE 2 OUTLINE 2 IN LINE 1 OUTLINE 1 IN
COMM NO NC
COMM NO NC
5.1K EOL
SPRINKLER VALVE TAMPER SWITCH
NORMALLY OPEN CONTACTS
CLASS B WIRING
DWG #559-5
PFC-6006
Input Circuits #1-6
Terminal Connection
