Potter PFC-6006 - Installation; Cabinet Wiring Connections

2-7
PFC-6006 • 5403559 • REV D • 11/17
Cabinet Wiring Connections

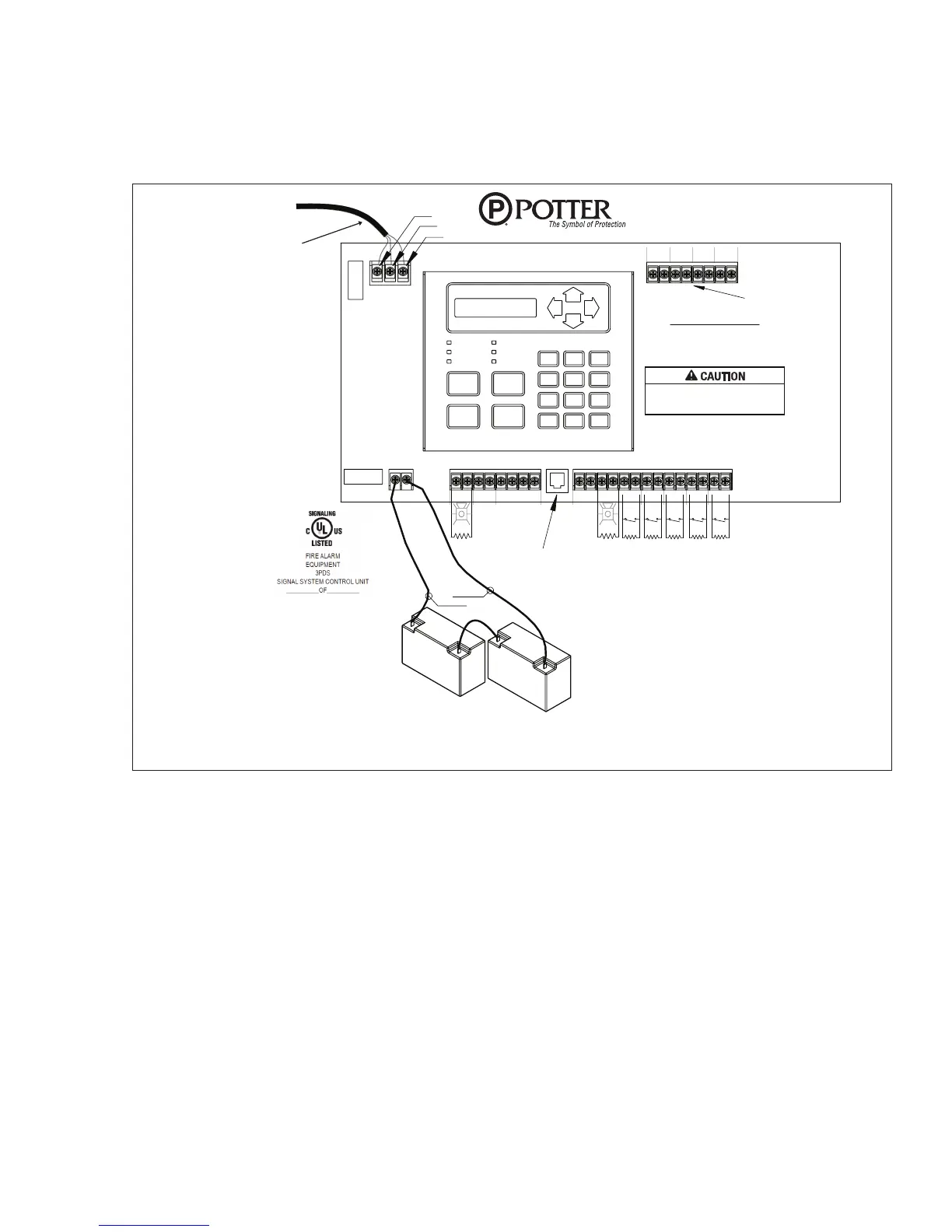

Figure 4. PFC-6006 Cabinet Wiring
Acknowledgements
Gentex ®, Cooper Wheelock ®, and System Sensor ® synchronization
protocols used with permission. Cooper Wheelock Patent Nos. 5,400,009.
Potter Electric Signal Company LLC
PFC-6006
US: POTAL01BSMP
Complies with 47 CFR Part 68.
Made in USA.
See board for Serial #.
PFC-6006
Sprinkler Monitoring Panel
Primary AC
120VAC, 60Hz, .75 AMP
Min Low AC Detect 98VAC
Battery Charging
All Circuit Impedance Values
27.3VDC @ .5A
Low Battery Detect @20.4VDC
Short Circuit: 0 Ohms
Open Circuit: >10K
Earth Fault to any terminal: 0 Ohms
Main Fuse Specication
1.6A-250VAC
Batt. Fuse Specication
2.5A-250VAC
F.C.C.
CAUTION: De-Energize Unit Prior to Servicing
Requirements
System must be fully tested after installation.
Intended for indoor use in dry locations only.
Separation of power limited wiring from non-power limited wiring must be at
least 1/4".
Install in accordance with installation manual Part Number 5403559 - ___,
and Operating instructions - Part #5406282 - ___.
NFPA Commercial Protected Premises Control Unit for UL Installations:
See Smoke Detector Compatibility Identifer “A”
SERVICE USE AND COMMERCIAL PROTECTED PREMISES UNIT FOR ULC INSTALLATIONS:
WIRING METHODS SHALL BE IN ACCORDANCE WITH CSA C22.1, SAFETY STANDARD FOR
ELECTRICAL INSTALLATIONS, CANADIAN ELECTRICAL CODE, PART I, SECTIONS 32.
LOCAL SERVICE TYPES (NON-CODED): A, M, SS, WF.
13, 70, and NFPA 72.
Alarm activation requiring activation of two or more automatic detection
devices shall not utilize any time delay.
P/N 5406280-C (10/31/2014)
This device has been veried to comply with FCC Rules Part 15,
Class A Operation is subject to the following conditions:
1. This device may not cause radio interference.
2. This device must accept any interference received including any
that may cause undesired operation.
Battery connection (non-power limited).
Use two (2) 12V batteries connected in series.
Service Use for UL Installations:
- Local
- Remote Station
- Proprietary
- Central Station
E.O.L.E.O.L.
BATTERY
- +
PLINK
A- A+
- + - + - + A B
AUXNAC
Programming
Connection
6 Conventional Inputs, fully programmable
& support 2-wire smoke detector
POTS DACT CONNECTION
ALARM SIGNAL ACTIVATION
PRESS LEFT & RIGHT
ARROW KEYS AT SAME
TIME TO TRIGGER ALARM
SIGNAL ACTIVATION.
LAMP TEST: PRESS [ENTER], [5],
PASSWORD, [6]. PRESS THE [ESC] KEY
WHEN DONE.
GROUND
F
U
S
E
BLACK
WHITE
120VAC 60Hz
Connect to separate
unswitched AC circuit
Use 14 AWG or heavier gauge
wire with 600V insulation
WARNING: RADIO FREQUENCY FROM
TRANSMITTING DEVICES MAY IMPAIR INTENDED
OPERATION OF THE CONTROL UNIT. MAINTAIN
A MINIMUM OF 30 CM BETWEEN TRANSMITTING
DEVICES AND CONTROL UNIT.
AVERTISSEMENT : LES RADIOFRÉQUENCES ÉMISES
PAR LES DISPOSITIFS DE TRANSMISSION
PEUVENT NUIRE AU FONCTIONNEMENT PRÉVU
DU POSTE DE CONTRÔLE. MAINTENIR UNE
DISTANCE D’AU MOINS 30 CM ENTRE LES
DISPOSITIFS DE TRANSMISSION ET LE POSTE DE
CONTRÔLE.
E.O.L.E.O.L.E.O.L.E.O.L.E.O.L.
INPUT3
- + B- B+
INPUT4 INPUT5INPUT6
- + - + - +
INPUT2INPUT1
- +
Line2 In Line2 Out Line1 In Line1 Out
Tip Ring Tip Ring Tip Ring Tip Ring
FUSE
Battery -
Battery +
ONLY DETECTORS THAT ARE SHOWN IN
THE COMPAT IBILITY LIST ARE TO BE USED.
12 3
45 6
78
0
ESC
ENTER
POWER ON
EARTH FAULT
ALARM
ALARM SIGNAL ACTIVATION
PRESS LEFT + RIGHT ARROWS
SUPERVISORY
TROUBLESILENCED
FIRE
DRILL
ACK
NOWLEDGE
SIGNAL
SILENCE
RESET
9
NYC Fire Dept. Certicate of Approval #6159 & 6184
