Potter PFC-6006 - Main Board Circuit Wiring Types; Cabinet Dimensions

2-5
PFC-6006 • 5403559 • REV D • 11/17
Refer to table below for a breakout of the different wiring requirements shown by circuit type:
Table 5: Main Board Circuit Wiring Types
Wiring Type
Type of Circuit
Voltage
Power
AC Connection High Voltage Non-Power Limited
Battery Connection Low Voltage Non-Power Limited
Input Circuits Low Voltage Power Limited
Notication Device Circuit (NAC) Low Voltage Power Limited
P-Link RS-485 Connections Low Voltage Power Limited
Phone Line – DACT High Voltage Non-Power Limited
AUX Power Low Voltage Power Limited
Cabinet Dimensions

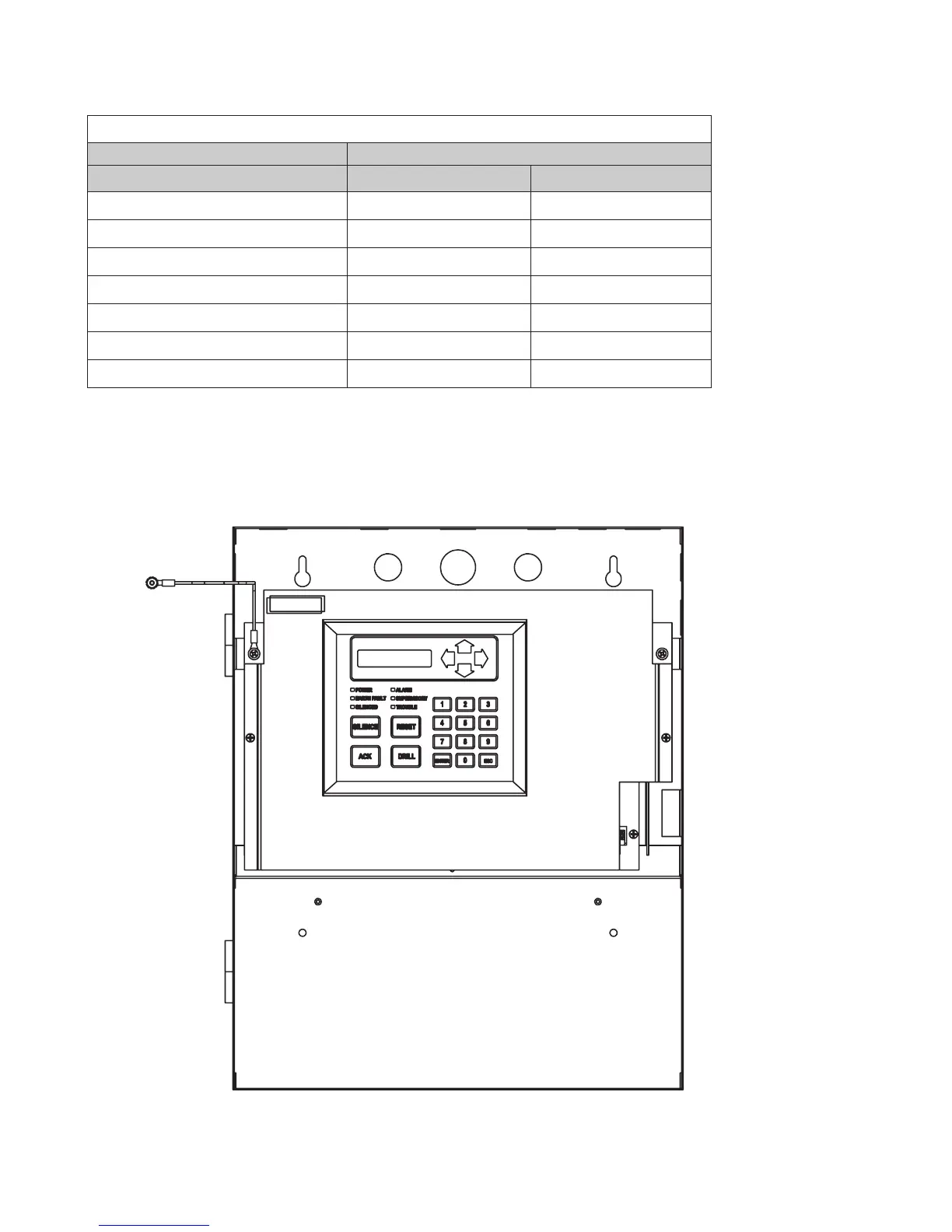

Figure 2. PFC-6006 Main Board Module Shown Installed in Cabinet (shown with door removed)
DWG #559-1
