5-37
PFC-6006 • 5403559 • REV D • 11/17
General System Functions
Job Details
Site specic information, such as company name, address and phone numbers may be entered in this window. This information is
stored in the panel and is used to identify the panel when using e-mail reporting options. Please refer to the gure shown below.
To enter site information:
1. Click the Job Details program option. The Job Details window displays.

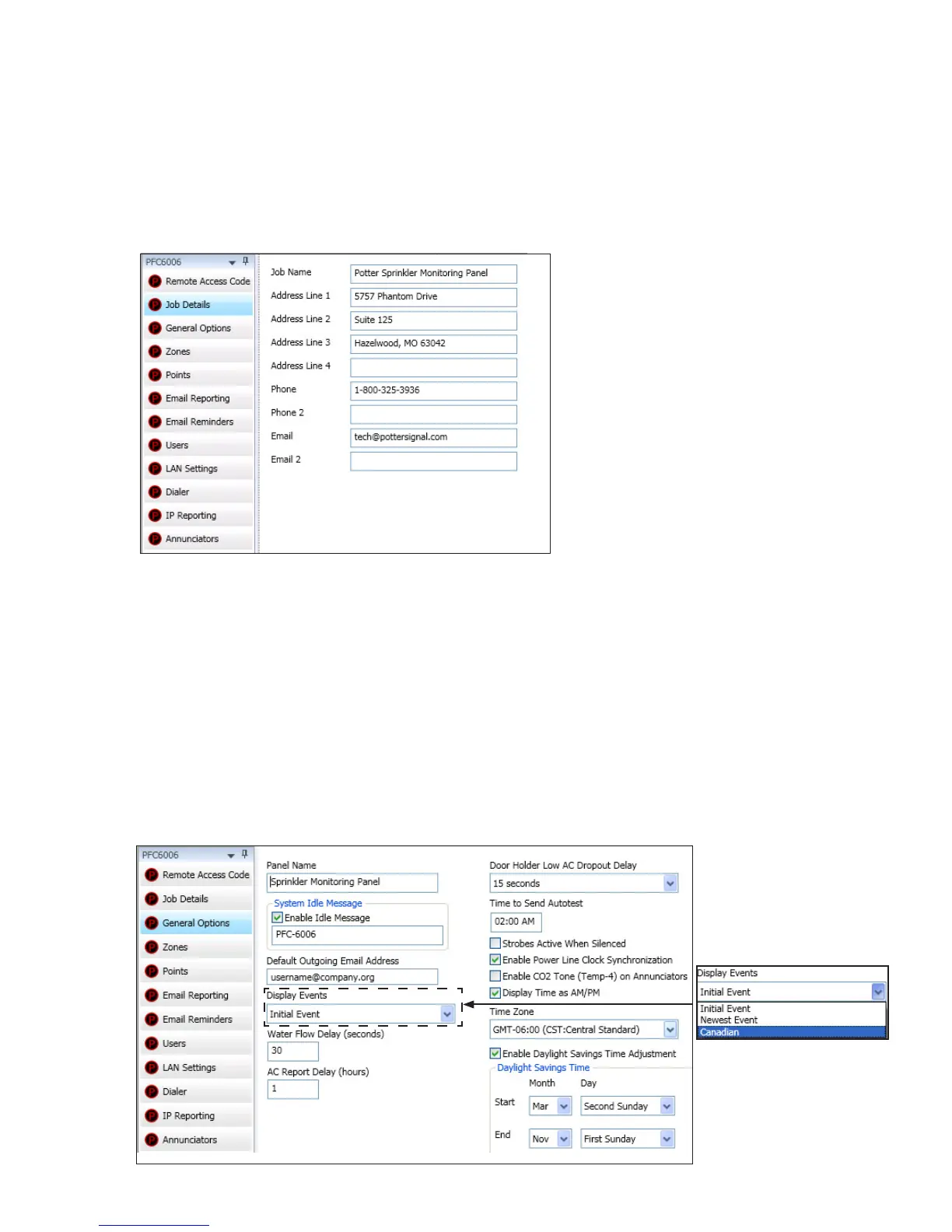

Figure 38. Job Details Window
2. Click in each applicable eld to enter information.
Note: You may also press the TAB key to move to next eld.
General Options
The General Options window contains a variety of general system settings, such as the panel’s default name, idle message, display
events, and specic time the Autotest will be sent to the monitoring station. Refer to the gure below for an example of this
window.
Important Setup Notes: For Canadian Users Only!
1. Canadian display settings are selected from the "Display Events–Canadian" option, as shown in the gure below.
2. All Troubles, Alarms, and Supervisory events will display on the LCD according to ULC-S527 requirements. For more
information, please refer to Section 4: Operations, Canadian Events Display for an explanation and examples of event
conditions.
Figure 39. General Options Window & Display Events Field Showing Canadian Option
