Section 4: Operation
This section provides an overview of the control panel’s basic operations, which includes the status LEDs, function pushbuttons,
and a Control Panel Menu Tree quick reference sheet.
Control Panel Basic Operation
The control panel is comprised of a two (2) line x 16-character LCD display panel, arrow keys, push button function keys, status
LEDS, and the numeric keypad. A description of each component is included in this section; please refer to the gure shown
below.

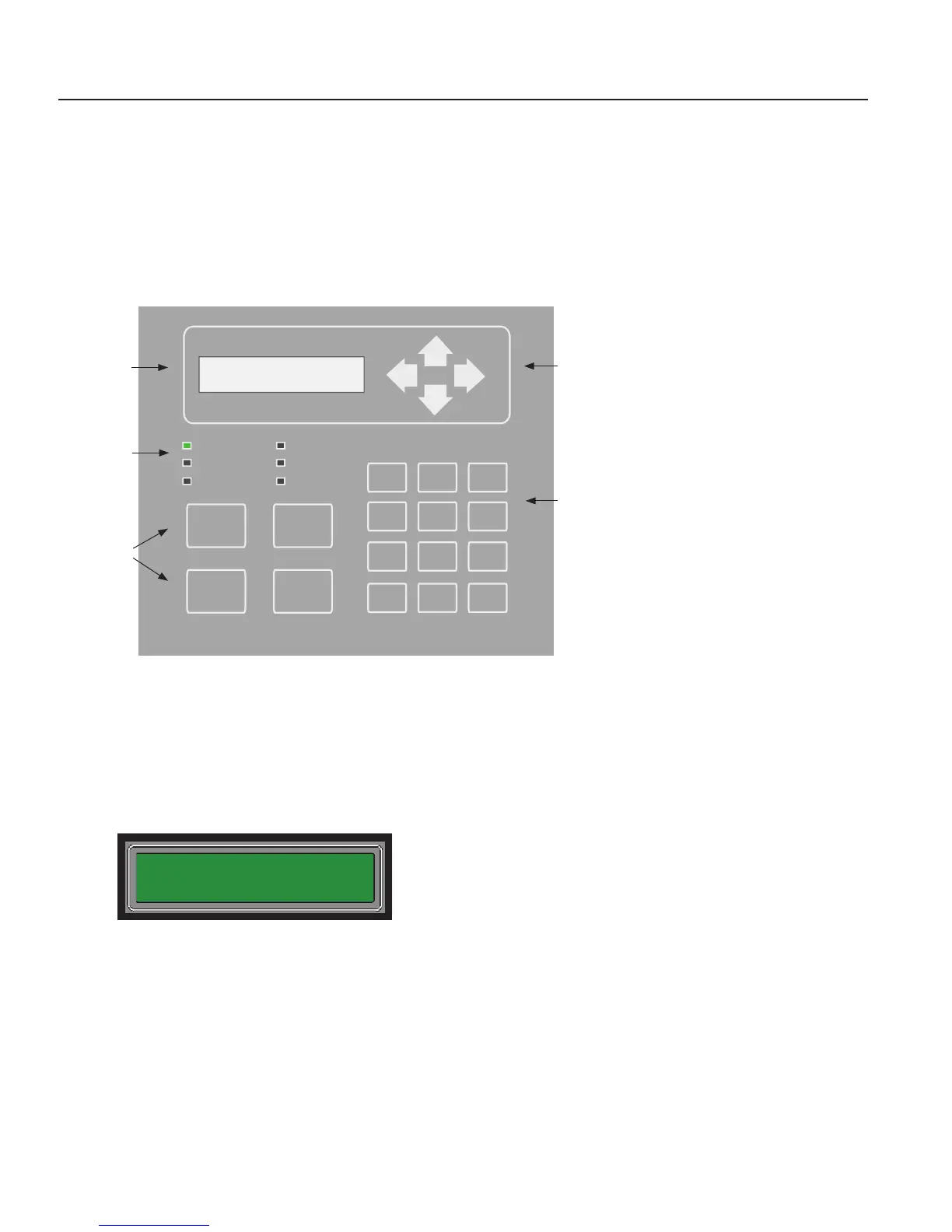

Figure 14. PFC-6006 Control Panel Display
Note: Authorized system operators must use a key to open the outer door of the cabinet.
LCD Display
The LCD panel displays the standard Start-up menu as shown below. The LCD displays up to thirty-two (32) characters of
information displays, providing important feedback to system users, i.e., system messages, status information, trouble conditions,
or input changes. The LCD also provides access to the Main Menu for daily system operations and specic programming
functions (refer to “Section 5: Programming – Menu Functions” for details on these topics).
Figure 15. LCD Start-Up Screen
Note: You may customize the Start-up screen to display a specic job site name or other relevant descriptive text.
SIGNAL
SILENCE
POWER ON
EARTH FAULT
SILENCED
ALARM
SUPERVISORY
TROUBLE
RESET
ACK
NOWLEDGE
FIRE
DRILL
1 2 3
4 5 6
7 8 9
0
ESCENTER
ALARM SIGNAL ACTIVATION
PRESS THE LEFT + RIGHT ARROWS
PFC-6006
11/11 21:20:00
PFC-6006
11/11 21:20:00
Status
LEDs
Numeric Keypad
Arrow Keys
Function
Pushbuttons
LCD
Display
