P-Link Addresses
Every P-Link device has a ve position dip switch which is used to program the device address ranging from one (1) to thirty-one
(31). Use the chart below to reference Dip Switch Settings:
Remote Annunciators Installation (RA-6075 or RA-6006)
Up to four (4) annunciators may be connected to the main sprinkler monitoring panel. The RA-6075 or RA-6006 provides a
2 x 16 character LCD display, along with standard function and numeric keys. It is listed and designed be mounted on a at non-
condensing surface or electrical box.
Setting Addresses
An annunciator's address is set by dip switch S1, which is located on the back of the annunciator. The address must be set
in the range of one to thirty-one (1–31) to be recognized by the panel. (Refer to chart shown above for P-Link DIP switch
programming.)

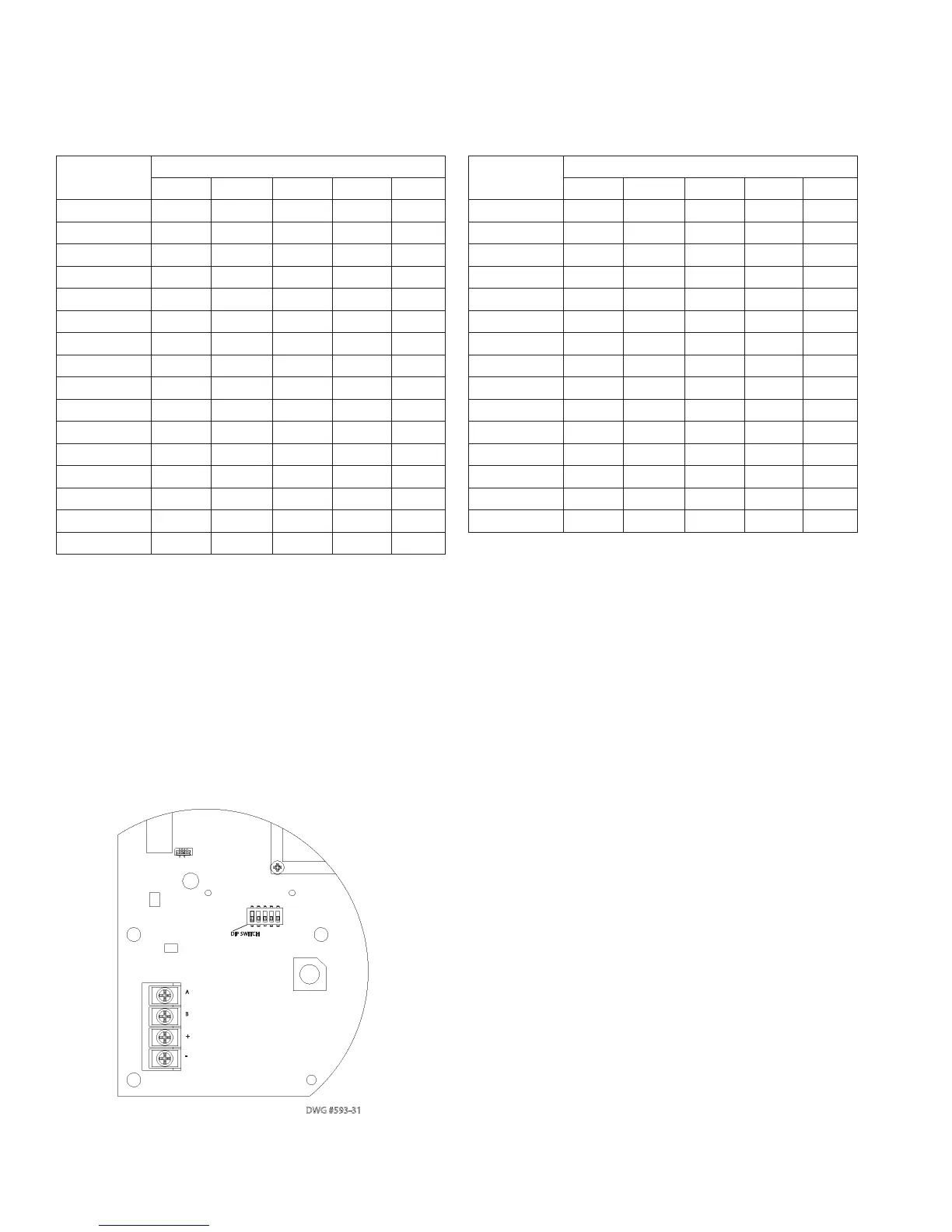

Figure 11. Annunciator Back Panel View
Annunciator
Address
Dip Switch Settings
SW-1 SW-2 SW-3 SW-4 SW-5
1 On Off Off Off Off
2 Off On Off Off Off
3 On On Off Off Off
4 Off Off On Off Off
5 On Off On Off Off
6 Off On On Off Off
7 On On On Off Off
8 Off Off Off On Off
9 On Off Off On Off
10 Off On Off On Off
11 On On Off On Off
12 Off Off On On Off
13 On Off On On Off
14 Off On On On Off
15 On On On On Off
16 Off Off Off Off On
Annunciator
Address
Dip Switch Settings
SW-1 SW-2 SW-3 SW-4 SW-5
17 On Off Off Off On
18 Off On Off Off On
19 On On Off Off On
20 Off Off On Off On
21 On Off On Off On
22 Off On On Off On
23 On On On Off On
24 Off Off Off On On
25 On Off Off On On
26 Off On Off On On
27 On On Off On On
28 Off Off On On On
29 On Off On On On
30 Off On On On On
31 On On On On On
DIP SWITCH
A
B
+
-
DWG #593-31
