Status LEDs
The control panel’s LEDs communicate system conditions by illuminating and/or ashing the applicable green, red or amber
indicators. These are described in the table below.

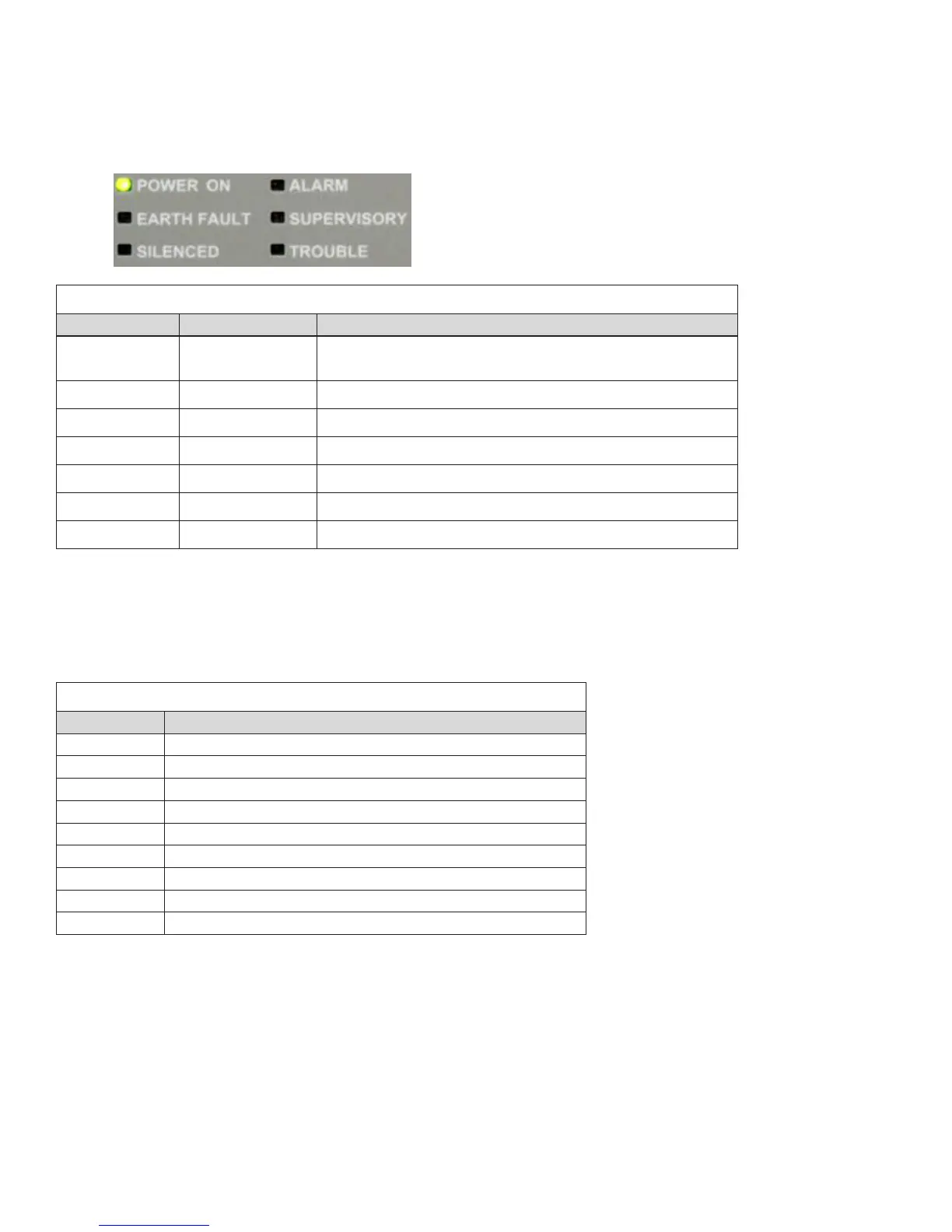

Figure 17. Control Panel Status LEDs
Table 8: Status LEDs
LED Type LED Color/Action Description
POWER ON Steady Green
Power is present.
Note: If power is absent for more than 5 seconds, LED will extinguish.
ALARM Flashing Red An alarm device is active.
ALARM Steady Red An alarm device is acknowledged.
EARTH FAULT Flashing Amber A ground fault is present.
SUPERVISORY Flashing Amber A supervisory condition is present.
SILENCED Steady Amber A fault condition has been silenced.
TROUBLE Flashing Amber A fault condition is present.
Canadian Events Display
When the panel is congured to display events in Canadian format, the LCD displays the type of condition (TBL, ALM or
SUP) and the corresponding zone, input circuit number or specic alpha character that represents the current condition(s). Refer
to the table below for descriptions of condition types and codes. (Please see "Section 5: Programming, General Options" for
information on selecting this option.)
Table 9: Trouble, Alarm & Supervisory Conditions
Code Description
N
Notication Appliance Circuit (NAC)
A
Auxiliary Power
1-6
Input(s) Circuits
D
DACT
B
Battery (indicates missing or charger)
P
P-Link
I
IP
E
Earth Fault
S
System
