Downloading a Conguration File
To download the conguration le:
1. Click the Download Conguration File to Panel icon or right click from the “Transfers” region, then click “Add”.
The Transfer dialog box displays.

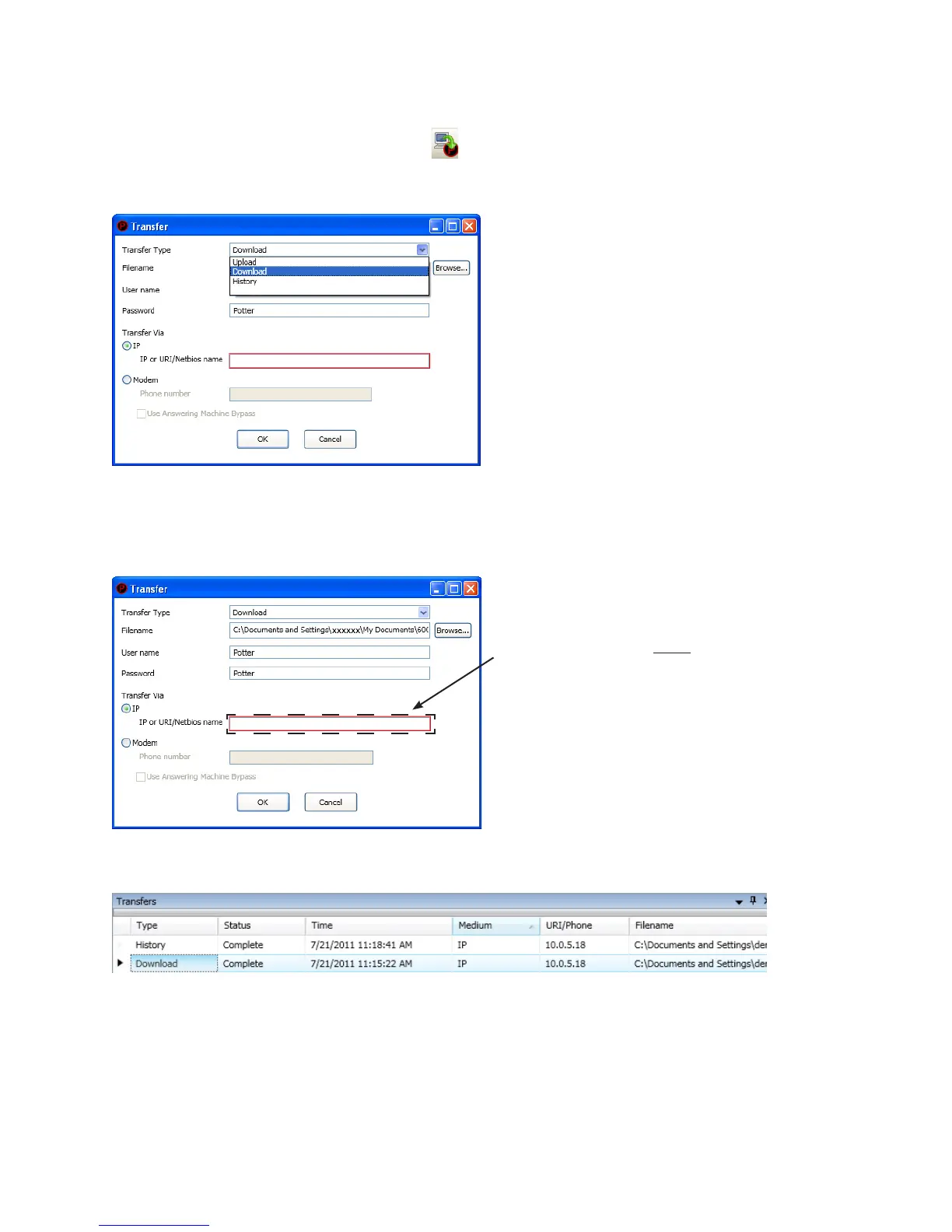

Figure 27. Example of Transfer – Download Dialog Box
2. Verify that Download is selected in the “Transfer Type” eld.
3. Enter the le name in the “Filename” eld or click the Browse button to select le name.
4. Enter the IP address in the “Transfer Via IP” eld.
Figure 28. Transfer - Download Dialog Box
5. Click OK. The Transfers window displays the transfer progress.
Figure 29. Example of Transfers Window Showing Download Completed
Note: To capture the panel’s unique IP address:
1. Disconnect the Ethernet cable from panel.
2. The message “Ethernet Lost" displays indicating
connectivityislost.
3. Reconnect the cable, and write down the
IP address shown.
