Preproofer 770 - Setup Electronic Box (HW Revision 1 - OLD STYLE)

13
Setup Electronic Box – HW Revision 1 – OLD STYLE
Power Supply Setup for Electronic Box
13-10 Preproofer x700 / x900 – HW Installation Manual
PP x700/x900 v1.7
13 Setup Electronic Box – HW Revision 1 – OLD STYLE
13.1 Power Supply Setup for Electronic Box

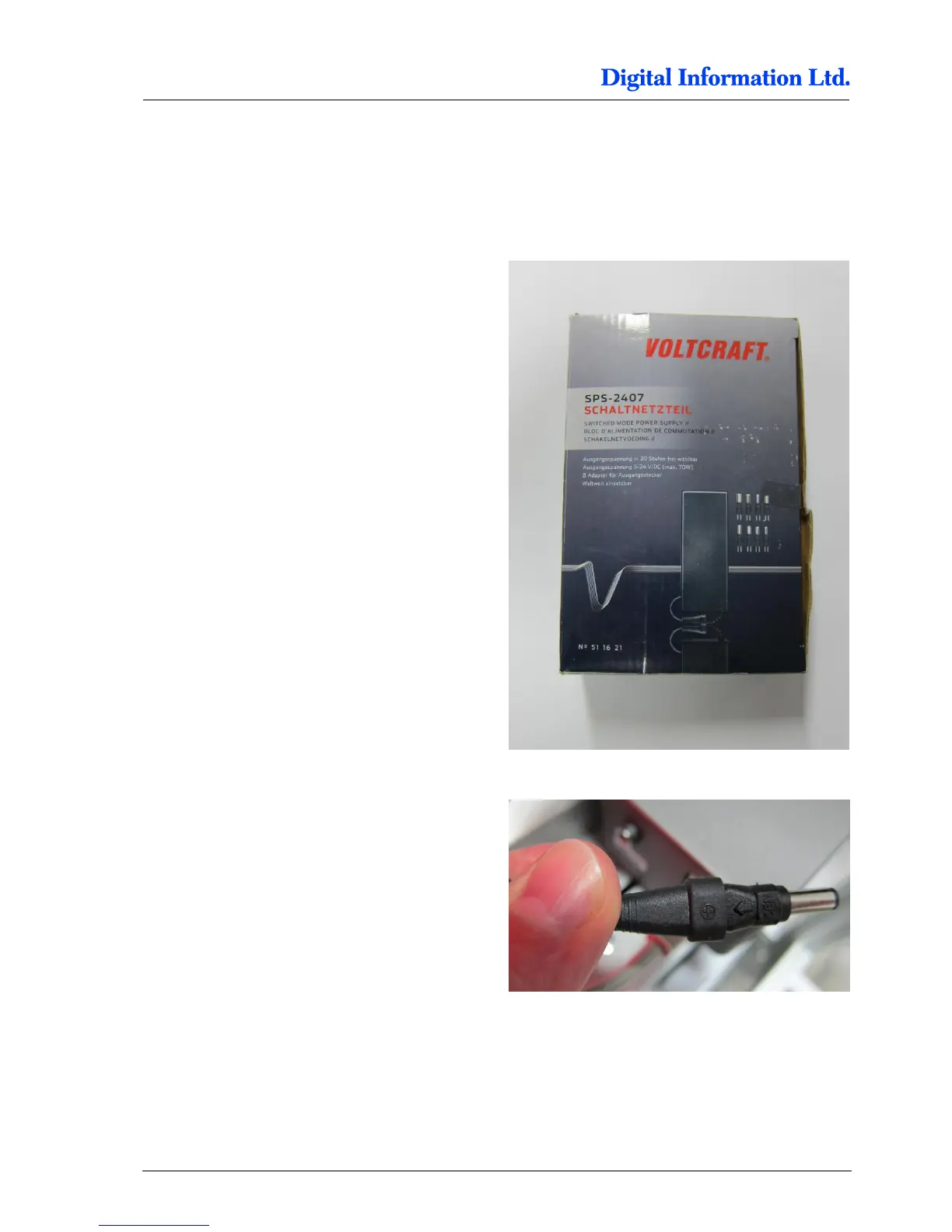

Setup the power supply for the electronic box:
 Voltage 23V
Setup the connector like shown.
