Preproofer 770 - Position the Cross Beam for FRONT Printer

Assembly
Cross Beams
5
Preproofer x700 / x900 – HW Installation Manual 5-17
PP x700/x900 v1.7

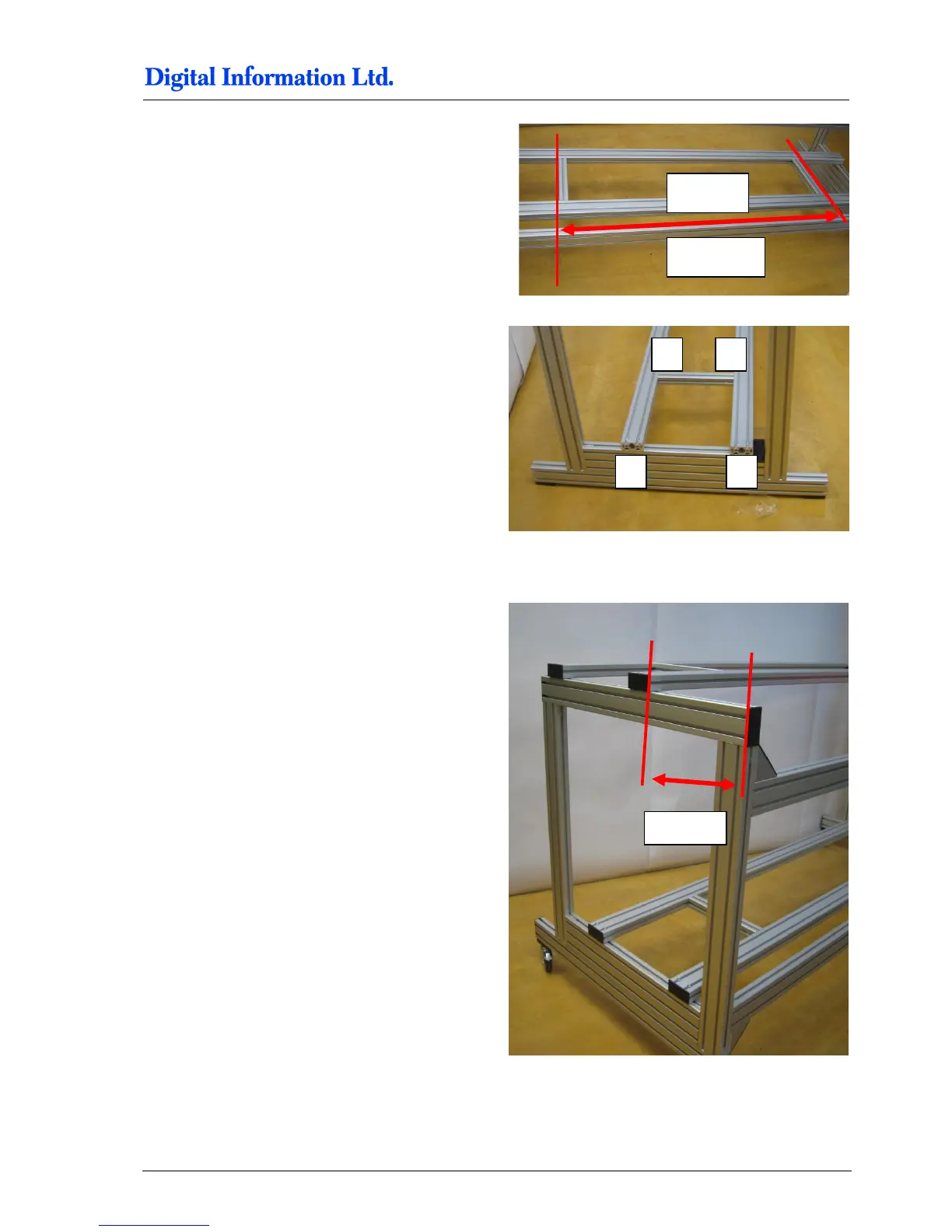

Position the second distance holder (Pos 8, brown
colored, 305 mm) 1285 mm from the first distance
holder profile.
Fix only the screw which goes to the profile labeled
“A”.
The picture shows the sequence for tighten up the
screws in the correct order.
Finalize the setup of the BACK profile by tighten the
screws from the distance holder (3)
Afterwards, tighten the screws which go to the side
frame (4).
5.4.7 Position the Cross Beam for FRONT Printer
Tighten the cross beam profile for the front printer
shown on the right first.
The distance between the edge of profile Pos 5 and
the cross beam profile Pos 1 is 300mm.
Fix only the screw which goes to the profile labeled
“A”.
1285 mm
Profile A
1
2
3
4
300 mm
