Preproofer 770 - Mount Cross Member Top

5
Assembly
Mount Cross Member Top
5-10 Preproofer x700 / x900 – HW Installation Manual
PP x700/x900 v1.7

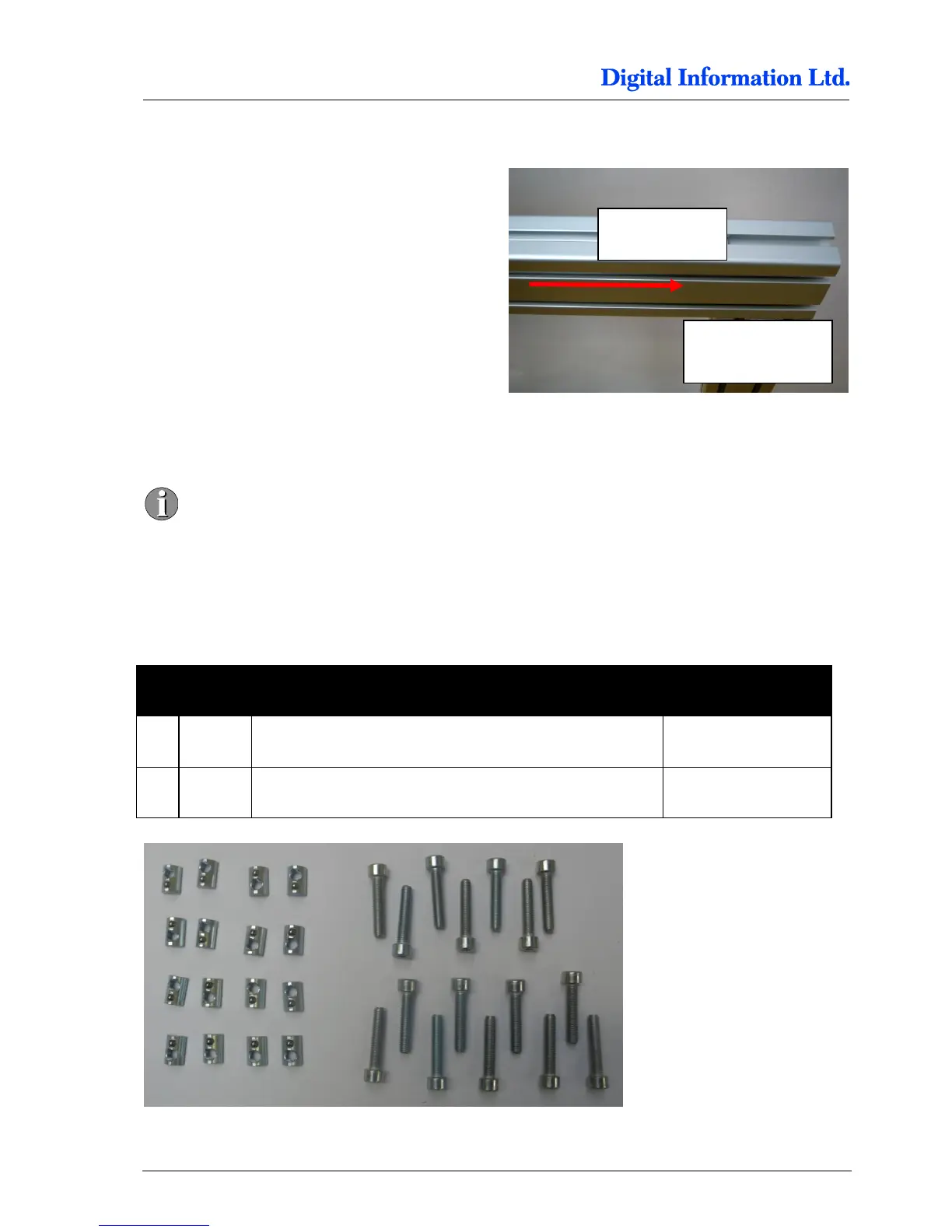

5.3 Mount Cross Member Top
On both sides, shift the profile Pos 5 into the pillar
profiles.
5.4 Cross Beams
Don’t fix the screws tightly until the manual
recommends it. The profiles should be still
moveable until the frame is fixed finally!
5.4.1 Additional Parts
Locate the following parts:
Pos
Amount
Name
Dimension in mm
37
16
Allen screw, fixing Cross-member for printer top / bottom,
Pos 1
M8 x 40
38
16
Slot nut
M8
Pos 5
Pillar Pos 2
