Preproofer 770 - Mount the Paper Tension Guide

9
Paper Guide / Camera System
Add Paper Guide and Paper Tension Parts
9-16 Preproofer x700 / x900 – HW Installation Manual
PP x700/x900 v1.7

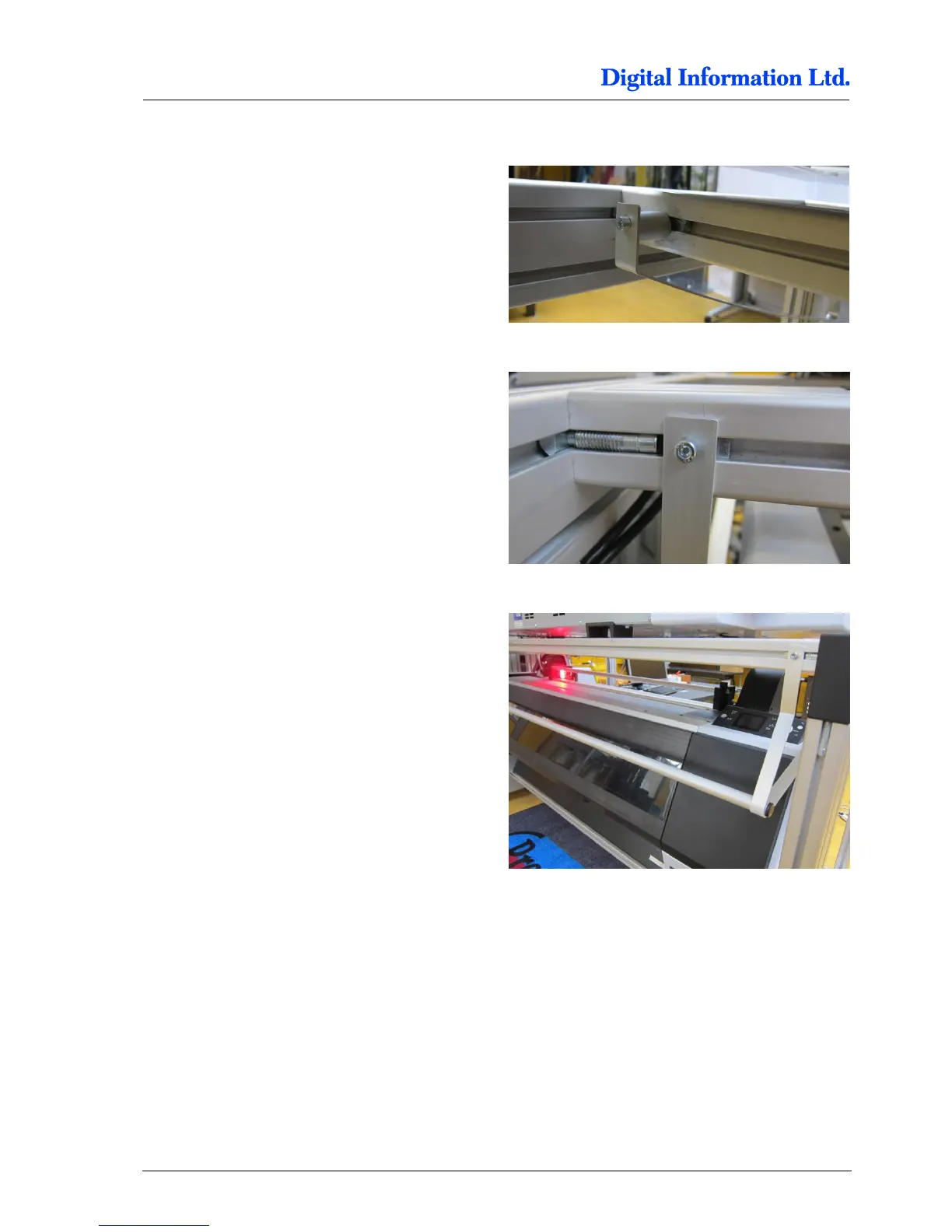

9.9.3 Mount the Paper Tension Guide
Use the M5 x 40 screws with the short aluminum
tube to fix the guide to the profile.
Mount the end of the guide to the slot nut in the
second profile. Use the M5 x 10 screws.
Do the same on the opposite side.
Fully mounted Paper Tension guide.
