Preproofer 770 - Mount Brackets to Frame Sides

Assembly
Mount Bracket to Frame Sides
5
Preproofer x700 / x900 – HW Installation Manual 5-5
PP x700/x900 v1.7
5.2 Mount Bracket to Frame Sides
5.2.1 Additional Parts

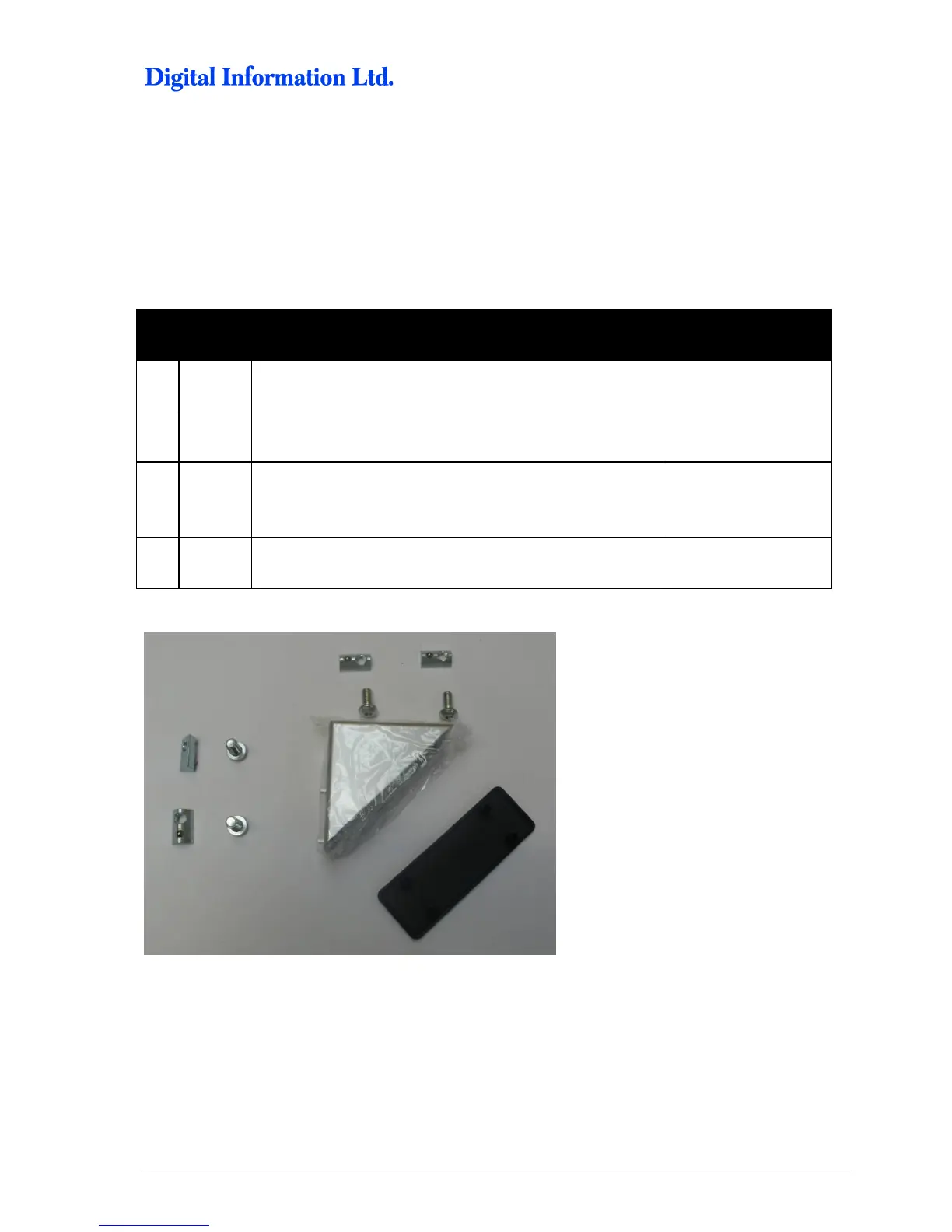

Locate the following parts:
Pos
Amount
Name
Dimension in mm
33
4
Bracket for the “stabilization cross-member” Pos 6
80 x 80
34
4
Cover, black
112 x 40
35
16
Allen screw with rounded head,
Fixes base plate to profile
M8 x 16
36
16
Slot nut
M8
.
