7 Prepare the FRONT Printer
7.1 Wire the Control Panel Front Printer
7.1.1 Take off the Control Panel

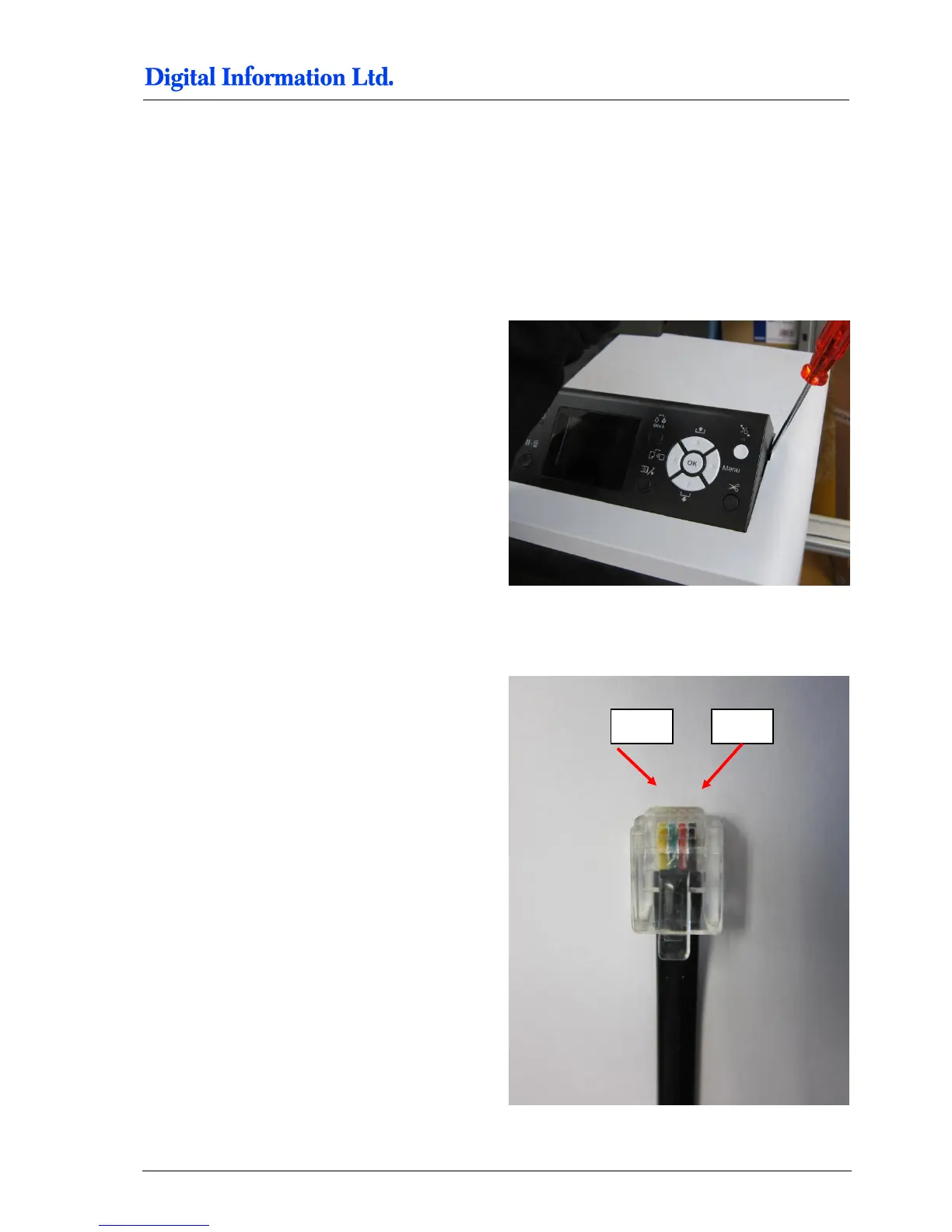

Remove the control panel like shown.
Unplug the panel from the flat ribbon cable.
Take off the metal cover.
7.1.2 Solder the Wires to the Panel
Cable layout is shown on the right.
Pin 5
Pin 2
