Preproofer 770 - Mount Camera and LED Bar Light; Camera and Bar Light on Front Printer; Additional Parts

Paper Guide / Camera System
Camera and Bar Light on Front Printer
9
Preproofer x700 / x900 – HW Installation Manual 9-19
PP x700/x900 v1.7

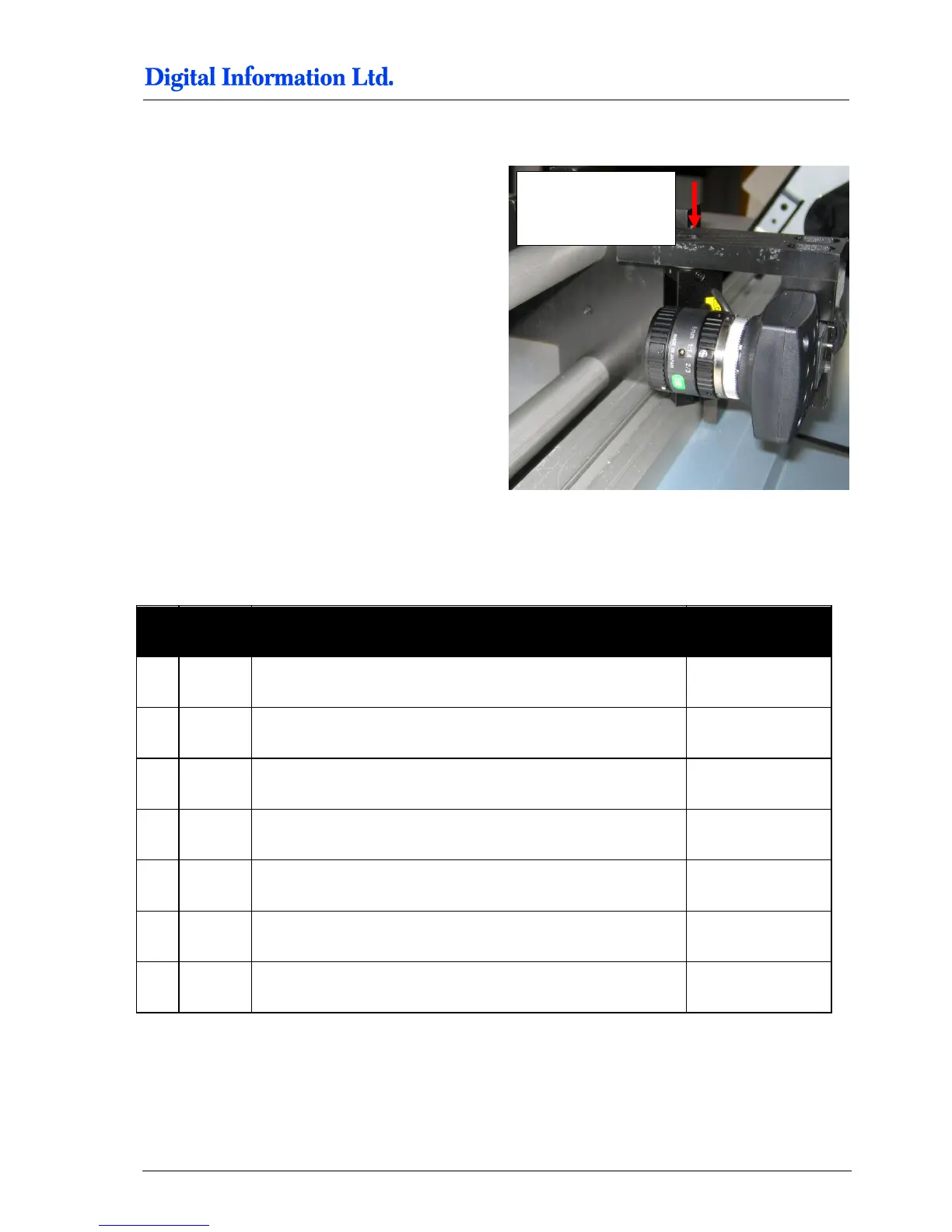

9.10.2 Mount Camera and LED Bar Light
Mount first the LED Bar Light; use the M3x10 screw
to fix it to the holder.
Set the focus on the lens to “Close Up” and the
aperture to approx 8.
Mount the camera.
9.11 Camera and Bar Light on Front Printer
9.11.1 Additional Parts
Pos
Amount
Name
Dimension in mm
71
1
Screw M3 x 10 with M3 washer
72
1
Screw for Camera
73
1
Camera
74
1
Lens
75
1
Ring distance holder
76
1
LED Bar Light, red
77
2
Screw M4 x 16
Hole to fix the LED
Bar Light to the
holder
