9.6.2 Mount Paper Guide Tubes

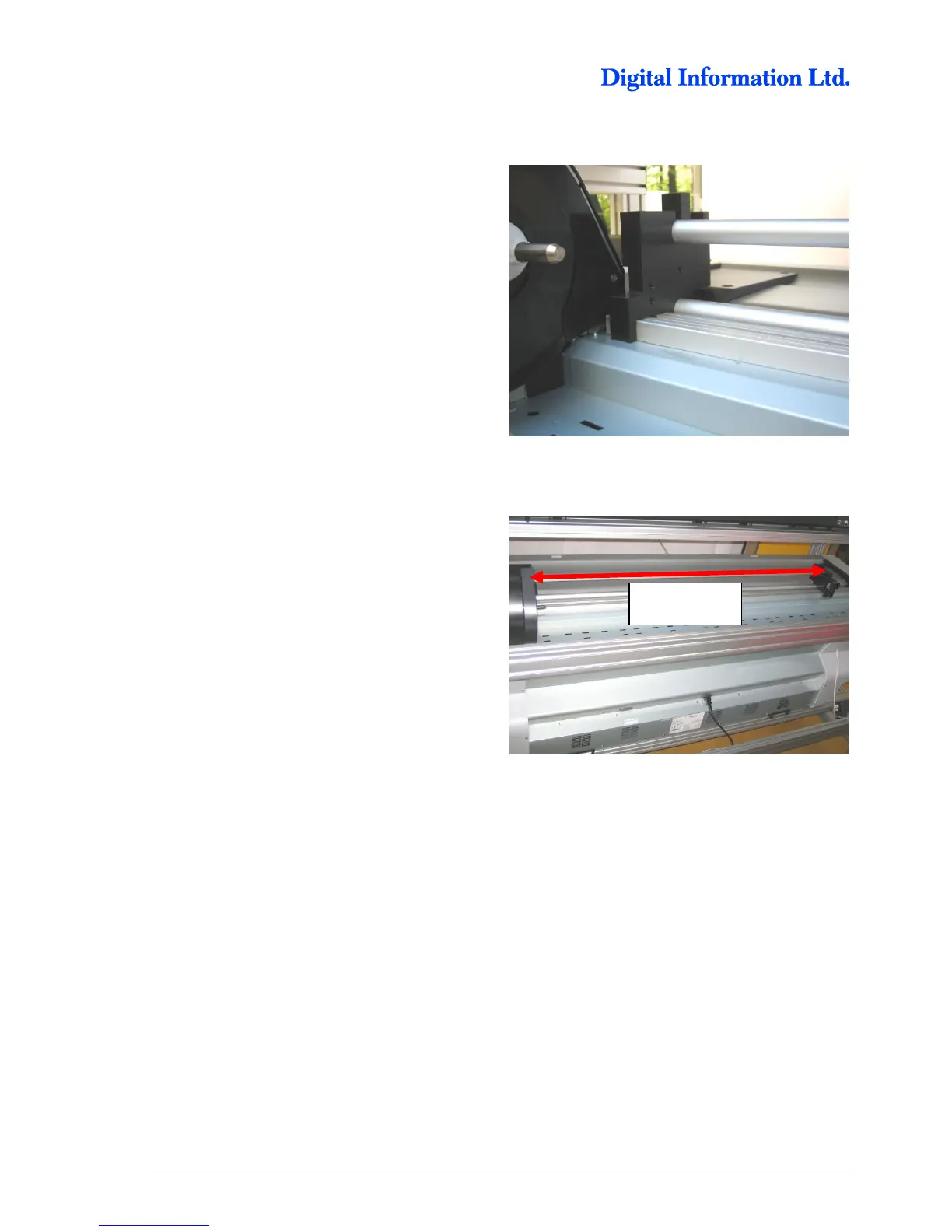

Mount the two tubes into the side holder left.
Shift the right sided side holder into the tubes.
The distance between the two side holders is
1166mm, measured from the outer side of the side
holders.
1166mm
