Preproofer 770 - Assembly Camera Holder Front Printer; Parts Used

9
Paper Guide / Camera System
Assembly Camera Holder Front Printer
9-6 Preproofer x700 / x900 – HW Installation Manual
PP x700/x900 v1.7
9.4 Assembly Camera Holder Front Printer

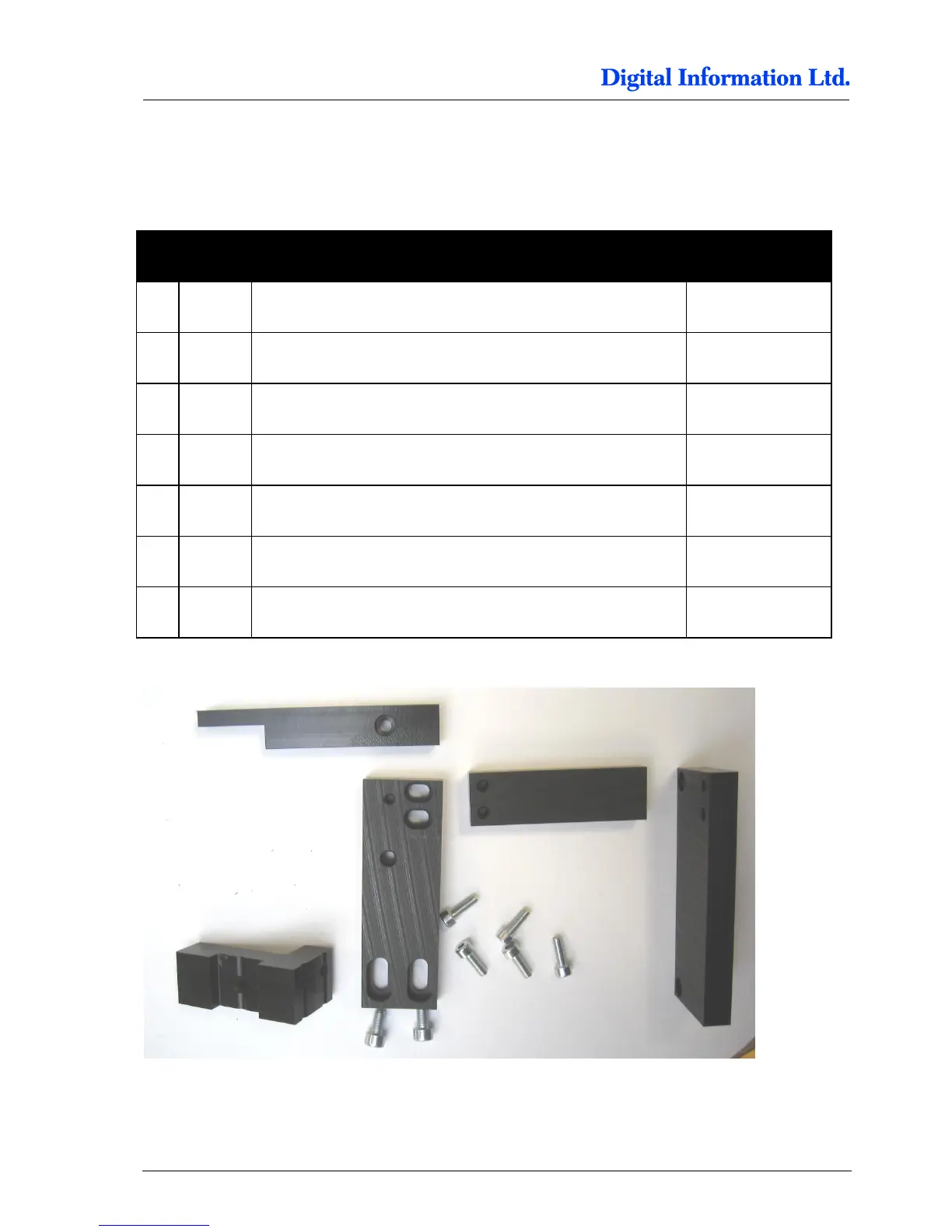

9.4.1 Parts used
Pos
Amount
Name
Dimension in mm
07
1
Camera holder
08
1
Camera holder for Front printer
09
1
Camera holder Front Printer, mount to Epson Printer
10
1
Distance holder, set between Pos 8 and 9
11
1
Paper positioning support
60
2
Screws M5 x 10
61
5
Screws M4 x 12
