Preproofer 770 - Brackets for Fixing the Printer to the Frame; Additional Parts

Assembly
Brackets for Fixing the Printer to the Frame
5
Preproofer x700 / x900 – HW Installation Manual 5-19
PP x700/x900 v1.7

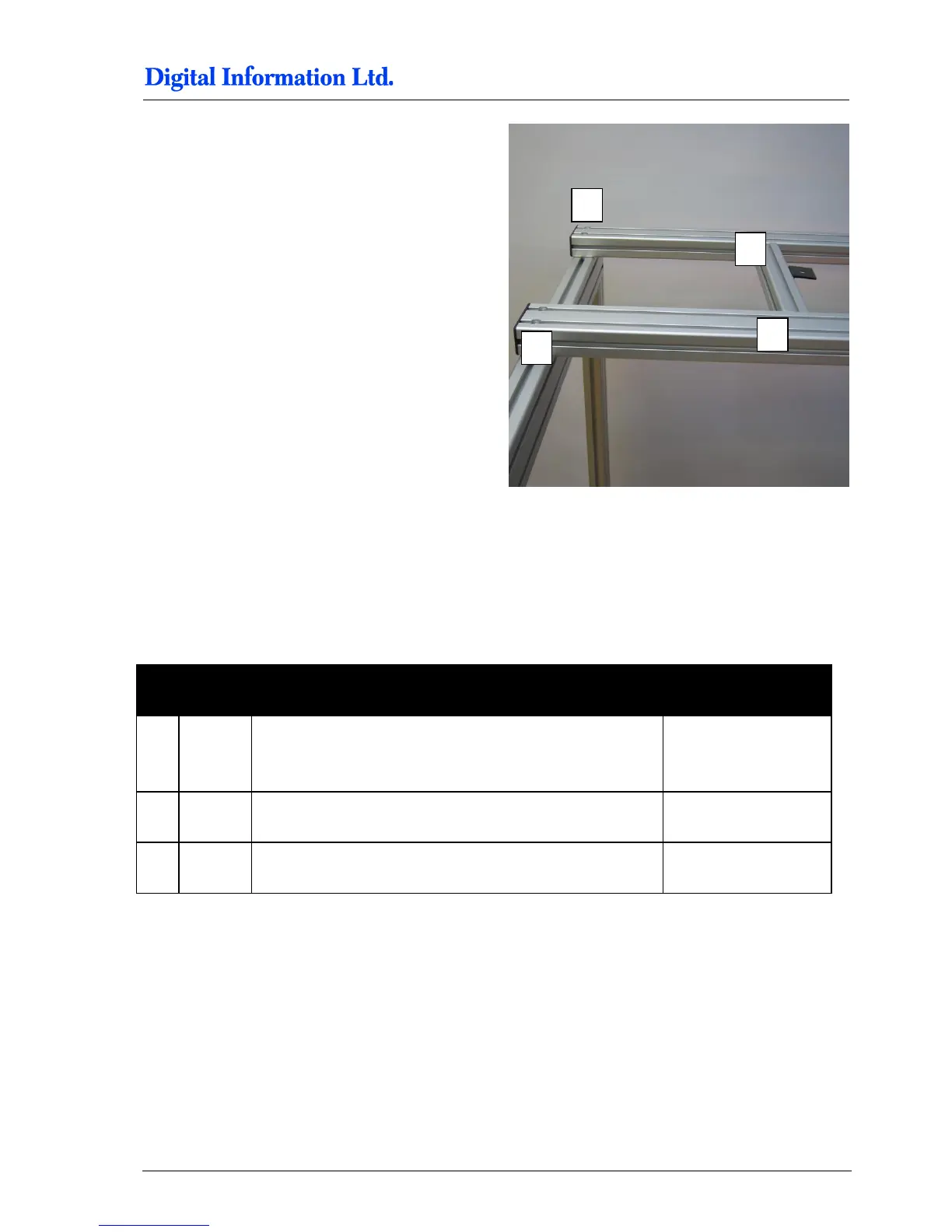

The picture shows the sequence for tighten up the
screws in the correct order.
Finalize the setup of the FRONT profile by tighten
the screws from the distance holder (3)
Afterwards, tighten the screws which go to the side
frame (4).
5.5 Brackets for Fixing the Printer to the Frame
5.5.1 Additional Parts
Pos
Amount
Name
Dimension in mm
27
4
Bracket
Fixes the printers to the frame
40 x 40
28
4
Allen screw with countersunk head
M8 x 10
29
4
Slot nut
M8
1
2
3
4
