Preproofer 770 - Setup CUT Parameters

13
Setup Electronic Box – HW Revision 1 – OLD STYLE
Setup the CUT parameters
13-12 Preproofer x700 / x900 – HW Installation Manual
PP x700/x900 v1.7

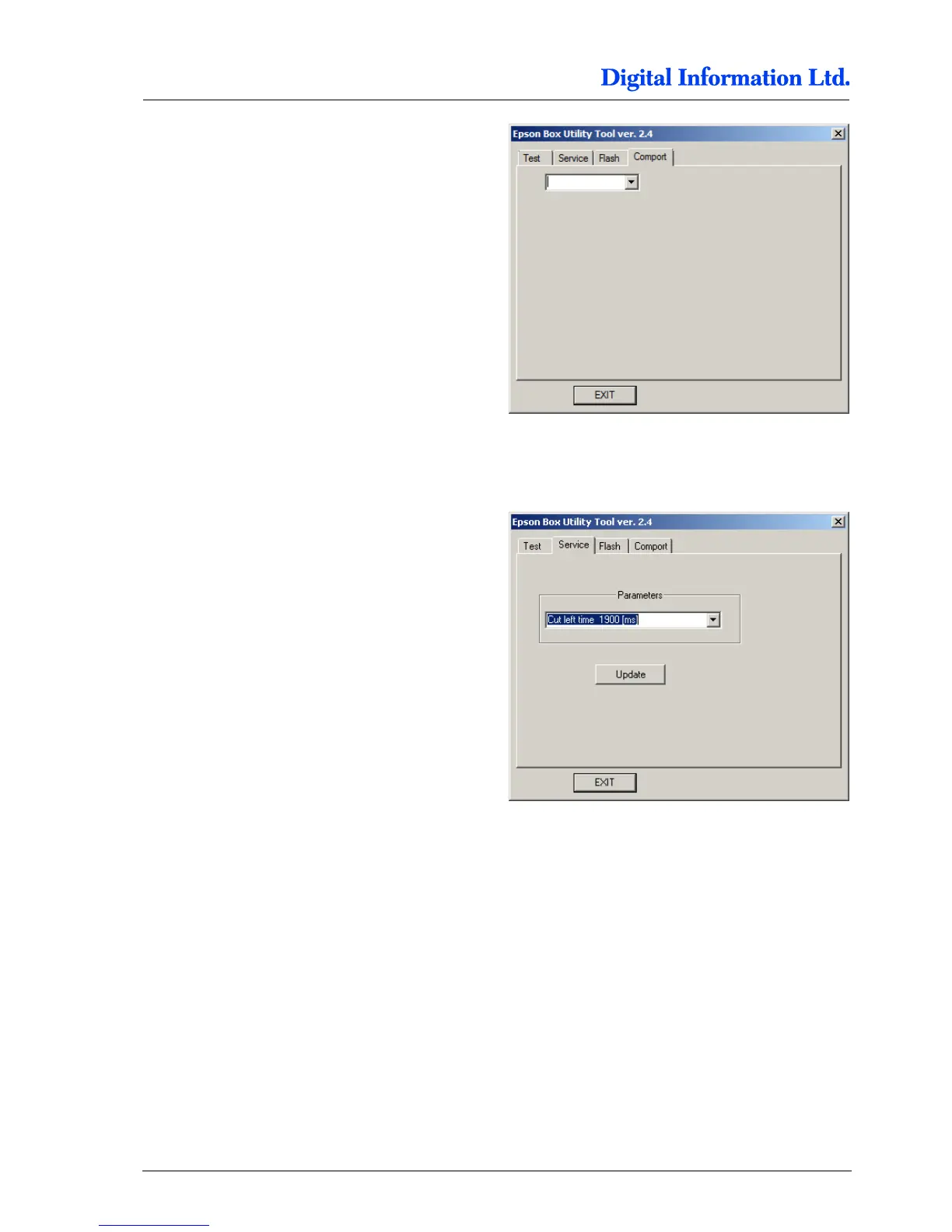

Select the COM port here. The COM port is
redirected to the IP address of the Lantronix device.
13.4 Setup the CUT parameters
Select the Service tab and set the parameter “Cut
left time” to:
 for Printer Model 9x00 :2200
 for Printer Model 7x00 :1100
