Assembly

Cross Beams

Preproofer x700 / x900 – HW Installation Manual 5-11

PP x700/x900 v1.7

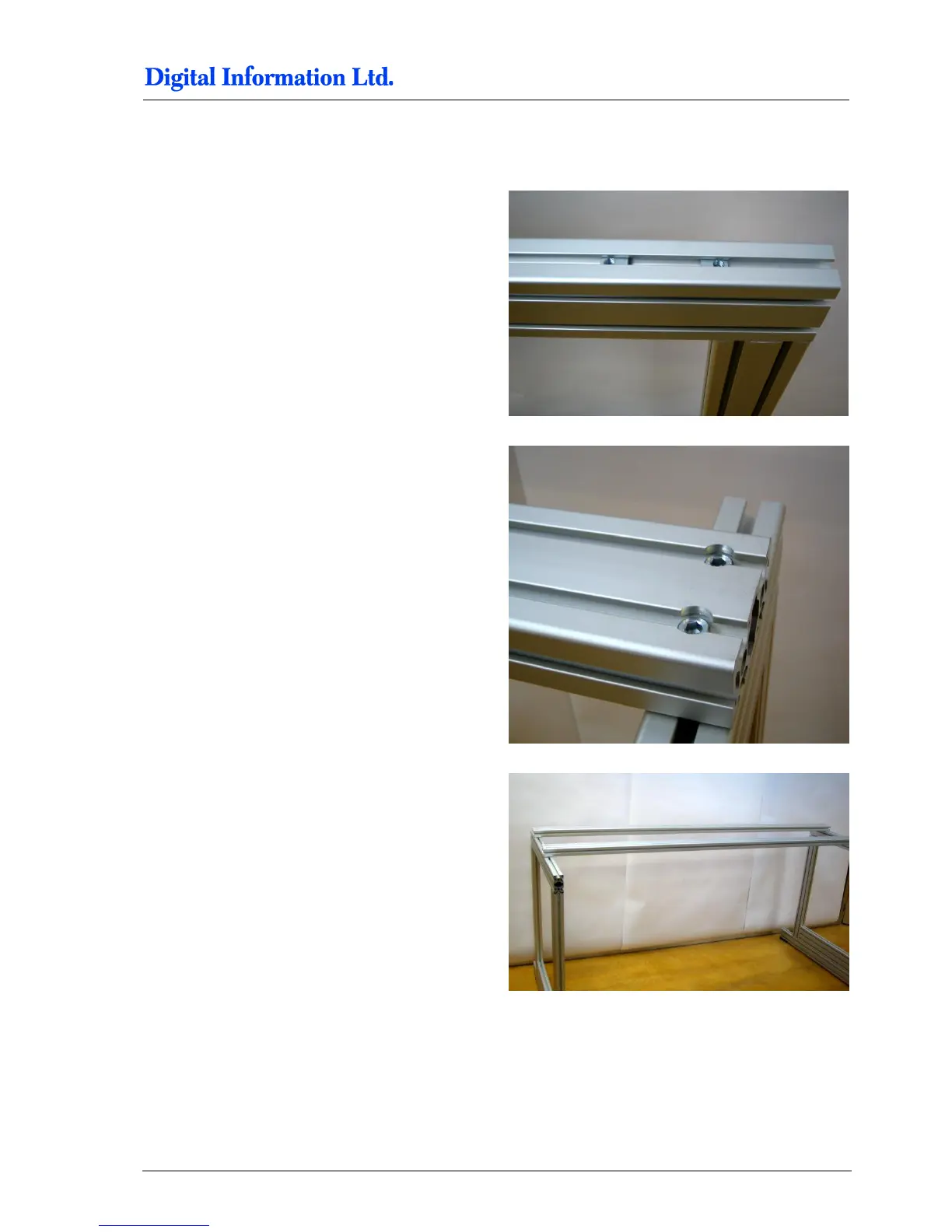

5.4.2 Mount the Cross Beam for TOP Printer

Slide on the top profile (Pos 5) four M8 slot nuts

Put the two cross beams (Pos 1, green colored,

2105 mm) on it. Check that the notch for the screw

head is on top. Use for each side two M8 screws to

fix the cross beam to profile Pos 5.

Frame with mounted cross beams for printer top.
