Preproofer 770 - Assembly

9
Paper Guide / Camera System
Paper Bow for Back Printer
9-22 Preproofer x700 / x900 – HW Installation Manual
PP x700/x900 v1.7
81
1
Screw with big head
11
1
Distance holder back
82
1
M5 slot nut, thin type

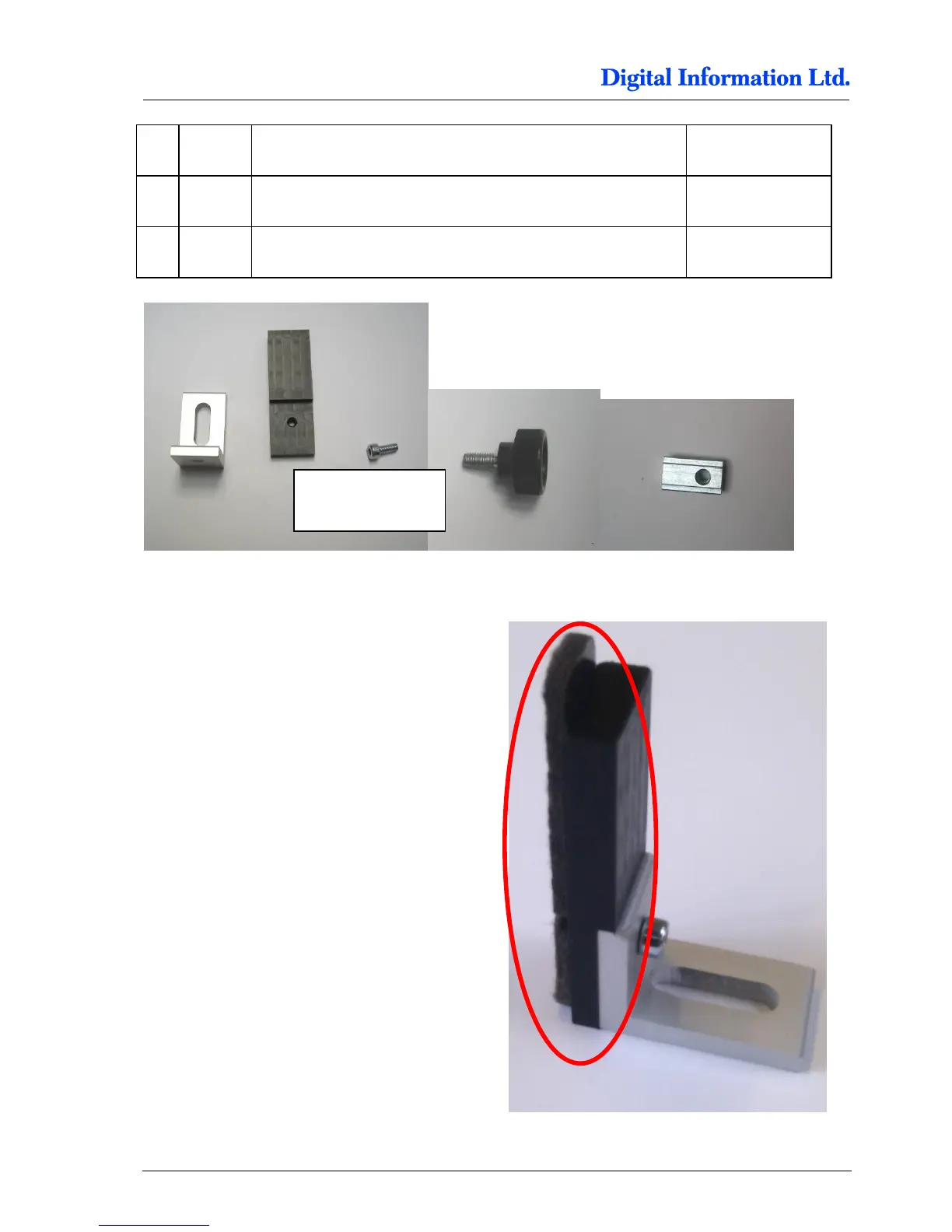

9.12.2 Assembly
Put the screw with the big head through the bracket.
Then mount the holder with the M4 screw to the
bracket. Mount the felt.
Screw M4 x 10,
black with flat head
