5.4.6 Position the Cross Beam for BACK Printer

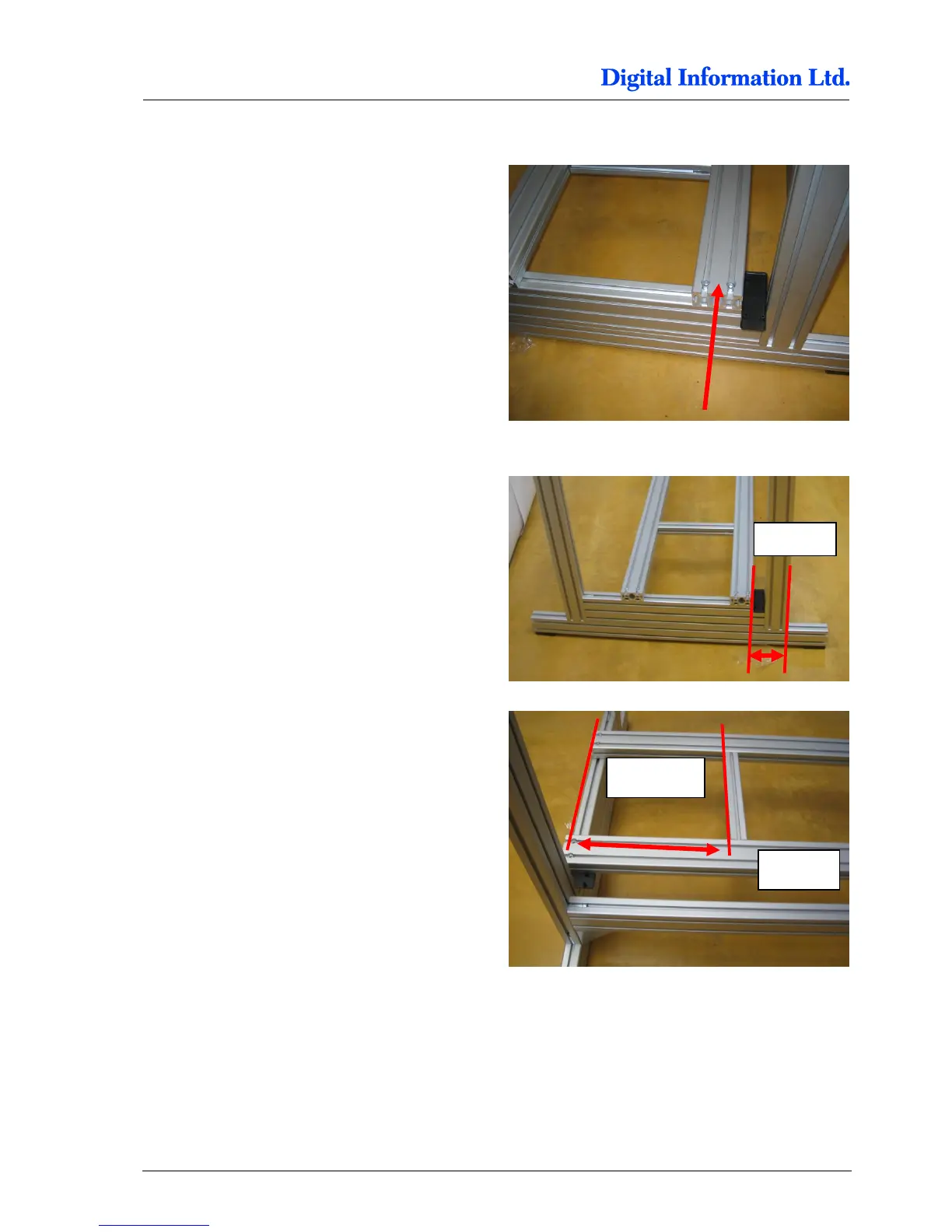

Tighten first the cross beam profile for the back
printer shown on the right.
The distance between the profile Pos 2 and the
cross beam profile Pos 1 is 120mm.
Position the first distance holder (Pos 8, brown
colored, 305 mm) 395 mm from the side frame.
Fix only the screw which goes to the profile labeled
“A”.
120 mm
395 mm
Profile A
