Preproofer 770 - Mount LED Bar Light to Holder; Mount the Holder to Front Printer

9
Paper Guide / Camera System

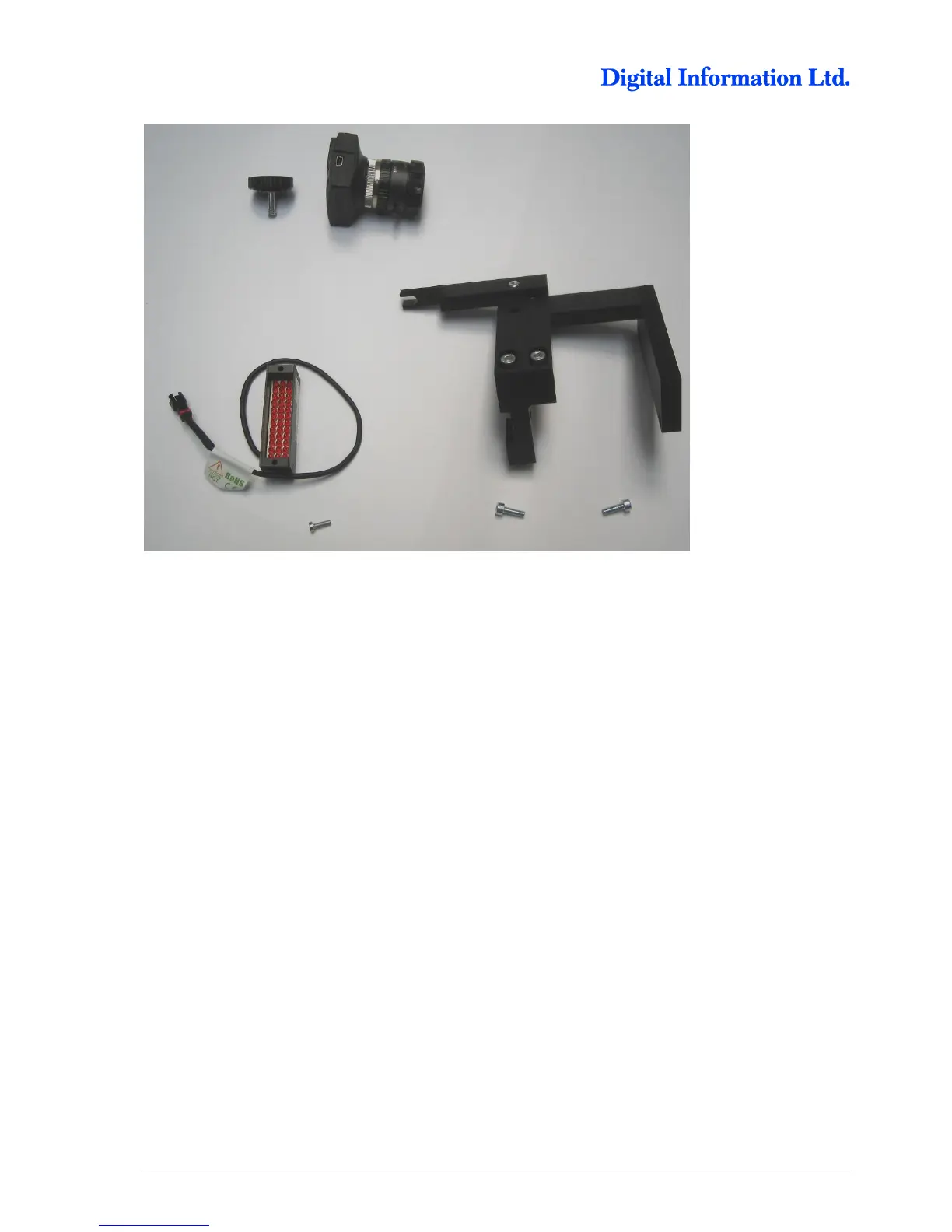

Camera and Bar Light on Front Printer
9-20 Preproofer x700 / x900 – HW Installation Manual
PP x700/x900 v1.7
9.11.2 Mount LED Bar Light to holder
Mount first the LED Bar Light with the M3 x 10
screw to the holder. Place the M4 washer between
the LED Bar Light and the holder.
9.11.3 Mount the holder to Front printer
Use the two M4 x 16 screws to mount the holder to
the front printer. Use the holes from the spectro
scan module on the right hand side.
